User Manual
Page 36 of 88
2. Determine the interface that would be used.
3. You can select an application on the Application drop down list (if
the application needed is present).
4. If the application needed is not present on the dropdown list, you
may have to select Custom Application and enter the preferred
application name on the Custom Application field.
5. Enter the Trigger Port Start and Trigger Port End values and
determine the Trigger Protocol to be implemented.
NOTE: You may have to search for your application’s corresponding
port ranges.
6. Enter the Open Port Start and Open Port End values and determine
the Open Protocol to be implemented.
NOTE: You may have to search for your application’s corresponding
port ranges.
7. Click Save/Apply button to apply changes.

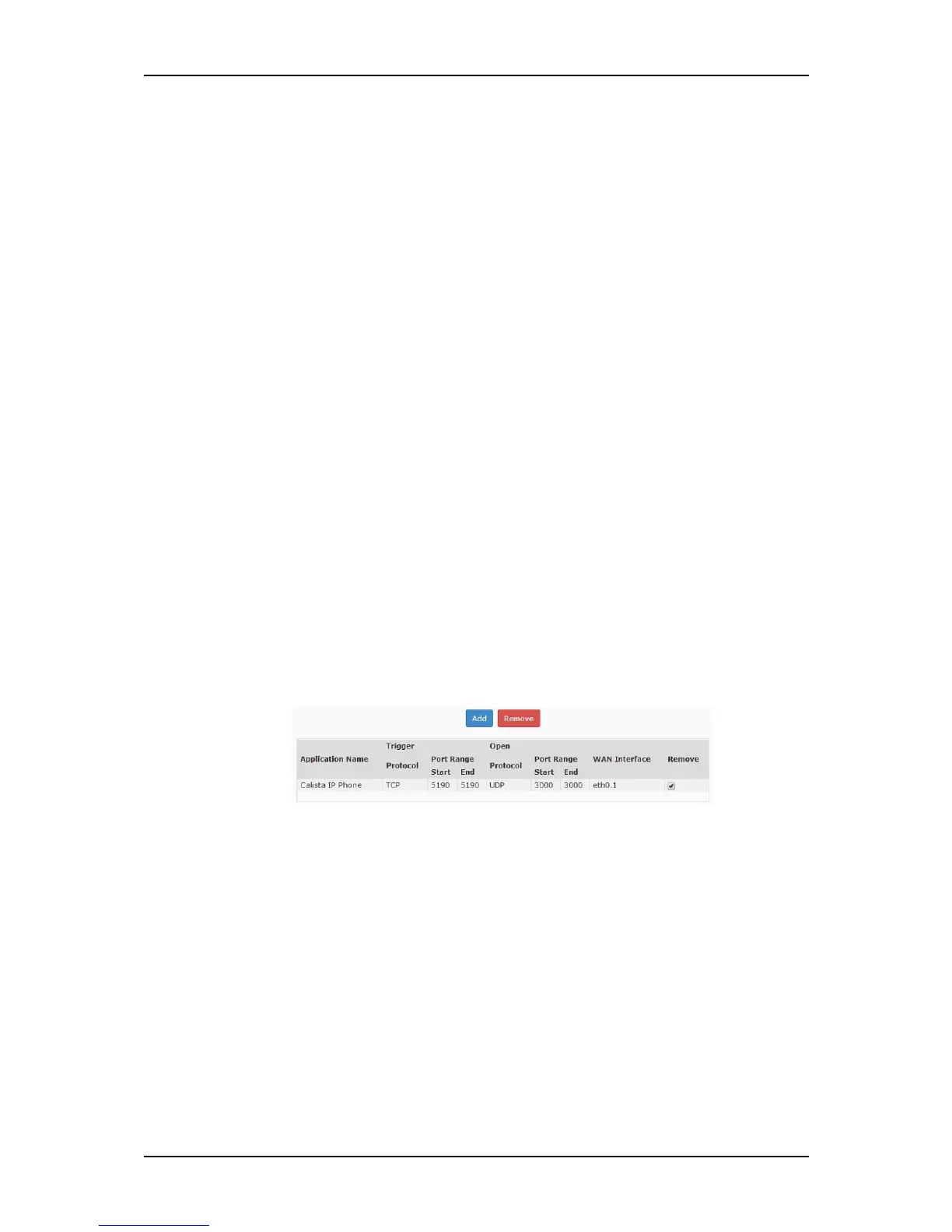

To remove a port trigger:
1. Tick the checkbox of the corresponding application that you wish to
remove.
2. Click Remove to remove the port triggered application.
