User Manual
Page 48 of 88
To remove an Eth WAN interface:
1. Tick the check box of the corresponding interface/s that you
wish to remove.
2. Click the Remove button to remove the selected interface/s.

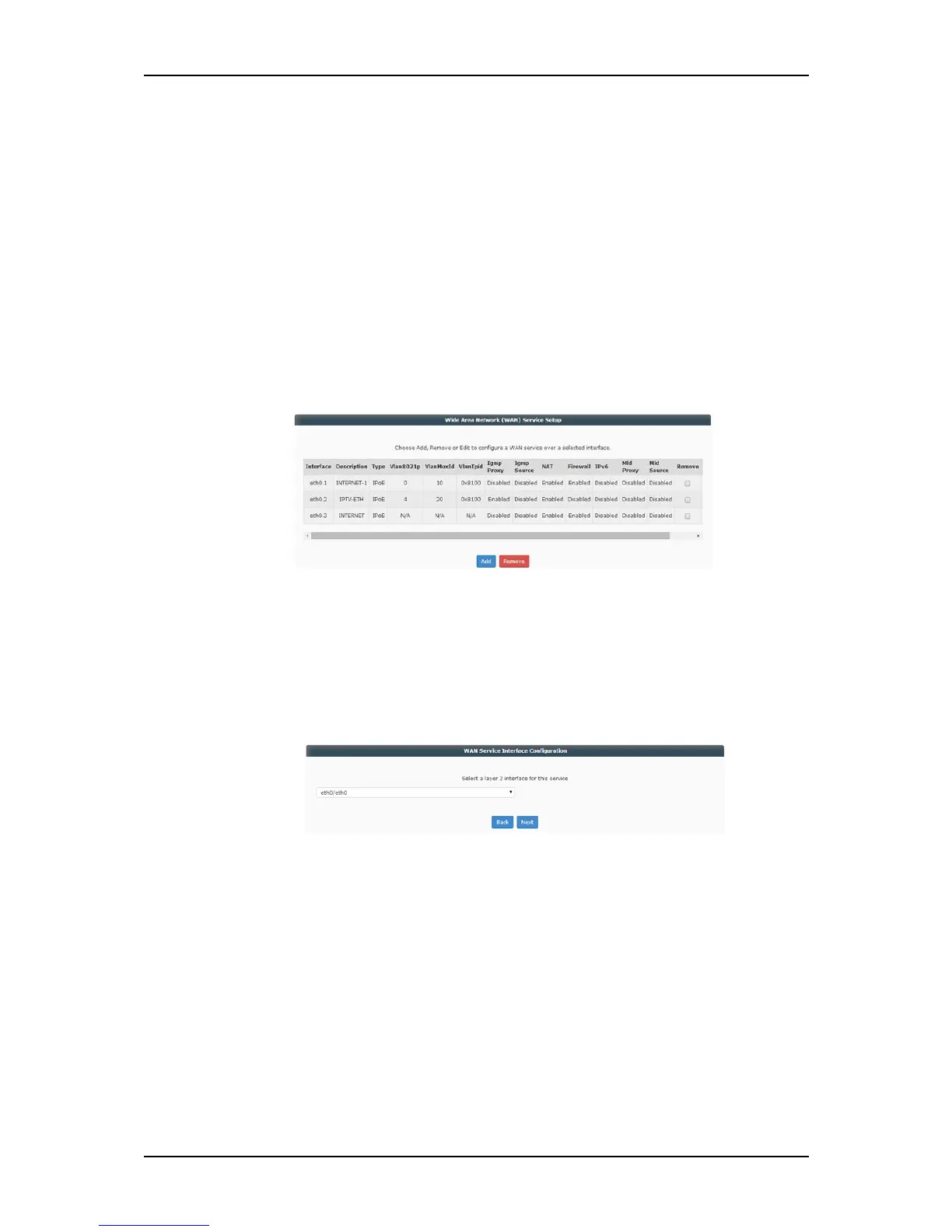

B. WAN. Shows existing WAN interfaces configured on your router. You
have an option to Remove, and Edit WAN interface configurations.
These WAN interfaces may be found useful in Port Triggering, Port
Forwarding, and in other features available in your router.
To add a WAN Interface:
1. Click the Add button.
2. Select an Interface then click Next.
3. Select a WAN Service Type, determine its Service Description,
identify 802.1P Priority and 802.1Q VLAN ID, select a VLAN TPID
and its Network Protocol then click Next.
To Next Page
