Aztech GR7000 User Manual

User Manual
Page 26 of 47
6. Click the Apply button to commit the changes

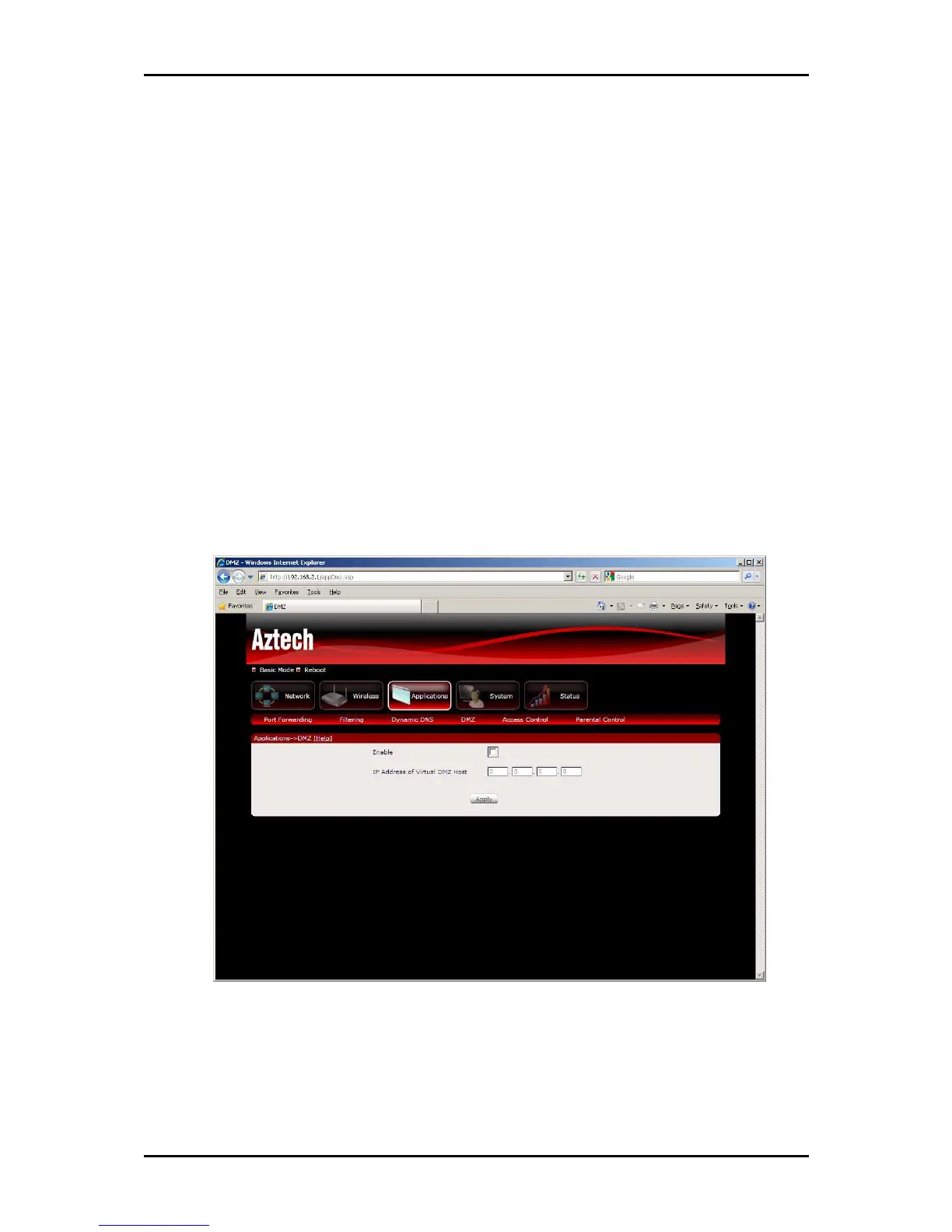

Configuring DMZ
Setup DMZ on your router from this page.
To configure DMZ via the Web GUI:
1. Open your browser
2. Type 192.168.2.1 on the address bar
3. Input admin for both username and password fields and click on Login
4. On the top pane, click Advanced Mode to expand the menu and click
Applications > DMZ
5. Put a check on the Enable tick box to enable DMZ feature
6. Enter the IP address of the host PC you want to setup as DMZ
7. Click the Apply button to commit the changes

Aztech GR7000 Specifications

General

Port forwarding	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Routing protocols	RIP-1, RIP-2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2
3G	No
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi band	-
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Maximum outdoor range	300 m
WLAN data transfer rate (max)	600 Mbit/s
Transmit power	0 dBmW
Product type	Tabletop router
Product color	White
WAN connection type	RJ-45
Output voltage	12 V
Power source type	DC
Number of products included	1 pc(s)
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Minimum processor	233 MHz
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	157 mm
Width	200 mm
Height	32 mm
Weight	440 g
