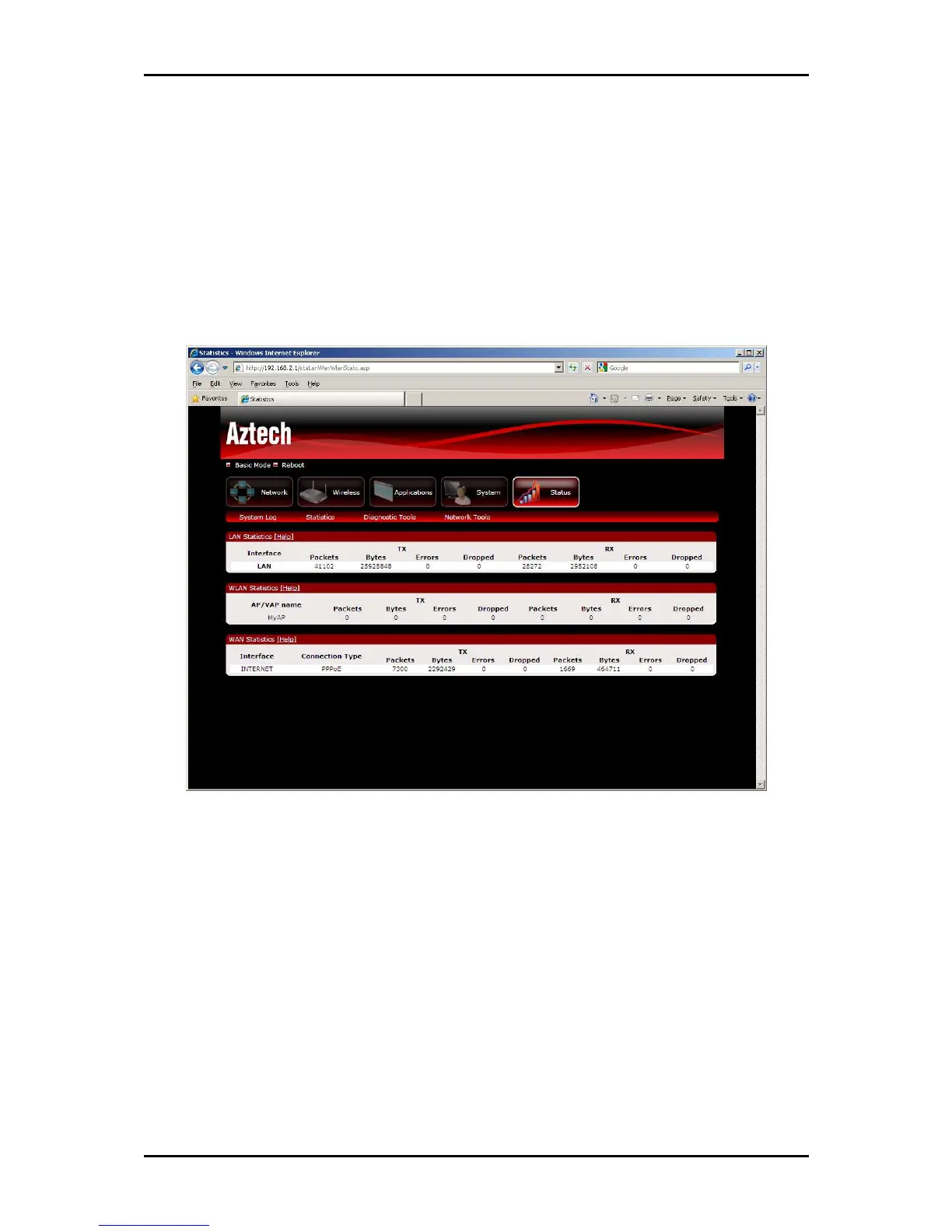

Statistics
This page displays statistics for the Router’s different interfaces such as LAN,
WAN and wireless. The statistics page can show you how much information
has been transferred and received on each interface and whether there are
any errors in communication.
 LAN Statistics – Shows statistics for the LAN interface
 WLAN Statistics – Shows statistics for the wireless interface
 WAN Statistics – Show statistics for the WAN interface

Aztech GR7000 Specifications

General

Port forwarding	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Routing protocols	RIP-1, RIP-2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2
3G	No
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi band	-
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Maximum outdoor range	300 m
WLAN data transfer rate (max)	600 Mbit/s
Transmit power	0 dBmW
Product type	Tabletop router
Product color	White
WAN connection type	RJ-45
Output voltage	12 V
Power source type	DC
Number of products included	1 pc(s)
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Minimum processor	233 MHz
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	157 mm
Width	200 mm
Height	32 mm
Weight	440 g
