Easy Start

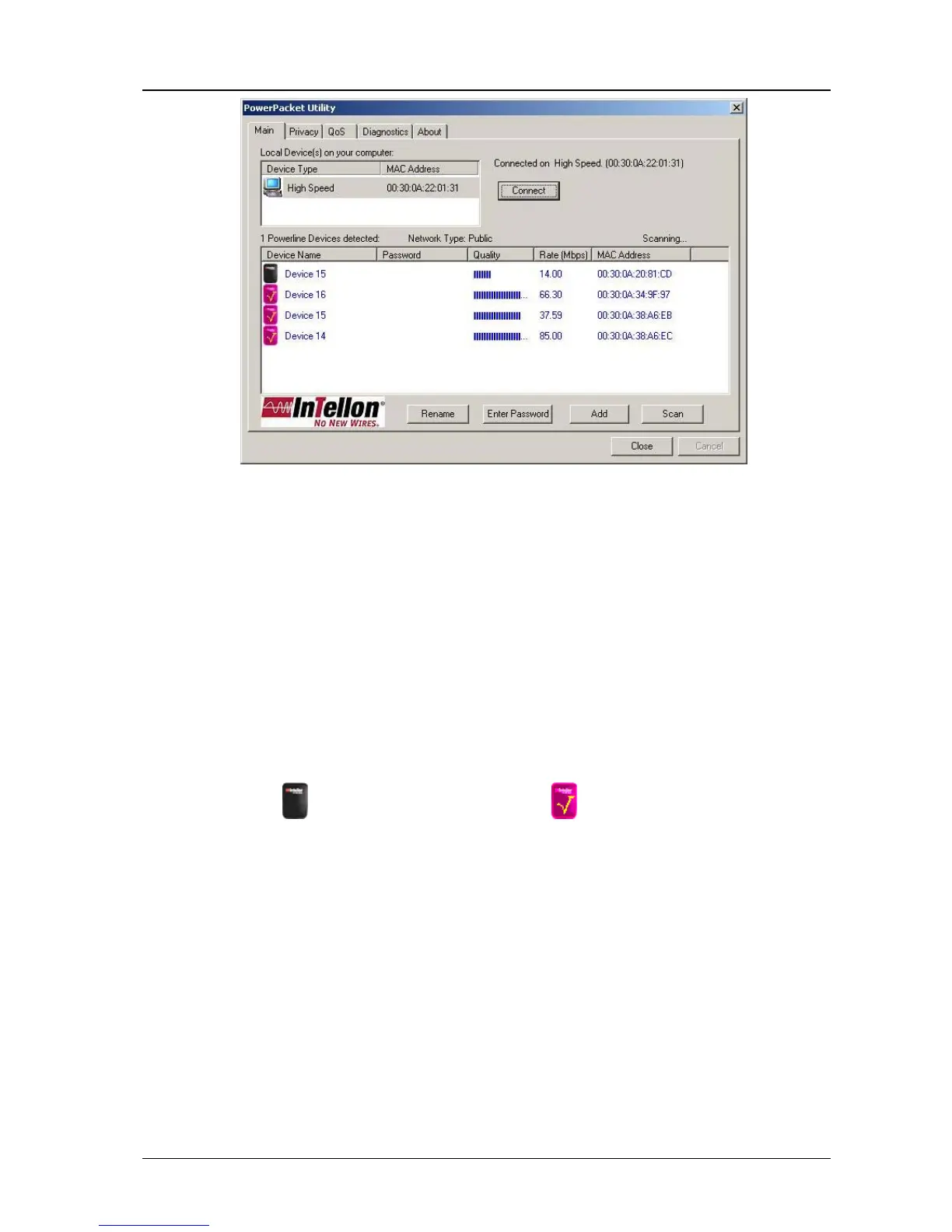

Figure 1-7 : Main Screen
The lower panel displays all the HomePlug devices, discovered on the current logical network
(remote devices). Displayed immediately above this panel is the number of remote devices
found, the type of logical network (Public or Private), and a message area that reports
connectivity and scan status. The following information is displayed for each of the devices
discovered that appear in the lower panel.
The Device Name column shows the default device name, which may be user re-defined. A user
may change the name by clicking on the name and editing in-place, or by using the Rename
button.
An icon is optionally shown with the name. A distinction in icons is made between low-speed
and high-speed devices (HomePlug 1.0 and Turbo). By default, the icon is displayed with the
name.
Easy Start Page 14 of 20
