Easy Start
2.3
Connection & Indicator Lights
The HomePlug Ethernet Adaptor has three lights indicator (LEDs) and an Ethernet port. See
Figure 1-1 below.
ETHERNET
CONNECTION POINT

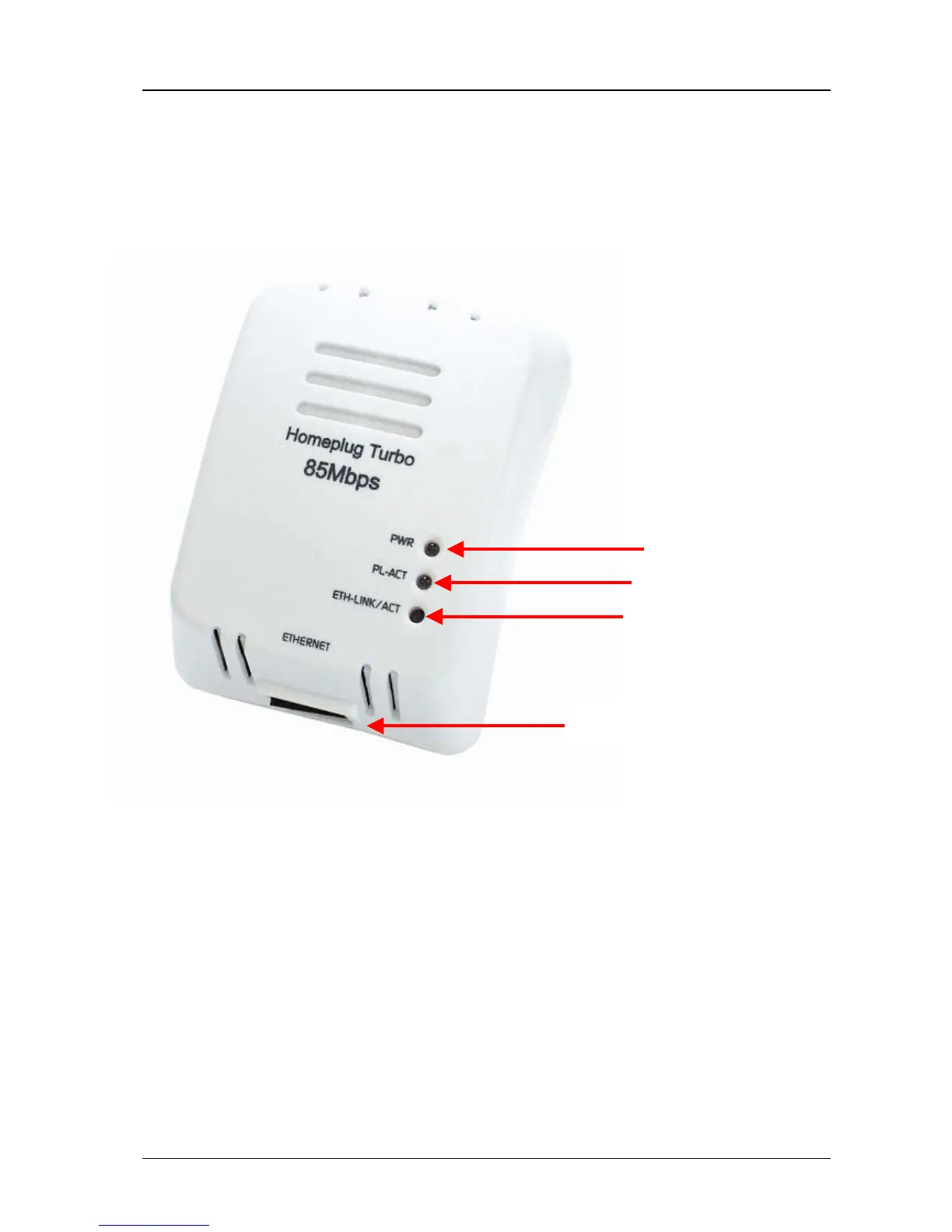

Figure 1-1 : 85Mbps High Speed Homeplug Ethernet Adapter
PWR: Lights up when connected to AC power supply.
PL-ACT: Lights up when detected and connected with another HomePlug adaptor
within the network. Flashes during data transfer.
ETH-LINK/ACT: Lights up when connected to the Ethernet port of the computer or other
Ethernet devices. Flashes during data transfer.
ETHERNET: 10/100 Base-T Auto-MDI/MDIX (allows either cross or straight Network
cable) Network jack to connect to your Ethernet Network card or Ethernet
Hub / Switch.
