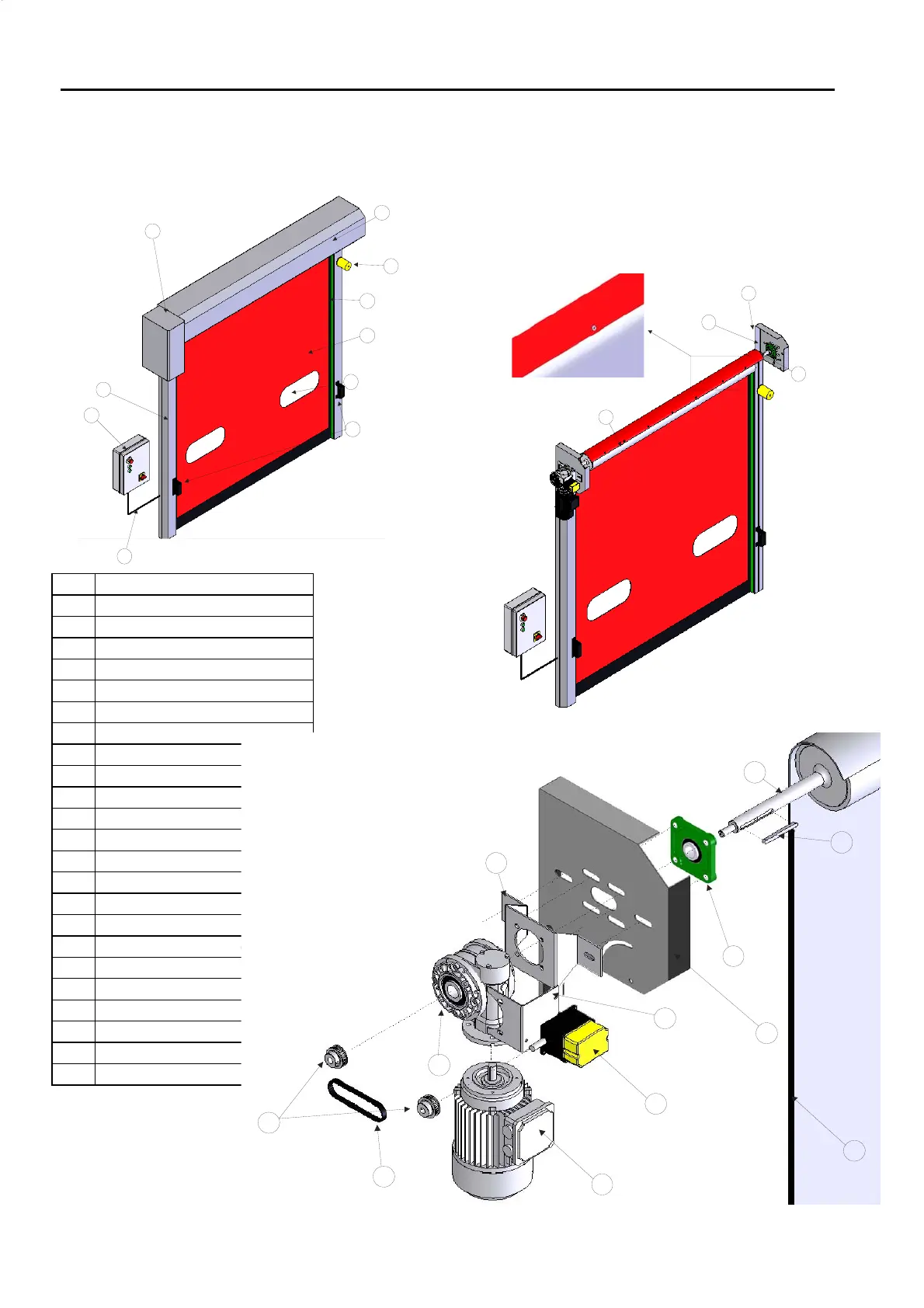

B.M.P. DYNAMICROLL - COMPONENT IDENTIFICATION; SIDE-MOUNTED MOTOR ASSEMBLY

Operating instructions
Use and maintenance manual
- DYNAMICROLL WITH SIDE-MOUNTED MOTOR
1 Photocell
2 Cable
3 Control board
4 Column
5 Crossbar
6 Flashing light
7 Porthole
8 PVC curtain
9 Motor cover
10 Polyzene guides
11 Side plate
12 Ball bearing
13 Shaft
14 Roller tube
15 Pulley
16 Toothed belt
17 Limit switch
18 Limit switch support
19 Adapter
20 400 V three-phase motor
21 Adapter support
22 Key
23 Drive shaft
24 Edge cogged curtain
- DYNAMICROLL WITH FRONTAL MOTOR
DESCRIPTION OF COMPONENT
15
22
16
18
12
11
24
19
21
23
20
17
11
12
13
14
1
3
4
9
5
8
7
2
6
10
