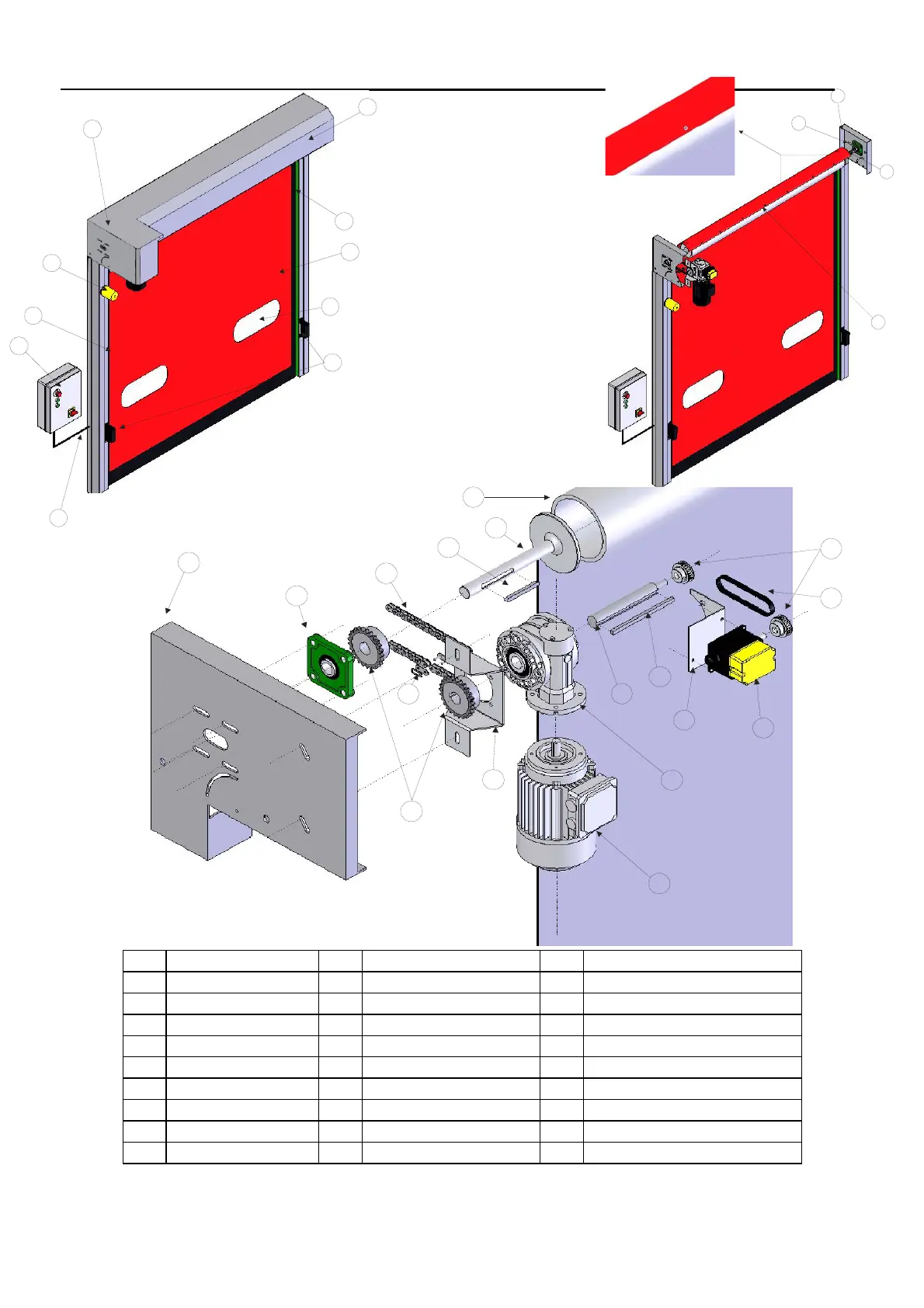

B.M.P. DYNAMICROLL - COMPONENT IDENTIFICATION; EXPLODED VIEWS AND PARTS LIST

Operating instructions
Use and maintenance manual
1 Photocell 11 Side plate 21 Adapter
2 Cable 12 Ball bearing 22 400 V three-phase motor
3 Control board 13 Shaft 23 Adapter support
4 Column 14 Roller tube 24 Cogwheel
5 Crossbar 15 Pulley 25 Chain link
6 Flashing light 16 Toothed belt 26 Chain
7 Pothole 17 Limit switch 27 Key
8 PVC curtain 18 Limit switch support 28 Hub
9 Motor cover 19 Shaft key
10 Polyzene guides 20 Low speed shaft
11
12
13
14
1
3
4
9
6
5
8
7
2
10
11
14
15
16
17
18
19
20
21
22
23
24
25
12
26
27
28
