B-TEC Starter 01 - 2. Technical Description of the Cleaner; External Dimensions and Cleaning Room

Spray-gun cleaner Starter Page 4
equipment and facility engineering

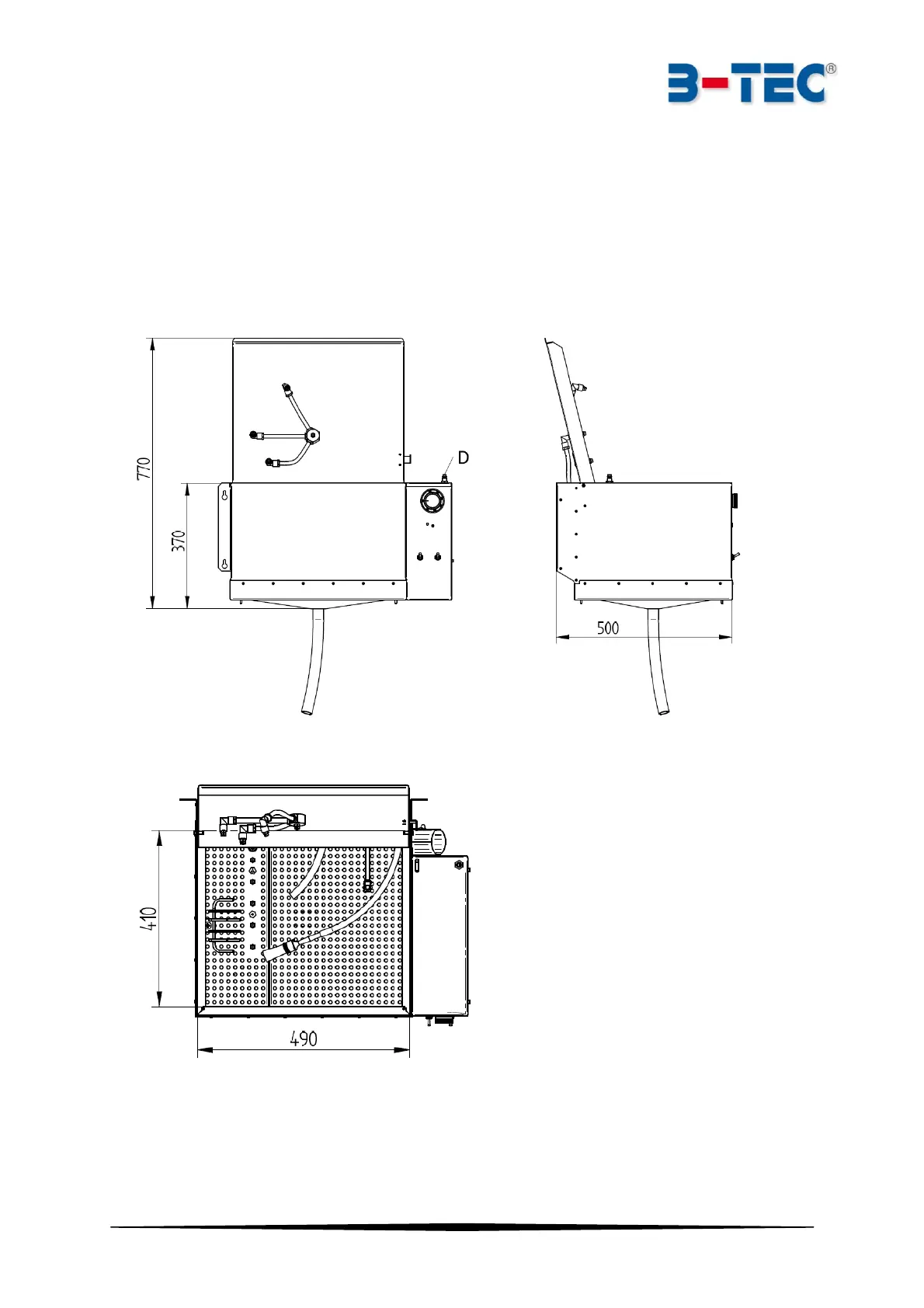

External dimensions Cleaning-room
Width:
670 mm
Width:
490 mm
Depth:
500 mm
Depth:
410 mm
Height:
370 mm (Cover plate closed)
770 mm (Cover plate opened)
Height:
295 mm
- Technical changes and errors reserved. All pictures similar -
