B2 Audio RAGE 1200.2 - Power Terminal; Power Connection

5

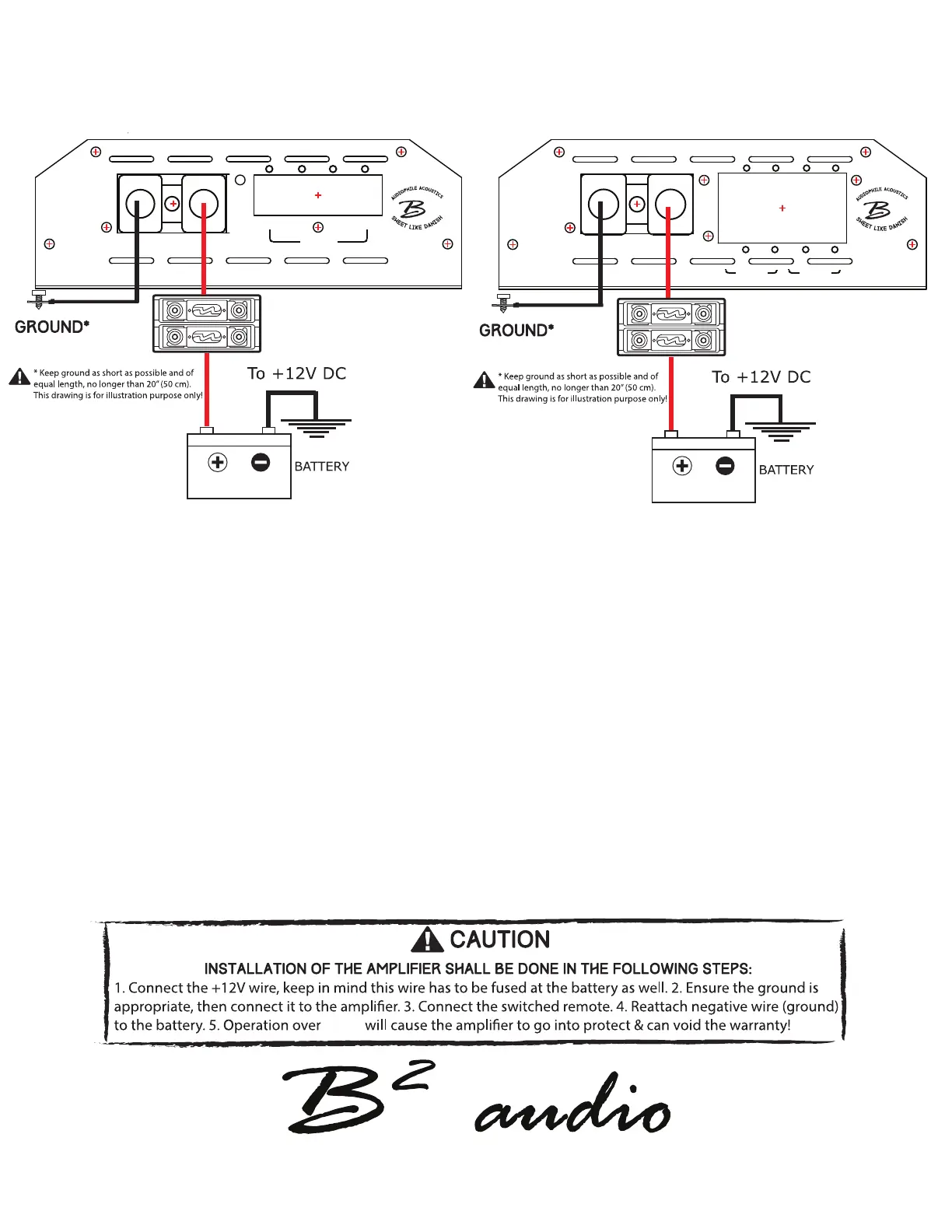

Power terminals
rage 1200.2
power terminal
GND (Ground connection) +12v (Power connection)
Connects to the vehicle’s chassis. Keep as short as Connects to the positivie terminal of the battery.
possible (< 20” / 50 cm). Use minimum 0AWG cable For specied performance 0AWG cable is required.
for optimal operation. Fuses shall be placed within 8” / 20 cm of the battery.
rem (remote connection)
Run a remote turn on cable from the switched +12V source.
This may be a toggle switch, a relay, the source unit's remote ouput cable or power antenna trigger cable.
Connect the remote turn on cable to the power terminal labeled as REM.
100 A fuse rating
17.5V
+12 V
REMGND
L-CH R-CH
-+ -+
BRIDGED
+12 V
REMGND
1CH 2CH
+ -
3CH 4CH
+ -
1CH 2CH
- +
3CH 4CH
- +
BRIDGED BRIDGED
rage 1200.4
100 A fuse rating
