sPeaker connection
rage 1200.2
17.5V
+12 V
REMGND
L-CH R-CH
-+ -+
BRIDGED
+12 V
REMGND
1CH 2CH
+ -
3CH 4CH
+ -
1CH 2CH
- +
3CH 4CH
- +
BRIDGED BRIDGED
rage 1200.4
We recommend using minumum10 Ga speaker cables to acquire the intended performance & eciency.
Run the speaker cables from your speakers to the amplier’s mounting location.
Ensure these are ran separately and away from high current cables and if possible the RCA cables as well.
In all cases where cables are penetrating the vechile’s chassis use grommets to protect the cable.
Connect the speaker wires according to the terminals on the speaker(s). Strip 3/8’’ / 1 cm of insulation of the end of
each cable and twist the cable strands together tightly. Make sure there are no stray strands that could touch other
cables or terminals as it can cause a short circut.
Crimp spade plugs over the end of the cable or tin the ends with solder to provide a solid terminal.

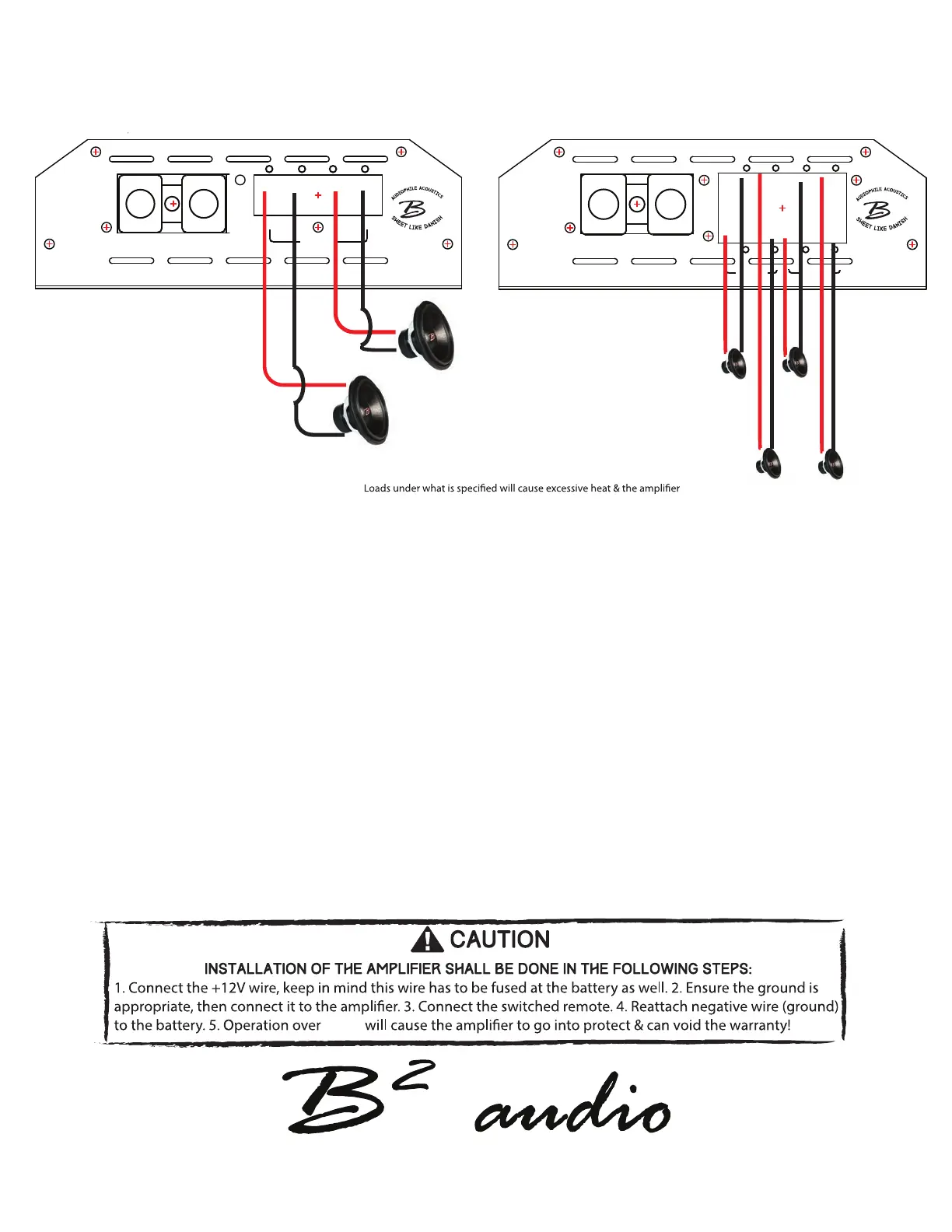

Connect the cable ends to the amplier as shown in the diagram. Bridged speaker connection will add the channels
together. The 2 ch amplifer will then be a single channel, the 4 ch amplier will then be a 2 channel. However you can
congure the 4 ch to have 3 channels. This setup can be used for a set of front speakers and a mid -/subwoofer.
Bridged speaker connection impedance is 4 ohm only !
Speaker impedance 2 Ohm ~ 8 Ohm
will reach thermal at a faster rate & will eventually go into protect.
Impedance load under 2 ohm is not warranted!
