B2 Audio RAGE 1200.2 - Page 8

8
40 500
400 5K
x10
x1
POWER
PROTECT
20 1K
HPF
LPF
5V
0.2V
GAIN
HPF-FULL-LPF
CLIP
INPUT OUT
L
R
GAIN
HPF
GAIN
POWER
PROTECT
40 500
400 5K
40 500
400 5K
x10
x1
x10
x1
HPF
LPF
LPF
5V
0.2V
5V
0.2V
HPF-FULL-LPF
HPF-FULL-LPF
CLIP
CH.1&2
CH.3&4
CH.1 CH.2
CH.3 CH.4
20 1K
20 1K

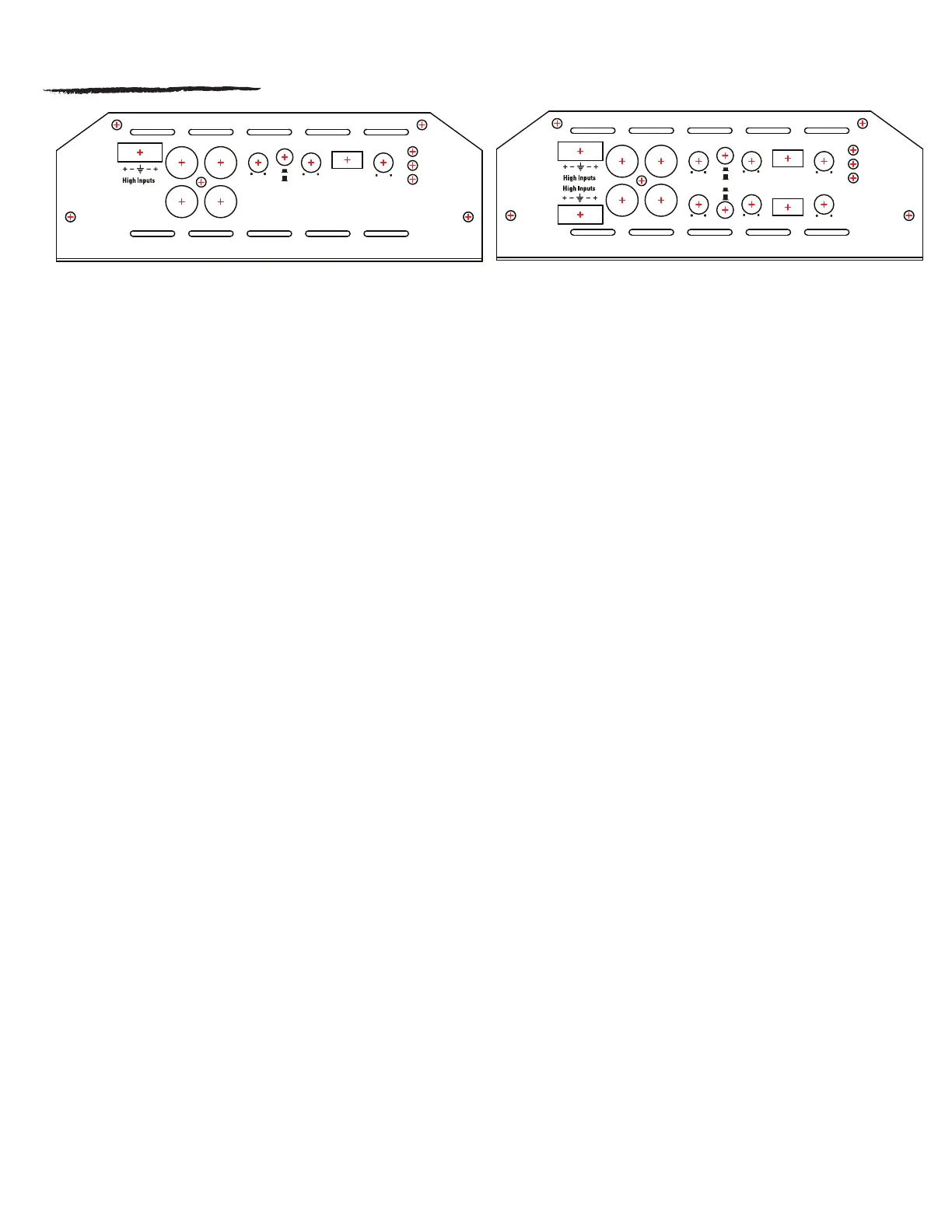

rage 1200.2 rage 1200.4
accu8 crossover
.
The low pass crossover & high pass crossover are 24 dB / oct. Setting it at 80 Hz will then have the signal cut off with 24
dB at 40 Hz (1 octave). To ensure accuracy for the individual crossover frequency the pot feature 41 clicks, each with a
corresponding frequency. The chart below is an overview of the clicks.
CLick settings for LPF & HPF
LPF hpf LPF hpf LPF hpf
1. 21 Hz - 38 Hz 15. 45 Hz - 70 Hz 29. 206 Hz - 220 Hz
2. 22 Hz - 39 Hz 16. 51 Hz - 75 Hz 30. 225 Hz - 240 Hz
3. 23 Hz - 40 Hz 17. 60 Hz - 86 Hz 31. 245 Hz - 260 Hz
4. 24 Hz - 41 Hz 18. 70 Hz - 100 Hz 32. 270 Hz - 280 Hz
5. 25 Hz - 42 Hz 19. 83 Hz - 115 Hz 33. 330 Hz - 300 Hz
6. 26 Hz - 43 Hz 20. 105 Hz - 135 Hz 34. 342 Hz - 305 Hz
7. 27 Hz - 44 Hz 21. 110 Hz - 146 Hz 35. 355 Hz - 310 Hz
8. 28 Hz - 45 Hz 22. 117 Hz - 150 Hz 36. 370 Hz - 320 Hz
9. 29 Hz - 46 Hz 23. 125 Hz - 155 Hz 37. 400 Hz - 340 Hz
10. 30 Hz - 47 Hz 24. 132 Hz - 162 Hz 38. 500 Hz - 370 Hz
11. 31 Hz - 48 Hz 25. 140 Hz - 170 Hz 39. 650 Hz - 400 Hz
12. 34 Hz - 51 Hz 26. 154 Hz - 180 Hz 40. 800 Hz - 450 Hz 240 Hz - 900 dB
13. 37 Hz - 55 Hz 27. 170 Hz - 190 Hz 41. 1 KHz - 500 Hz
14. 40 Hz - 60 Hz 28. 190 Hz - 205 Hz
