12

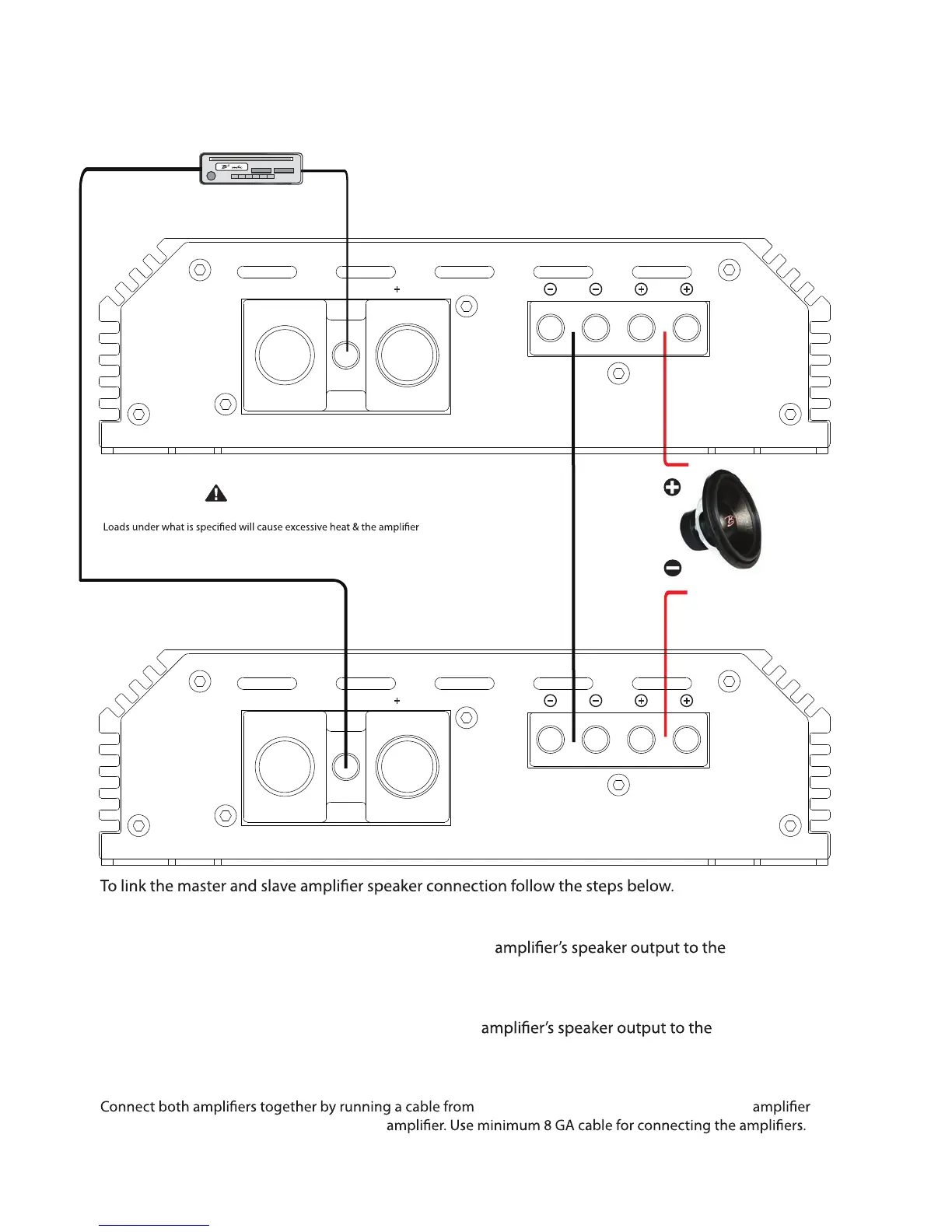

Strapped speaker connection
rage2500.1
GND REM
12V
P OWER S PEAKER
GND REM
12V
P OWER S PEAKER
master amplifier
slave amplifier
Speaker impedance 2 Ohm ~ 16 Ohm
will reach thermal at a faster rate & will eventually go into protect.
Strapped impedance load under 2 ohm is not warranted!
step 1.
Run the
positive (+) speaker cable from the master
positive terminal (+) of the subwoofer.
step 2.
Run the positive (+) speaker cable from the slave
negative terminal (-) of the subwoofer.
Step 3.
negative speaker output on master
to negative speaker output on slave
