B2 Audio RAGE SERIES - RAGE1200.6 Power & Speaker Terminals; LED Indicators and Speaker Output Terminals

7

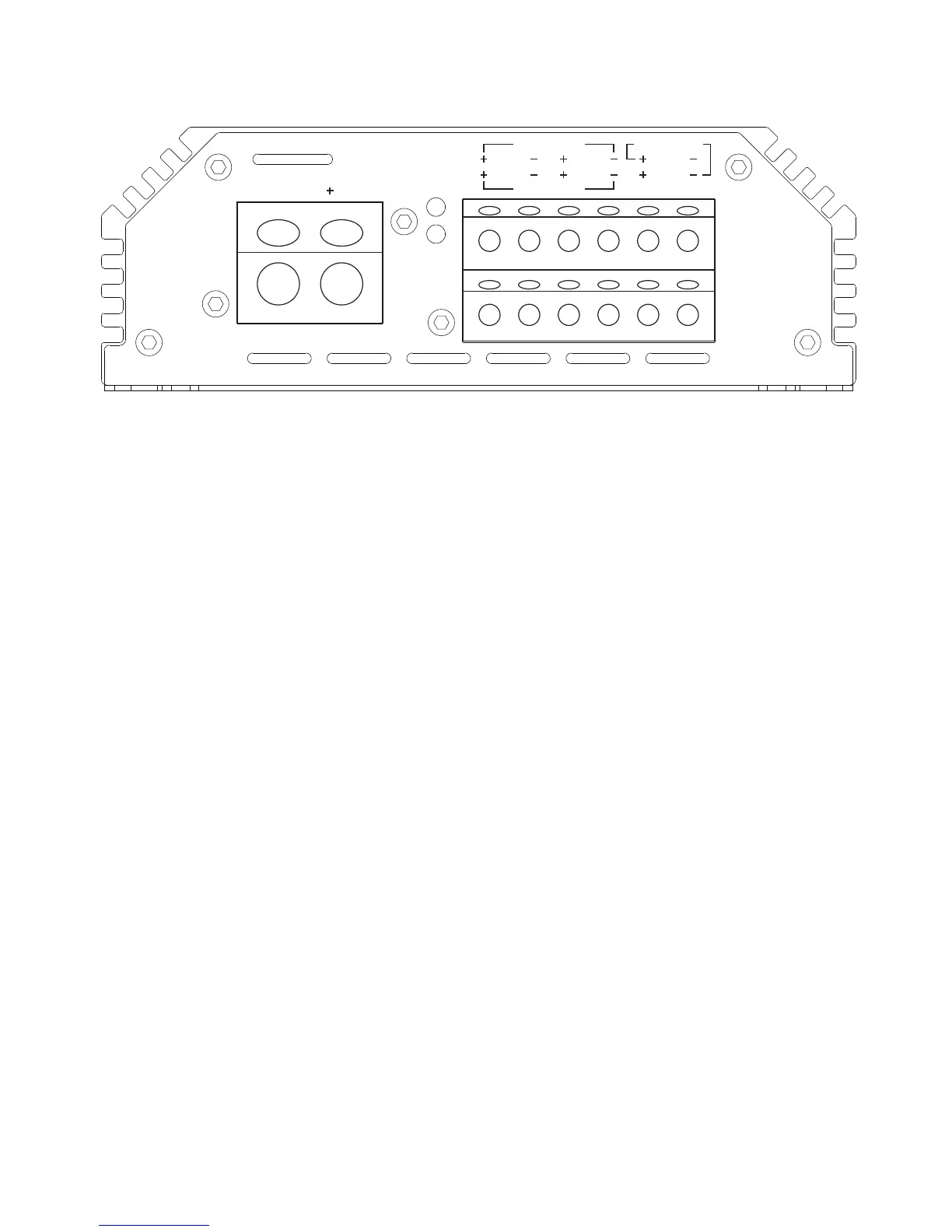

P0wer & speaker terminal
rage1200.6
GND 12V
POWER
PWR
PRO
CH1
CH3
CH2
CH4
CH5
CH6
BRIDGED
BRIDGED
BRIDGED
SPEAKER
gnd pro led
onnects to the vehicle’s chassis. Keep as short as Amplier has gone into protect mode.
possible (< 20” / 50 cm). Use minimum 4AWG cable The malfunction could be caused by speaker short,
optimal operation. thermal protect, faulty connection or general errors.
rem
Connects to +12V switched remote from the headunit. speaker output terminals
It can also use switched +12V source for external units. Connects to the speakers pos & neg terminals.
If several units are installed in the car, it can be wise with Use a 12AWG cable for optimal performance.
a relay to ensure sucient voltage is present. The RAGE 1200.6 is stable to 4 ohm bridge or 2 ohm stereo.
Bridge mode is enabled by connecting the speaker cables
+12 (power connection) to the terminals indicated on the illustration above.
Connects to the positivie terminal of the battery.
For specied performance 4AWG cable is required.
Fuses shall be placed within 8” / 20 cm of the battery.
pwr led
Shows the amplifer is connected to both +12V power and
is grounded at the same time.
