B2 Audio RAGE SERIES - Page 8

8

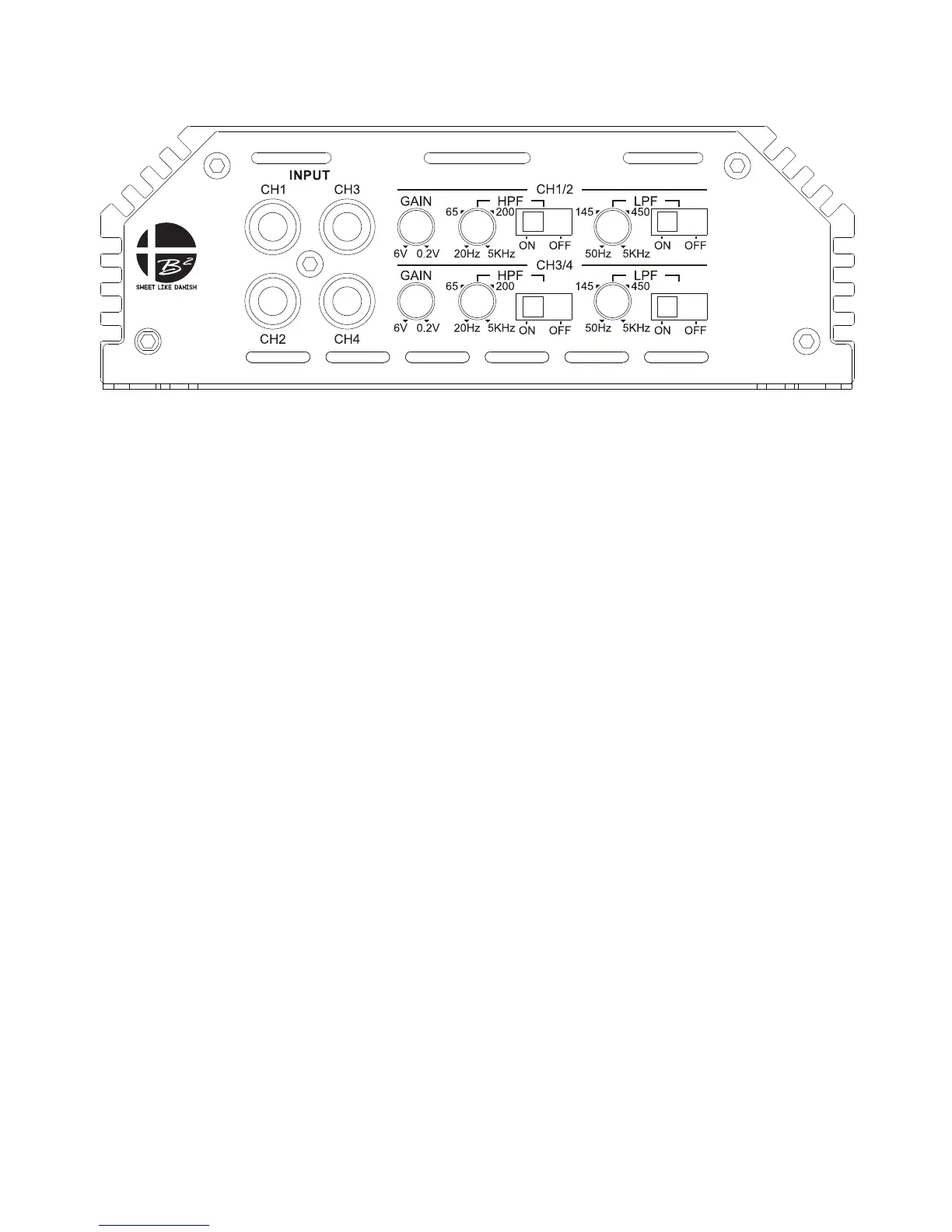

Panel layout
rage600.4
INPUT CH1~CH4 Gain (6v~0.2v) CH3/4
RCA signal input for left & right on channel specied. Adjusts signal input voltage from the input source
A minimum of 0.2V input signal is required for correct to match the ampliers input stage. 0.2V ~ 6V is the
operation. operational voltage. Voltages beyond may cause errors
or damage to the input section. All adjustments apply to
channel 3 & 4.
Gain (6v~0.2v) CH1/2 hPF
Adjusts signal input voltage from the input source See the description on the left side of the page.
to match the ampliers input stage. 0.2V ~ 6V is the
operational voltage. Voltages beyond may cause errors LPF
or damage to the input section. All adjustments apply to See the description on the left side of the page.
channel 1 & 2.
bpf
hpf
See the description on the left side of the page.
Adjusts the high pass crossover point to lter out audio
with a 24 dB slope from the given selection on ch 1 & 2.
The switch selection sets the HPF in active or inactive.
If in ON mode frequencies below the setting will be cut
with 24 dB per octave. OFF setting is full range signal.
lpf
Adjusts the low pass crossover point to lter out audio
with a 24 dB slope from the given selection on ch 1 & 2.
If in ON mode frequencies above the setting will be cut
with 24 dB per octave. OFF setting is full range signal.
bpf
Adjusts the band pass crossover point to lter out audio
with a 24 dB slope from the given selection on ch 1 & 2.
If in ON mode frequencies above & below the setting will
be cut with 24 dB per octave. To use the BPF both HPF
ON and LPF ON needs to be selected.
