B2 Audio RAGE SERIES - RAGE600.4 Power & Speaker Terminals; Ground and Power Connections; Indicator LEDs and Speaker Output Terminals

9

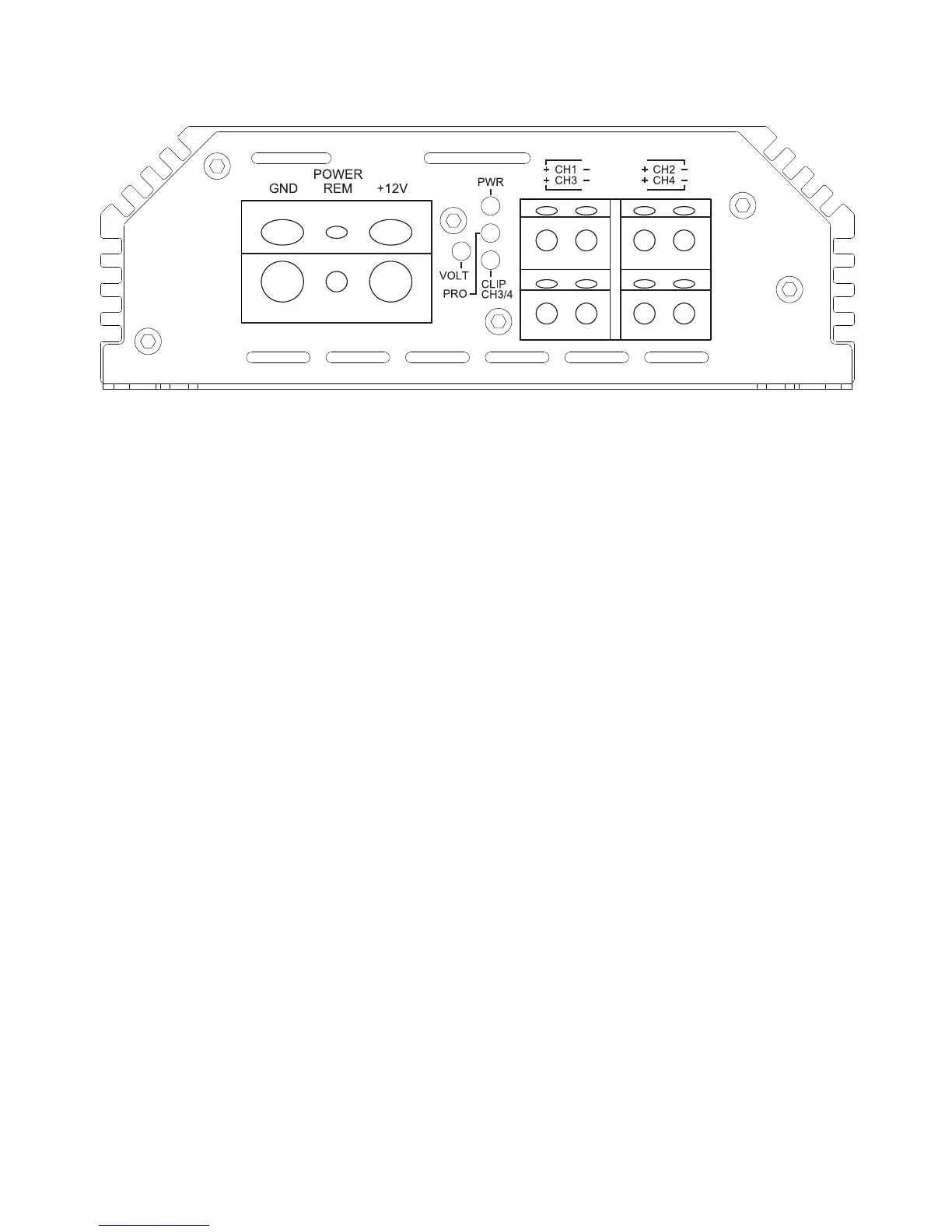

Power & speaker terminal
rage600.4
gnd pro led
onnects to the vehicle’s chassis. Keep as short as Amplier has gone into protect mode.
possible (< 20” / 50 cm). Use minimum 4AWG cable The malfunction could be caused by speaker short,
optimal operation. thermal protect, faulty connection or general errors.
rem clip led (active on ch 3/4)
Connects to +12V switched remote from the headunit. Flashing led indicates signal is clipped on ch 3 and ch 4.
It can also use switched +12V source for external units. Set gains in accordance, so clip indicator is only ashing
If several units are installed in the car, it can be wise with at absolute peak levels.
a relay to ensure sucient voltage is present.
speaker output terminals
+12 (power connection)
Connects to the speakers pos & neg terminals.
Connects to the positivie terminal of the battery. Use a 12AWG cable for optimal performance.
For specied performance 4AWG cable is required. The RAGE 600.4 is stable to 4 ohm bridge or 2 ohm stereo.
Fuses shall be placed within 8” / 20 cm of the battery. Bridge mode is enabled by connecting the speaker cables
to the terminals indicated on the illustration above.
volt led indicator
Flashing led indicates power supply voltage is below
recommended to achieve the ampliers rated performance.
Continious negligence of the indicator can cause damage to
your sound system & reduced performance.
pwr led
Shows the amplifer is connected to both +12V power and
is grounded at the same time.
SPEAKER
BRIDGED
BRIDGED
