4

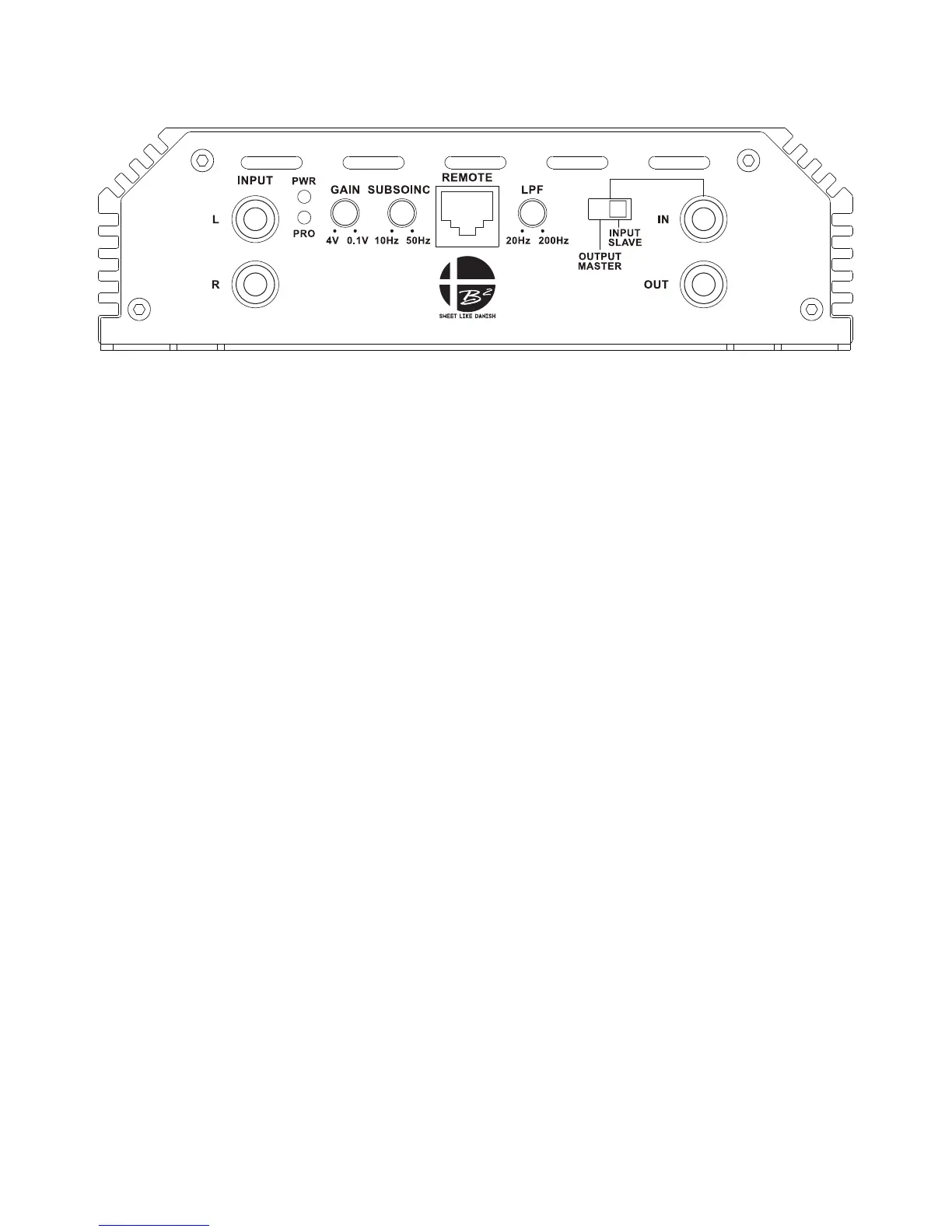

Panel layout
rage2500.1
INPUT REMOTE LEVEL CONTROL PORT
RCA signal input for left & right channel. Connection of external signal level control.
A minimum of 0.1V input signal is required for correct CAUTION, the amplier needs to be gained in accordance
operation. Using only 1 input will minimize input signal with the remote to avoid excessive signal boost.
and amplier will need to be gained as such.
POWER & PROTECTION INDICATOR LPF (LOW PASS FILTER 20 Hz ~200 Hz, 24 dB/oct)
Power LED, blue light shows correct operation, Adjusts the cut o point for the low pass crossover
Protect LED, red light shows general malfunction, faulty at the frequency chosen.
connection or thermal protection.
output master / input slave
GAIN (4V~0.1v)
Used for linking / strapping the amplier to another unit
Adjusts signal input voltage from the input source to achieve twice the amount of power.
to match the ampliers input stage. When set in output master, this unit will be sending the
0.1 V ~ 4 V is the operational voltage. signal to the slave unit, that will have the switch set to
Voltages beyond may cause errors or damage to the input slave with the rca connected to the input.
input section.
SUBSONIC
Variable subsonic setting from 10 Hz to 50 Hz.
It is highly recommended to set it according to the tuning
of your subwoofer enclosure to avoid unnecessary strain to
your sound system.
