B2 Audio RAGE SERIES - RAGE2500.1 Power & Speaker Terminals; Speaker Terminal Connections; Critical Installation Caution

5
Power & speaker terminal
rage2500.1
power terminal
GND (Ground connection) +12v (Power connection)
Connects to the vehicle’s chassis. Keep as short as Connects to the positivie terminal of the battery.
possible (< 20” / 50 cm). Use minimum 0AWG cable For specied performance 0AWG cable is required.
for optimal operation. Fuses shall be placed within 8” / 20 cm of the battery.
rem speaker terminal
Connects to +12V switched remote from the headunit. Connects to the speakers negative and positive terminal.
It can also use switched +12V source for external units. Use minimum 12 AWG speaker cable. The terminals are
If several units are installed in the car, it can be wise with bridged internally. The dual terminals are there to make
a relay to ensure sucient voltage is present. connections easier.

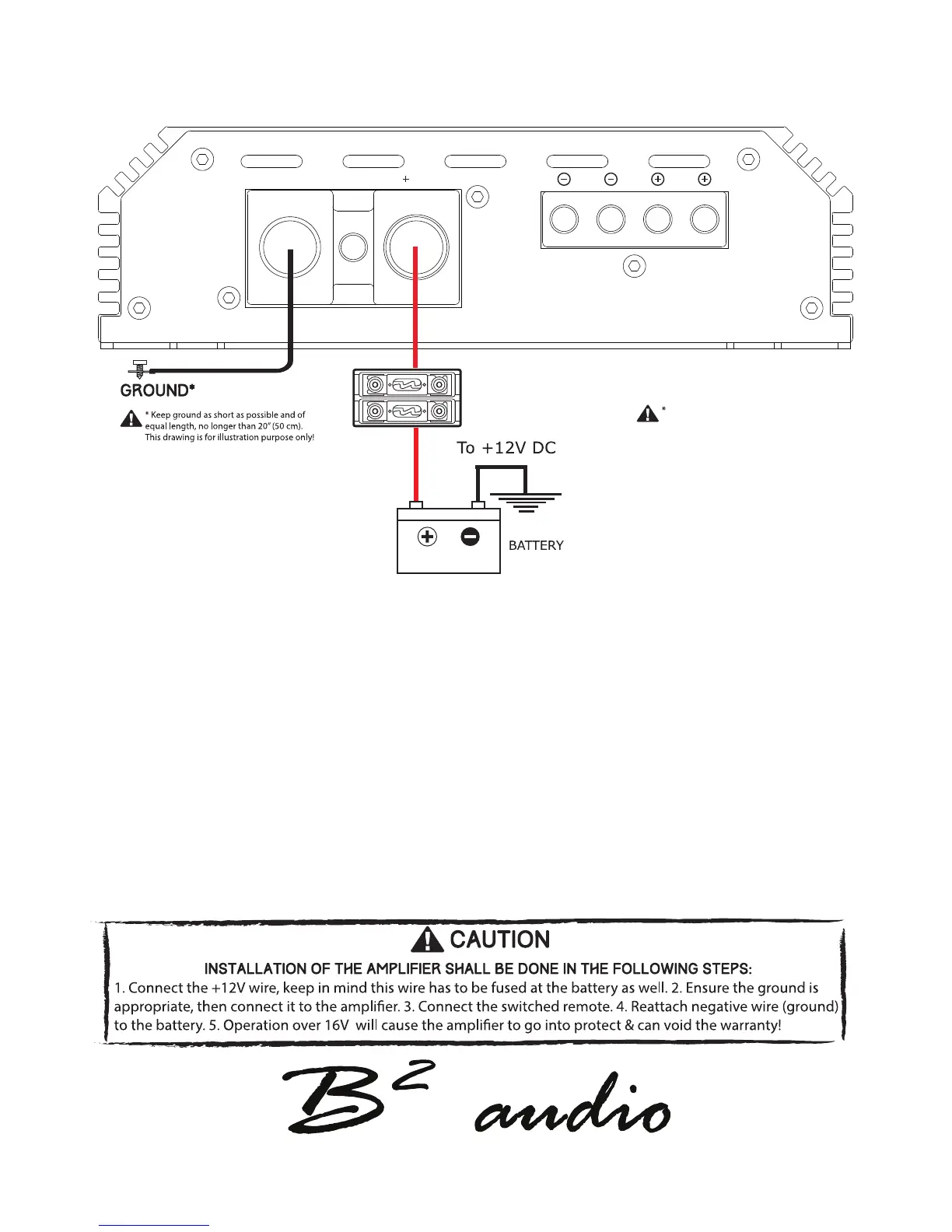

GND REM
12V
P OWER S PEAKER
Keep ground as short as possible and as use the
adequate AWG to achieve optimal performance.
The minimum ohm load is 1 ohm. In strapped mode,
the ohm load is 2 ohm.
