Design features
Circuit Configuration: HI-EF Class D hi-ef Class D
Frequency Response: 10 Hz ~ 300 Hz 10 Hz ~ 300 hz
Signal to Noise Ratio: > 95 dB > 95 db
Input Sensitivity: 5 V ~ 0.2 V 5 v ~ 0.2 v
Crossover Circuit:
35 Hz ~ 250 Hz 35 Hz ~ 250 Hz
18 dB / Oct 18 db / oct
Low Pass Crossover:
subsonic crossover: 10 Hz ~ 50 Hz 10 Hz ~ 50 Hz
Damping factor: 400 400
bass boost (45 hz): 0 ~ 9 db 0 ~ 9 db
phase: 0 ~ 180° 0 ~ 180°
remote w/ clip indicator: included included
Power input Terminal Gauge: 0 ga x 3 0 ga x 4
fuse rating: 600 A 850 A
dimensions: 19.68” x 12.4” x 2.95” 23.62” x 12.4” x 2.95”
Dimensions: 500 x 315 x 75 mm 600 x 315 x 75 mm
Continious output power (RMS)
The Falcon
12 v < 1% tHD 13.8 v < 1% THD 14.4 v < 1% THD 16 v < 1% THD
OUTPUT POWER @ 4 Ω: 1500 W 2000 W 2300 W 2500 W
OUTPUT POWER @ 2 Ω
: 2500 W 3200 W 3600 W 3800 W
OUTPUT Power @ 1 Ω
: 3500 W 5000 W 5500 W 5800 W

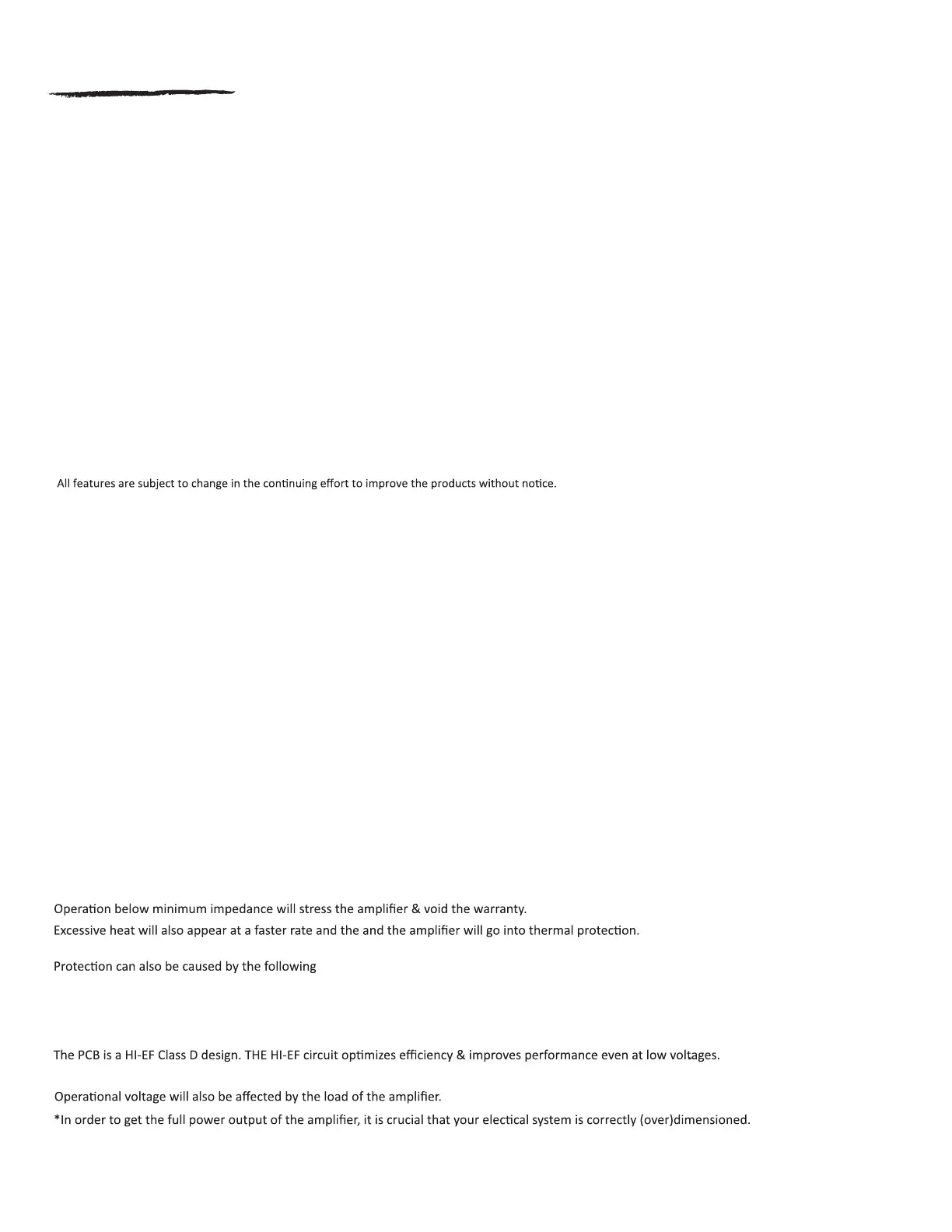

Description of specifications
* Speaker overload
* Short circuit
* Input Voltage - RCA & Power Supply
3
Zero Five / The Falcon Zero 8 / The Osprey
Continious output power (RMS)
The Osprey
12 v < 1% tHD 13.8 v < 1% THD 14.4 v < 1% THD 16 v < 1% THD
OUTPUT POWER @ 4 Ω: 2200 W 3000 W 3400 W 3500 W
OUTPUT POWER @ 2 Ω
: 3800 W 5500 W 5900 W 6000 W
OUTPUT Power @ 1 Ω
: 6000 W 8000 W 8500 W 9000 W
Operational voltage 9 V ~16 V. 18 V models can be modied upon request, but with a limited warranty.
