Power terminals
power terminal
GND (Ground connection) +12v (Power connection)
Connects to the vehicle’s chassis. Keep as short as Connects to the positivie terminal of the battery.
possible (< 20” / 50 cm). Use minimum 0AWG cable For specied performance 0AWG cable is required.
for optimal operation. Fuses shall be placed within 8” / 20 cm of the battery.
1200 A fuse rating

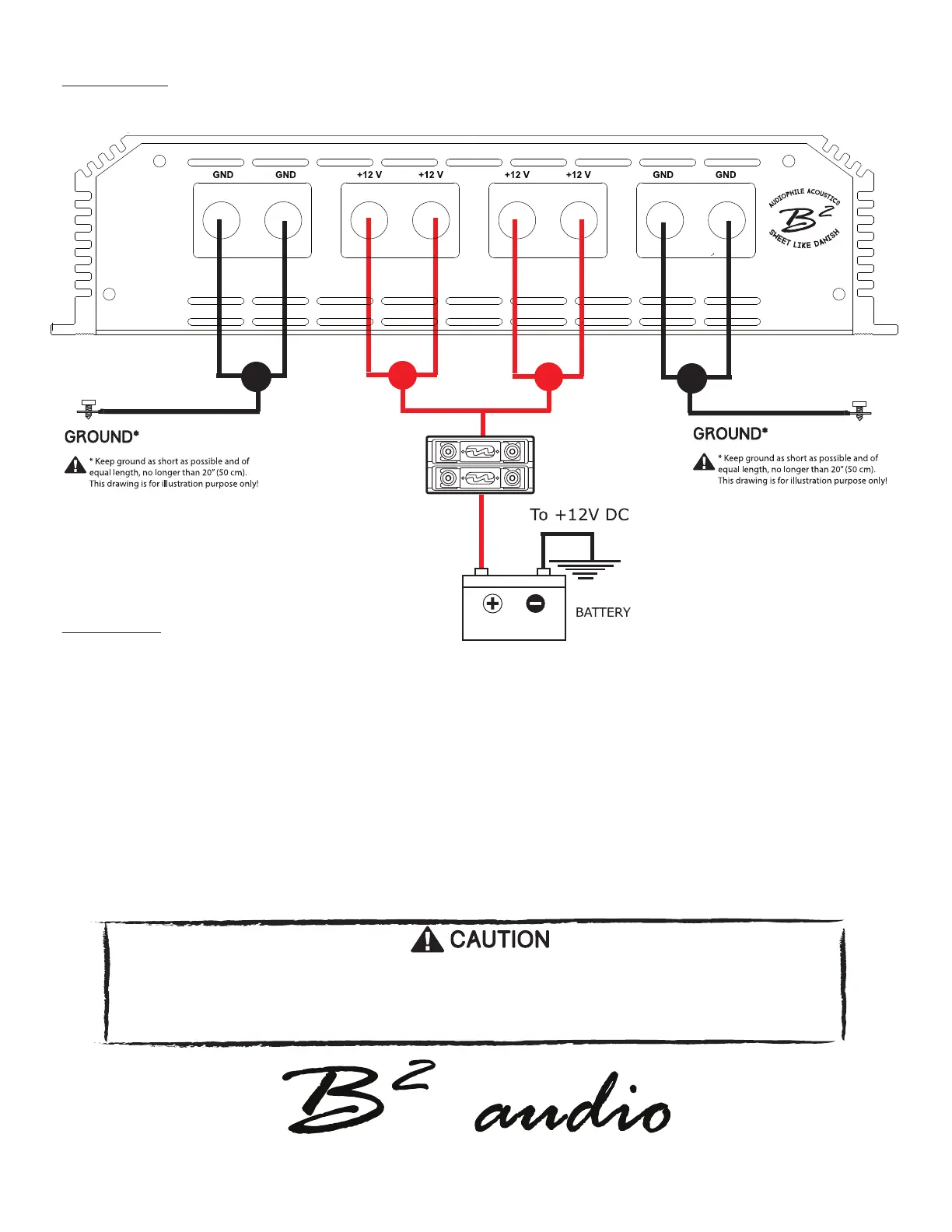

Connect the +12V wire, keeping in mind that this wire must be fused at the battery as well. Ensure the ground is appropriate,
then connect it to the amplifier. Connect the switched remote. Reattach the negative wire (ground) to the battery. Operation
over 17.5 volts will cause the amplifier to go into protect mode and can void the warranty.
