7
speaker connection
CAUTION
We recommend using minumum 8 Ga speaker cables to acquire the intended performance & eciency.
Run the speaker cables from your speakers to the amplier’s mounting location.
Ensure these are ran separately and away from high current cables and if possible the RCA cables as well.
In all cases where cables are penetrating the vechile’s chassis use grommets to protect the cable.
Connect the speaker wires according to the terminals on the speaker(s). Strip 3/8’’ / 1 cm of insulation of the end of
each cable and twist the cable strands together tightly. Make sure there are no stray strands that could touch other
cables or terminals as it can cause a short circut.
Crimp spade plugs over the end of the cable or tin the ends with solder to provide a solid terminal.

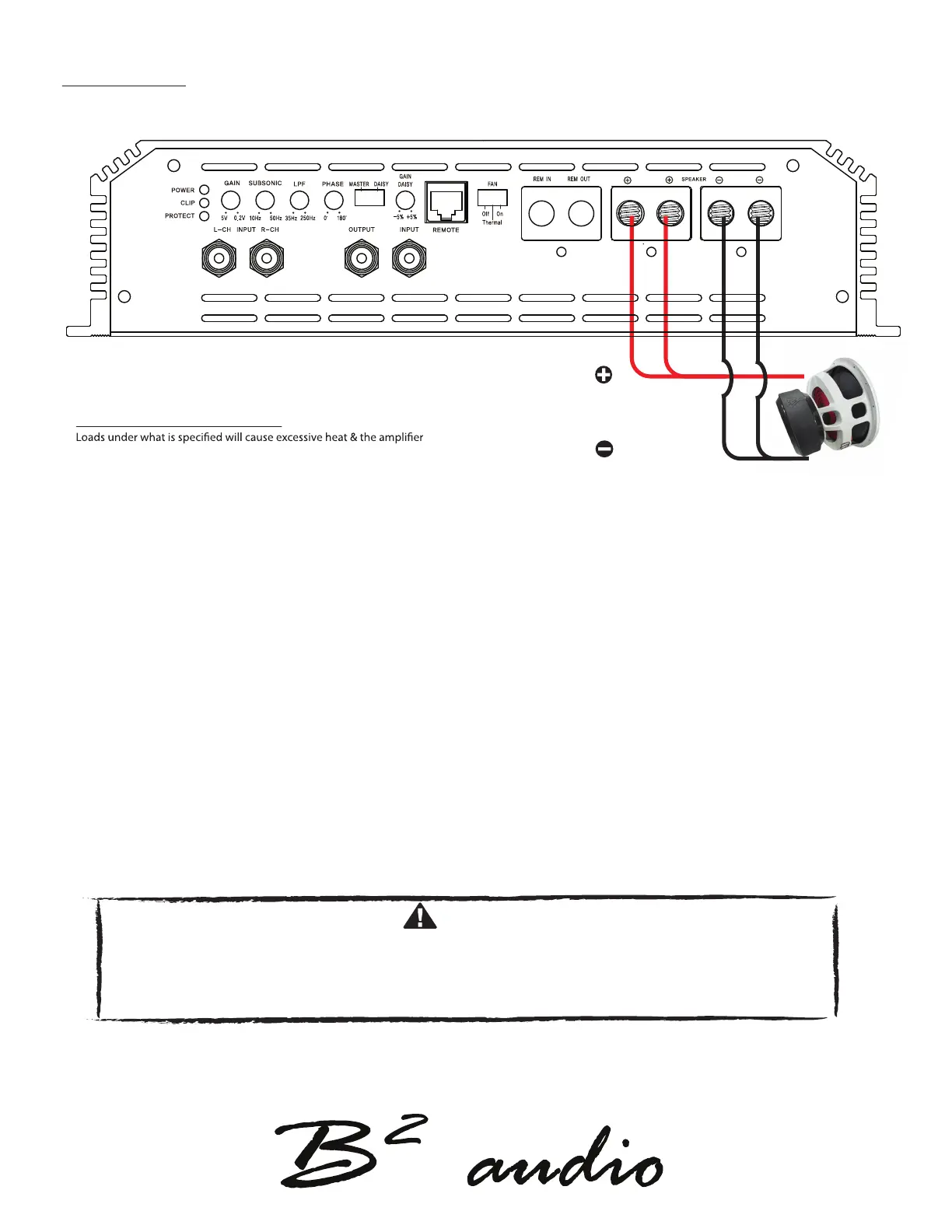

Connect the cable ends to the amplier as shown in the diagram. Note, the amplier’s speaker terminals are
internally bridged.
Speaker impedance 1 Ohm ~ 8 Ohm
will reach thermal at a faster rate & will eventually go into protect.
Impedance load under 1 ohm is not warranted!
Connect the +12V wire, keeping in mind that this wire must be fused at the battery as well. Ensure the ground is appropriate,
then connect it to the amplifier. Connect the switched remote. Reattach the negative wire (ground) to the battery. Operation
over 17.5 volts will cause the amplifier to go into protect mode and can void the warranty.
