HGM-MZ

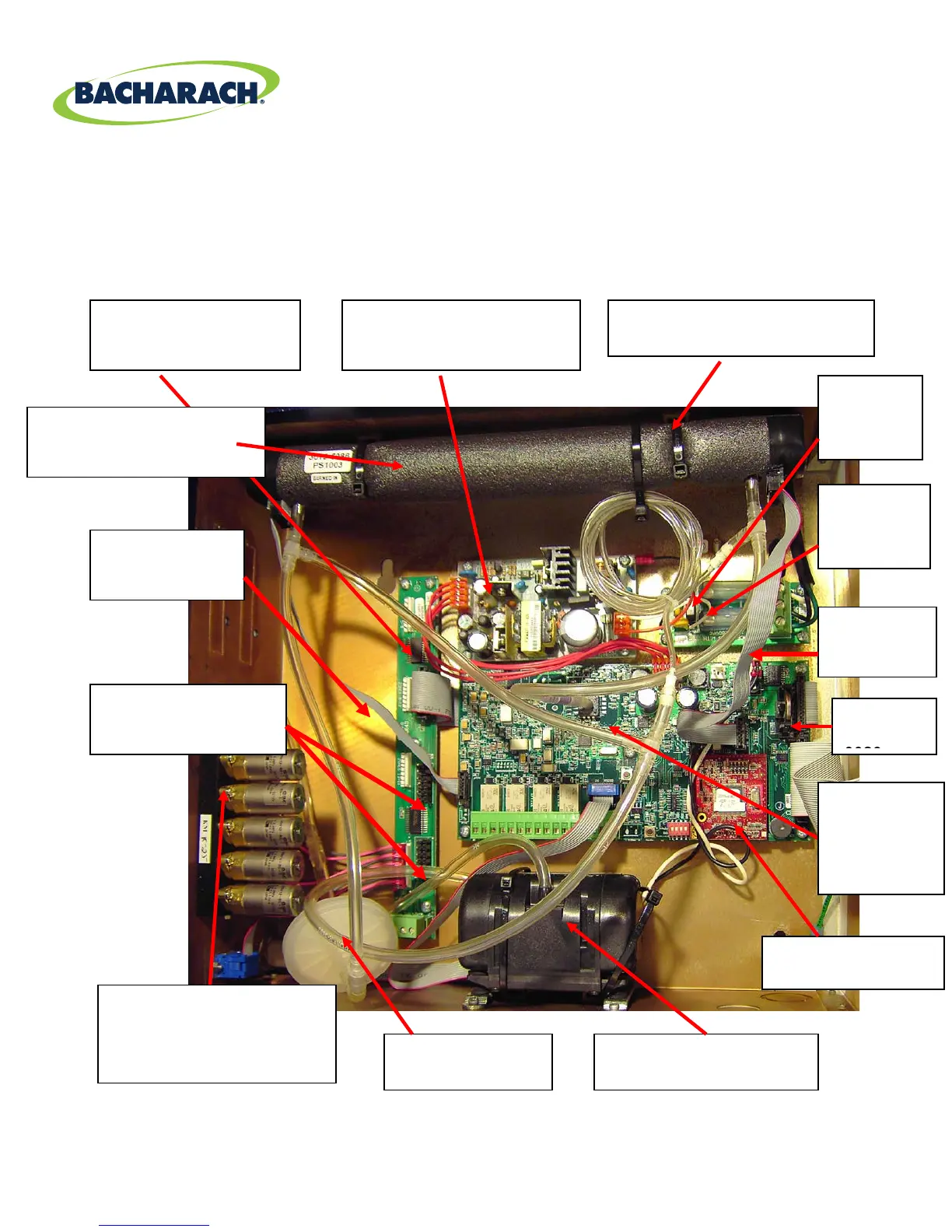

Major Parts List with Part Numbers
Sampling Pump with
Connector 3015-5176
Rabbit Processor
Board
Hydrophobic Filter
07-1650
Battery
0204-
0020
Infrared Bench Replacement
Kit 3015-4572
Power Supply Board
3015-5149
Power
Entry
Board w
Fuse
Manifold Control Board
3015-5095
Main
Processor
Board
(Motherboar
d)
Replaceme
nt Fuses
(2)
0004-2620
Manifold Block w/ Purge
3015-5080
4 port manifold (not shown)
3015-5072
Plug in points for
optional dual 4-20
communications board
10 pin Ribbon
cable
3015-4258
12 pin
Ribbon
cable
Note: this sensor is
shown without the
YELLOW TAPE around
