Bacharach HGM300 User Manual

Instruction 3015-4148 33
RDM800 - Setup Programming
Setting the Clock
From the top level System Screen press the key adjacent to the date/time field to go to the Clock Setup
Screen.

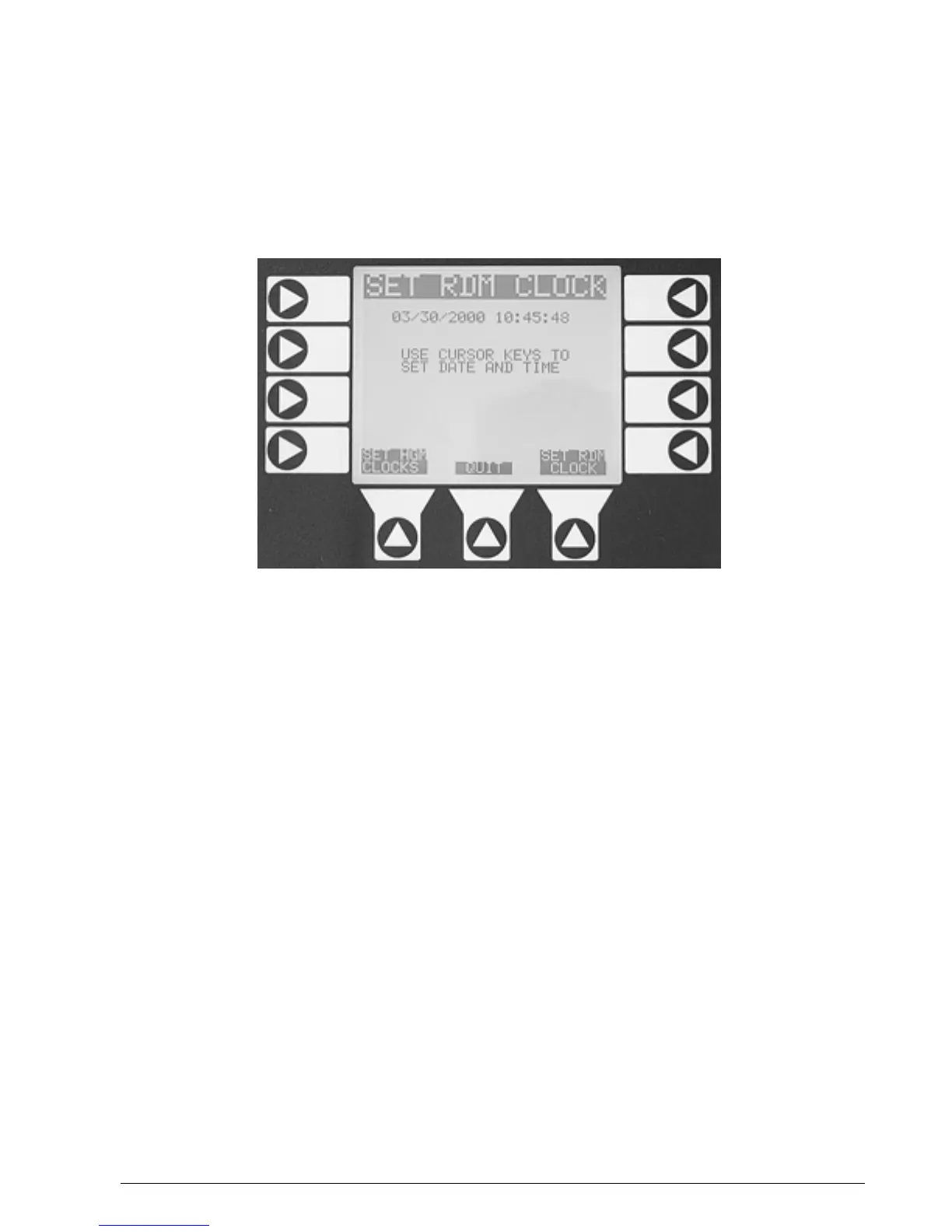

Clock Setup Screen
Use the LEFT/RIGHT cursor keys to move the cursor across the field to the value you wish to edit. Use the
UP/DOWN cursor keys to modify the field value and press the ENTER key to accept your entries. When you
are through editing the date/time value do one of the following:
• Press the SET HGM CLOCKS key to synchronize all HGM300 monitors to the current date/time setting.
• Press the QUIT key to reject all edits and revert to the previous setting.
• Press the SET RDM CLOCK key to accept the current date/time setting.

Bacharach HGM300 Specifications

General

Sensor Type	Electrochemical
Display	LCD
Resolution	1 ppm
Response Time	< 30 seconds
Operating Temperature	-20°C to 50°C
Power Supply	Rechargeable battery
Weight	0.5 kg
