Backyard Creations FC-30-MN - Page 6

SKU 272-0095/FC-30-MN
06
© 2018 Jack-Post Corporation 09/18
1/4" HEX NUT
3-1/4"
CARRIAGE BOLT
1/4" HEX NUT
BRACE
LEG ASSEMBLY
THIS
ANGLE
MUST BE
90º
TABLE
TOP
2" CARRIAGE
BOLT
STEPS 3 & 4
2" SLOTTED SCREW
2" CARRIAGE BOLT
1/4" HEX NUT
1/4"
HEX NUT
2-5/8"
SLOTTED
SCREW
1/4"
HEX
NUT
LEG (4)
BRACE
2X4’S or 2X6’S
TABLE

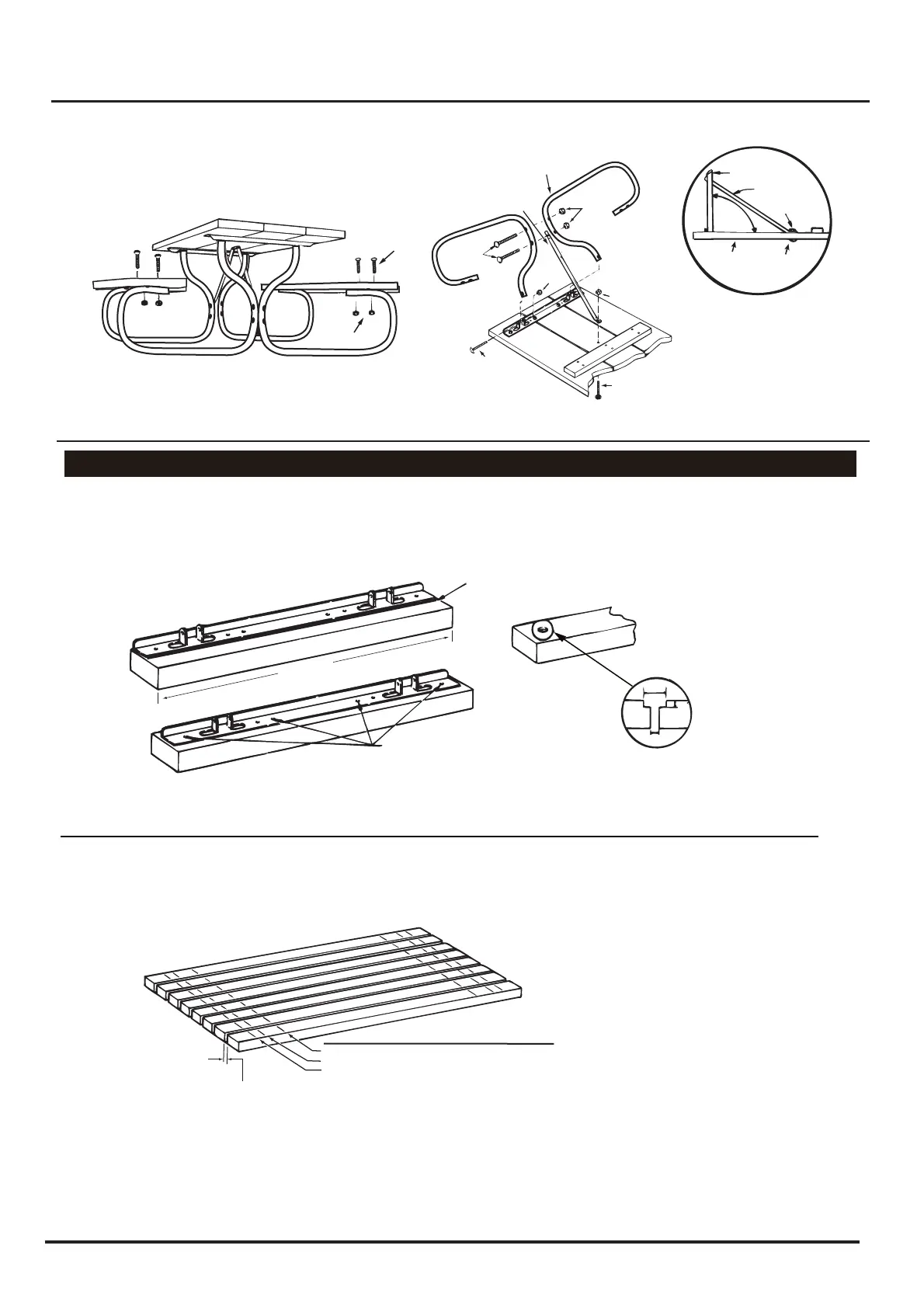

STEP 1 Select two 28" x 2" x 4" cleats. Using an angle bracket as a template, mark and drill four 1/4" diameter holes in each cleat,
centering the angle bracket on the cleat, as shown below.
2" x 4" x 28"
DRAW CENTER LINE - USE
BRACKET AS TEMPLATE TO MARK
POSITION BRACKET HOLES ON CENTER LINE AND
DRILL 4 – 1/4" HOLES ONLY WHERE INDICATED
5/8"
1/4"
1/8"
Remove angle bracket and counterbore each of the holes with a 5/8" bit to a depth of 1/8".
This will allow clearance for the carriage bolt heads in STEP 4.
DRAW ONE LINE AT BOTH ENDS OF TABLE
MAINTAIN 1/4" SPACE
BETWEEN ALL BOARDS
8' TABLE – 10" FROM END
6' TABLE – 6" FROM END
4' TABLE – 4" FROM END
STEP 2 Layout eight top boards when using 2" x 4"’s (or ve boards when using 2" x 6"’s), best side down on a at surface, maintaining
a 1/4" spacing between boards. Carriage bolts can be placed between boards to maintain space.
Measure and mark the following distance from both ends as follows:
