Backyard Discovery 55006 - Page 43

L6 - ARCHED RAIL - W100694
5/8"x4 3/8"x60 1/8" (16x112x1528)
(1)
L7 - ARCHED SCULPTURED RAIL - W100695
5/8"x4 3/8"x60 1/8" (16x112x1528)
(1)
NUT BARREL
WH 5/16x7/8
(8)
WASHER
LOCK EXT
8x19
(8)
WASHER
LOCK EXT
12x19
(8)

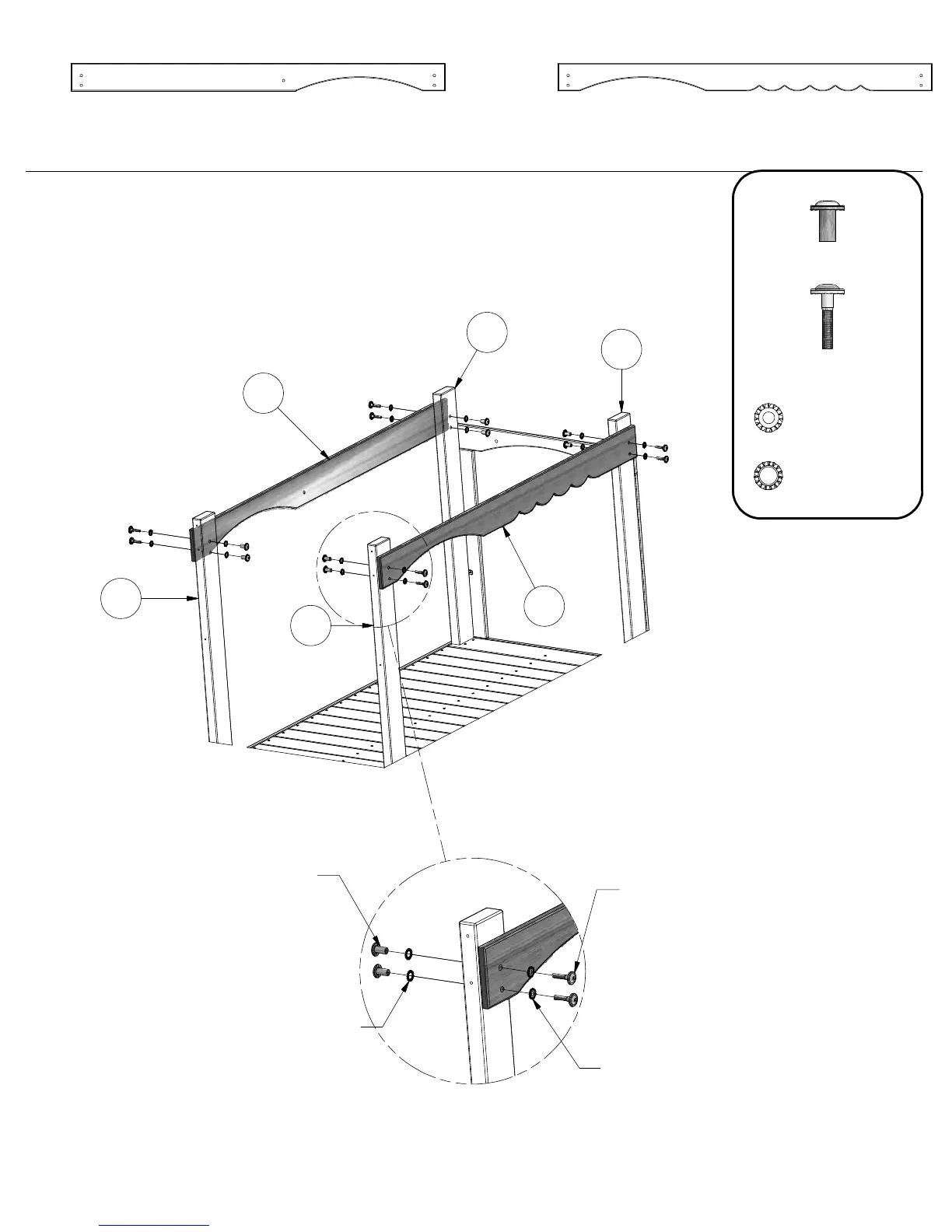

STEP 12
ATTACH L6 BOARD AS SHOWN TO E1 AND E2 BOARDS THROUGH PRE DRILLED
HOLES USING HARDWARE AS SHOWN.
ATTACH L7 BOARD AS SHOWN TO E3 AND E2 BOARDS THROUGH PRE DRILLED
HOLES USING HARDWARE AS SHOWN.
L6
L7
E1
E3
E2
E2
WASHER LOCK EXT 12x19
(8 PLCS)
NUT BARREL WH 5/16x7/8
(8 PLCS)
WASHER LOCK EXT 8x19
(8 PLCS)
BOLT WH 5/16x1 1/2
(8 PLCS)
BOLT WH
5/16x1 1/2
(8)
