Backyard Discovery 55006 - Roof and Tarp Installation; Roof Beam Support Installation

K2
K1
E3
E1
E2
E2
WASHER
LOCK EXT
8x19
(8)
T-NUT 5/16 (6)
T-NUT 5/16
(6 PLCS)
LAG SCREW WH 5/16x2
(8 PLCS)
WASHER LOCK EXT 8x19
(8 PLCS)

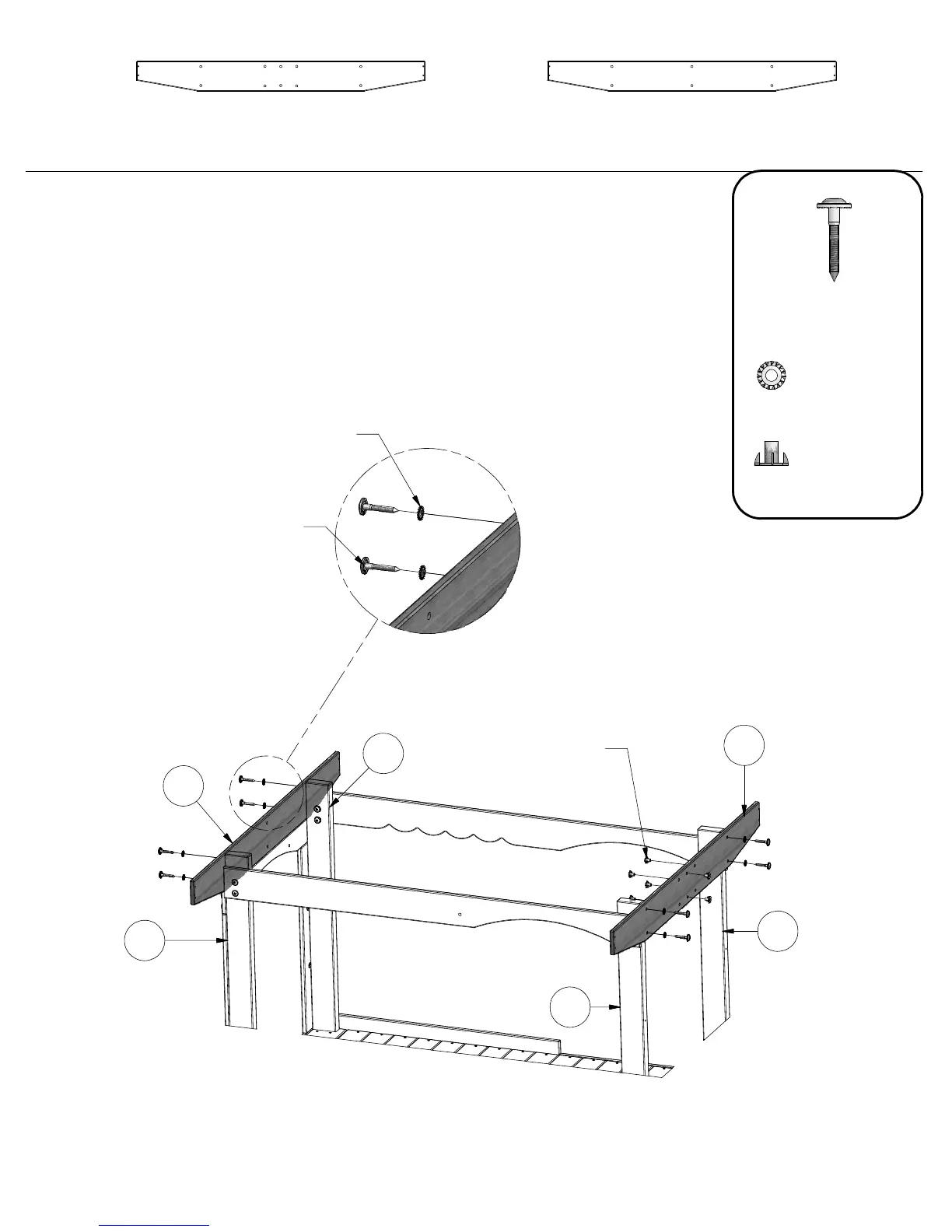

STEP 13
ATTACH 5/16 T NUTS TO K1 BOARD AS SHOWN AND ATTACH TO E2
BOARDS THROUGH PRE DRILLED HOLES WITH HARDWARE AS SHOWN.
ATTACH K2 BOARD TO E1, AND E3 BOARDS WITH HARDWARE AS SHOWN
THROUGH PRE DRILLED HOLES.
K1 - ROOF SWING BEAM SUPPORT - W100682
5/8"x5 1/4"x51 5/8" (16x134x1310)
(1)
K2 - ROOF SUPPORT - W100683
5/8"x5 1/4"x51 5/8" (16x134x1310)
(1)
LAG SCREW
WH 5/16x2
(8)
