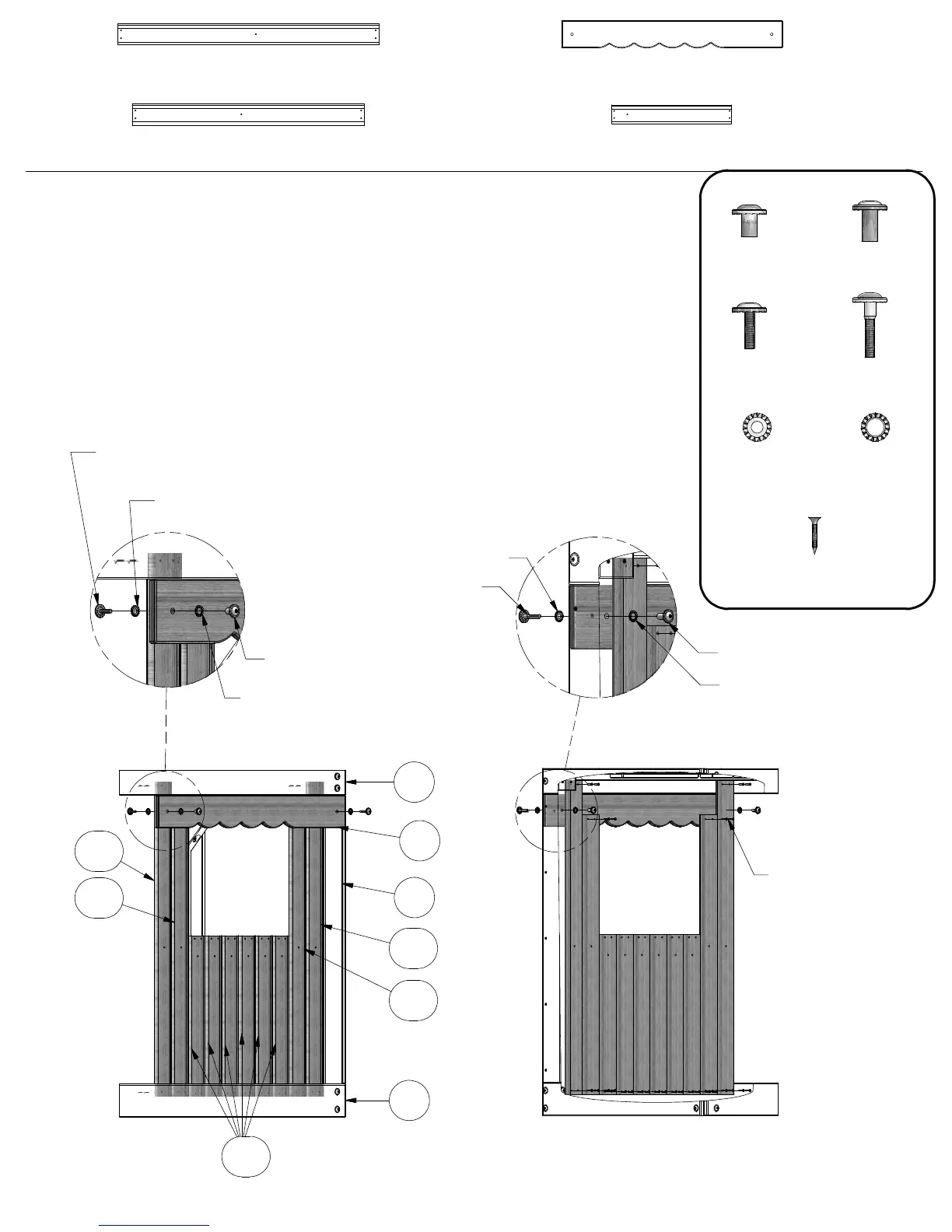

STEP 21
ATTACH L8 BOARD TO E3 BOARD FLUSH WITH THE UNDERSIDE OF K4 BOARD
USING HARDWARE AS SHOWN FIG. 1.
STARTING AGAINST E3 BOARD, ATTACH A K9-3 BOARD FLUSH WITH THE BOTTOM
OF THE SP1 BOARD USING HARDWARE AS SHOWN.
FLUSH ALONG THE BOTTOM ATTACH THE A K9-3, THE (6) K9-5 BOARDS, AND THE
OTHER K9-3 AND K9-4 BOARDS AS SHOWN.
USING L8 BOARD AS A GUIDE, USE A 3/8" DRILL BIT, PRE DRILL HOLE TO ATTACH
HARDWARE AS SHOWN FIG. 2.
K9-3 - WALL BOARD - W101257
3/8"x3 3/8"x42" (11x86x1068)
(2)
K9-4 - WALL BOARD - W101239
3/8"x3 3/8"x37 3/8" (11x86x950)
(2)
L8 - SCULPTURED RAIL - W101240
5/8"x4 3/8"x35 1/2" (16x112x902)
(1)
NUT BARREL
WH 5/16x5/8
(1)
NUT BARREL
WH 5/16x7/8
(1)
BOLT WH
5/16x1
(1)
BOLT WH
5/16x1 1/2
(1)
SCREW PFH
8x1
(28)
WASHER
LOCK EXT
8x19
(2)
WASHER
LOCK EXT
12x19
(2)
NUT BARREL WH 5/16x7/8
WASHER LOCK EXT 12x19
NUT BARREL WH 5/16x5/8
WASHER LOCK EXT 12x19
BOLT WH 5/16x1
WASHER LOCK EXT 8x19
WASHER LOCK EXT 8x19
BOLT WH 5/16x1 1/2
FIG. 1.
FIG. 2.
K9-5 - WALL BOARD - W101259
3/8"x3 3/8"x21 3/8" (11x86x544)
(6)
SCREW PFH 8x1
To Next Page
