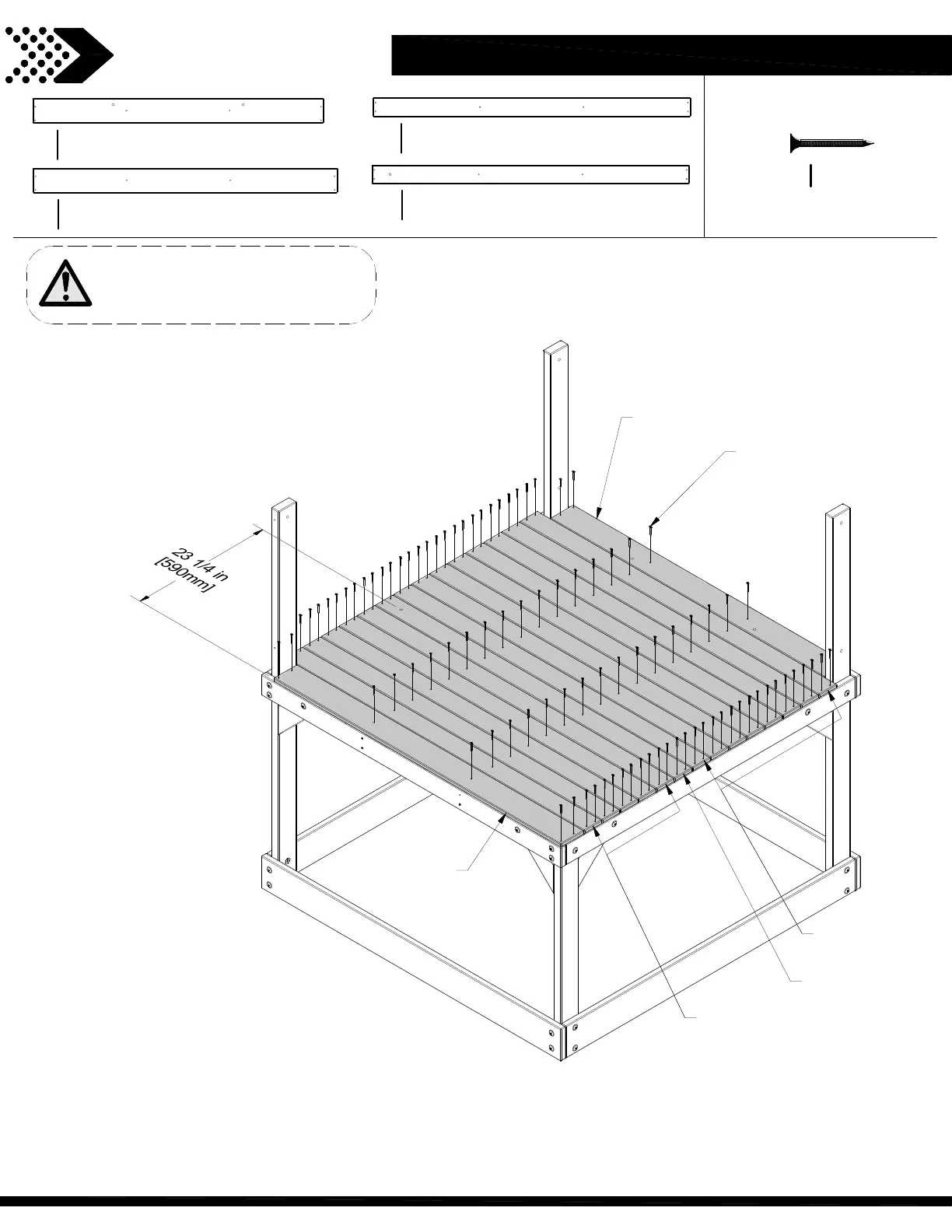

DECK ASSEMBLY
STEP 9
NOTE:
ALL FLOOR BOARDS SHOULD BE
SPACED EVENLY.
200 (x96)
SCREW - 1 1/2"
L2 (x1)
L1 (x1)
M6 (x1)
M4 (x5)
M4 (x8)
FLOOR BOARD - W4L14909
5/8"x3 3/8"x56 3/4" (16x86x1442)
M4
(x13)
FLOOR BOARD - W4L14905
5/8"x4 3/8"x54 3/8" (16x112x1382)
L2
(x1)
FLOOR BOARD - W4L14904
5/8"x4 3/8"x52" (16x112x1321)
L1
(x1)
FLOOR BOARD - W4L14886
5/8"x3 3/8"x56 3/4" (16x86x1442)
M6
(x1)
SCREW PFH BLK
8x1 1/2
(x96)
H100200
