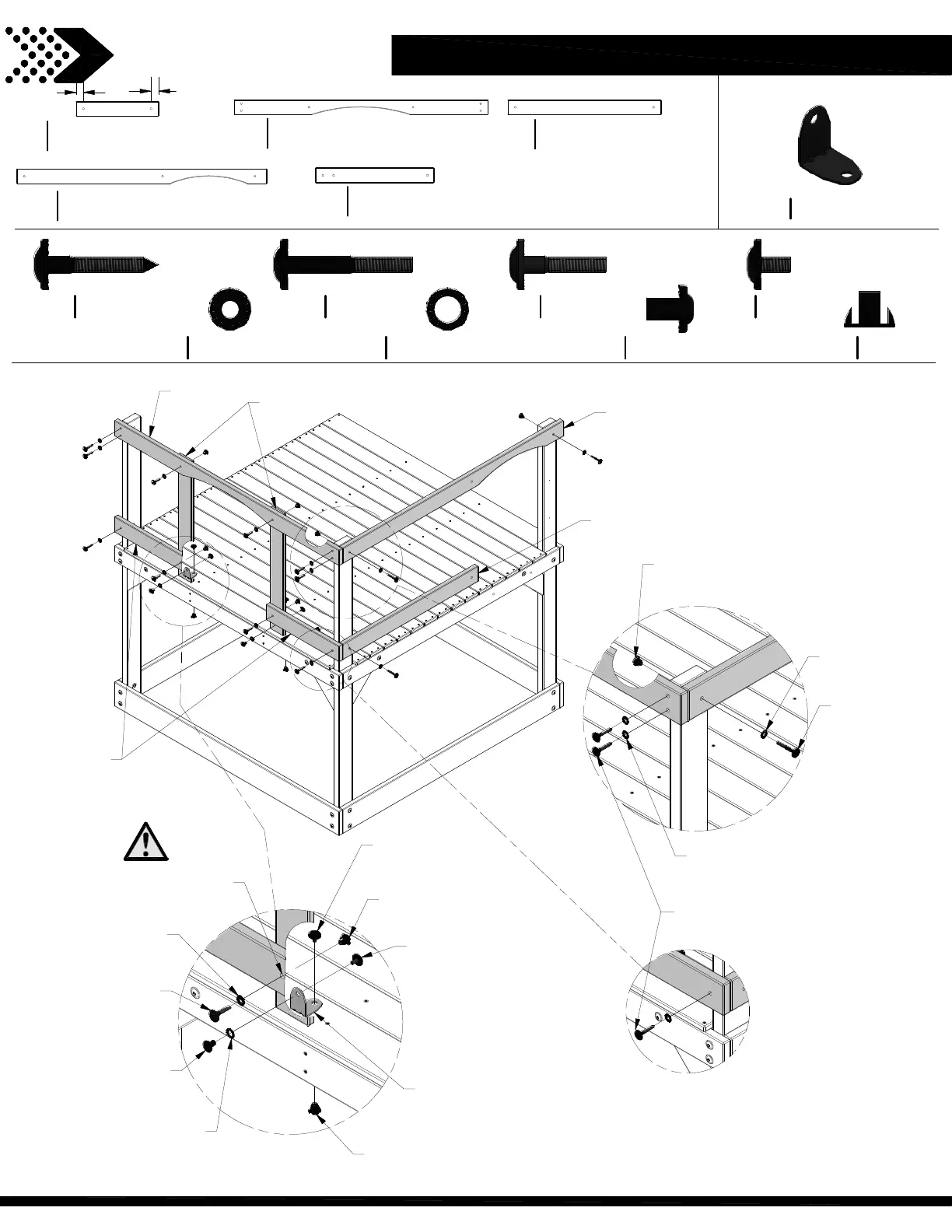

DECK ASSEMBLY
STEP 10
379 (x2)
T-NUT - 5/16"
469 (x2)
NUT BARREL - 5/8
199 (x2)
WASHER - 12x19
407 (x4)
BOLT - 1 1/2"
198 (x4)
WASHER - 8x19
396 (x2)
BOLT - 1/2"
379 (x4)
T-NUT - 5/16"
396 (x2)
BOLT - 1/2"
458 (x6)
LAG SCREW - 2"
198 (x6)
WASHER - 8x19
379 (x3)
T-NUT - 5/16"
198 (x3)
WASHER - 8x19
205 (x3)
BOLT - 2 1/4"
047 (x2)
L BRACKET 2.5x38x55x55
H8 (x1)
H6 (x2)
H7 (x1)
M7 (x2)
WALL BOARD - W4L14887
5/8"x3 3/8"x26 1/2" (16x86x673)
M7
(x2)
WALL RAIL - W4L14895
1"x3 3/8"x34 1/4" (24x86x871)
H8
(x1)
WALL RAIL - W4L14893
1"x3 3/8"x18 1/2" (24x86x469)
H6
(x2)
WALL RAIL - W4L14894
1"x3 3/8"x56 3/4" (24x86x1442)
H7
(x1)
L BRACKET 2.5x38x55x55
(x2)
A4M01047
BOLT WH BLK
5/16x1 1/2
(x4)
H100407
T-NUT BLK
5/16
(x9)
H100379
NUT BARREL WH BLK
5/16x5/8
(x2)
H100469
BOLT WH BLK
5/16x1/2
(x4)
H100396
BOLT WH BLK
5/16x2-1/4
(x3)
H100205
WASHER LOCK EXT BLK
8x19
(x13)
H100198
WASHER LOCK EXT BLK
12x19
(x2)
H100199
LAG SCREW WH BLK
5/16x2
(x6)
H100458
H11 (x1)
WALL RAIL - W4L14923
1"x3 3/8"x55 7/8" (24x86x1418)
H11
(x1)
43
42
43mm HOLE TOWARDS
OPENING BOTH SIDES
40
