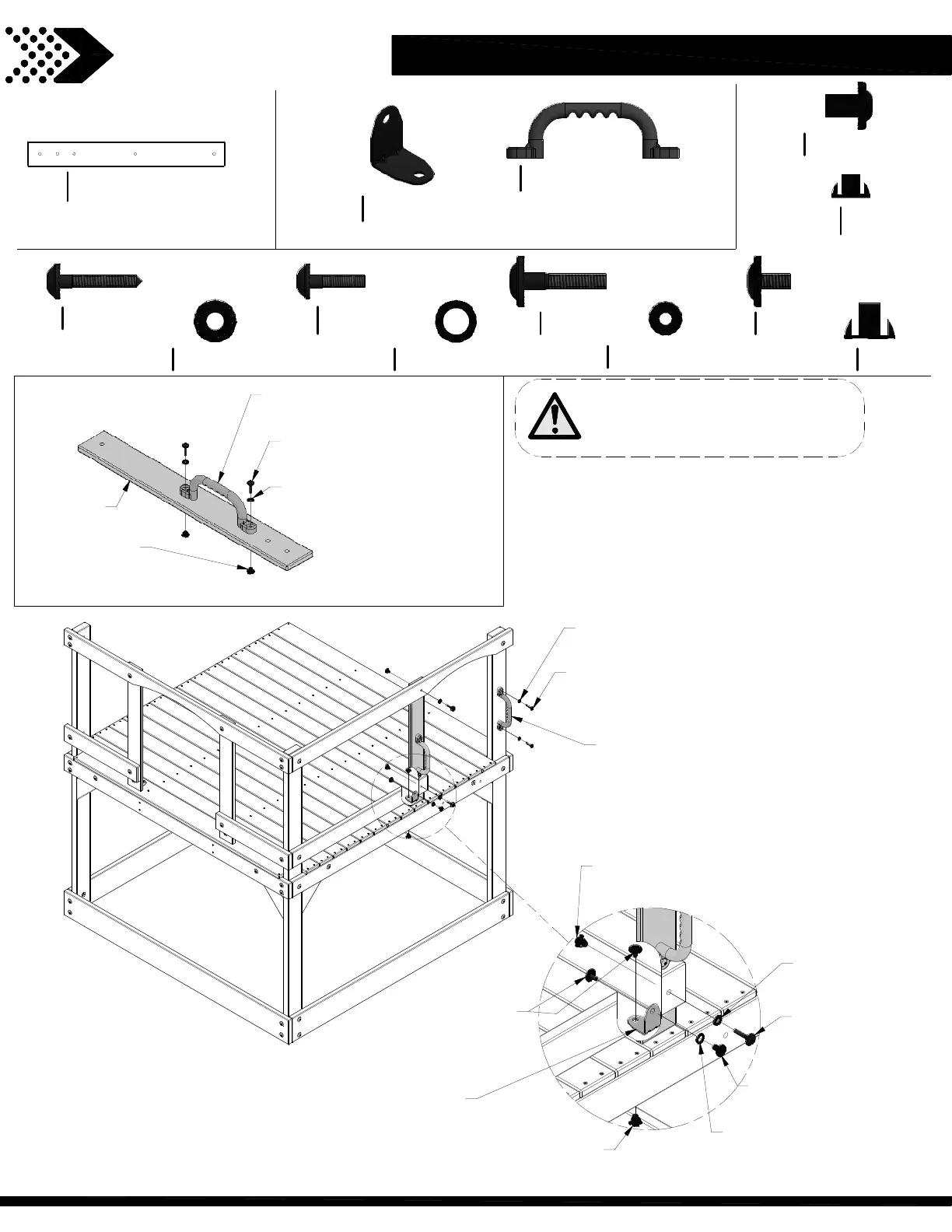

DECK ASSEMBLY
STEP 11
NOTE:
ASSEMBLE HAND GRIP TO 'M10'
BOARD FIRST.
405 (x2)
WASHER - 6x15
403 (x2)
LAG SCREW - 1 1/2"
379 (x2)
T-NUT - 5/16"
396 (x2)
BOLT - 1/2"
379 (x1)
T-NUT - 5/16"
198 (x2)
WASHER - 8x19
407 (x2)
BOLT - 1 1/2"
469 (x1)
NUT BARREL - 5/8
199 (x1)
WASHER - 12x19
028 (x1)
HAND GRIP GREEN PLASTIC
047 (x1)
L BRACKET 2.5x38x55x55
171 (x2)
BOLT - 1"
405 (x2)
WASHER - 6x15
398 (x2)
T-NUT - 1/4"
028 (x2)
HAND GRIP GREEN PLASTIC
M10 (x1)
WALL BOARD - W4L14911
5/8"x3 3/8"x26 1/2" (16x86x673)
M10
(x1)
L BRACKET 2.5x38x55x55
(x1)
A4M01047
HAND GRIP GREEN PLASTIC
(x2)
A100028
WASHER LOCK EXT BLK
8x19
(x2)
H100198
WASHER LOCK EXT BLK
12x19
(x1)
H100199
BOLT WH BLK
5/16x1 1/2
(x2)
H100407
NUT BARREL WH BLK
5/16x5/8
(x1)
H100469
BOLT WH BLK
5/16x1/2
(x2)
H100396
T-NUT BLK
5/16
(x3)
H100379
BOLT WH BLK
1/4x1
(x2)
H100171
T-NUT BLK
1/4
(x2)
H100398
WASHER LOCK EXT BLK
6x15
(x4)
H100405
LAG SCREW WH BLK
1/4x1 1/2
(x2)
H100403
TOP
BOTTOM
