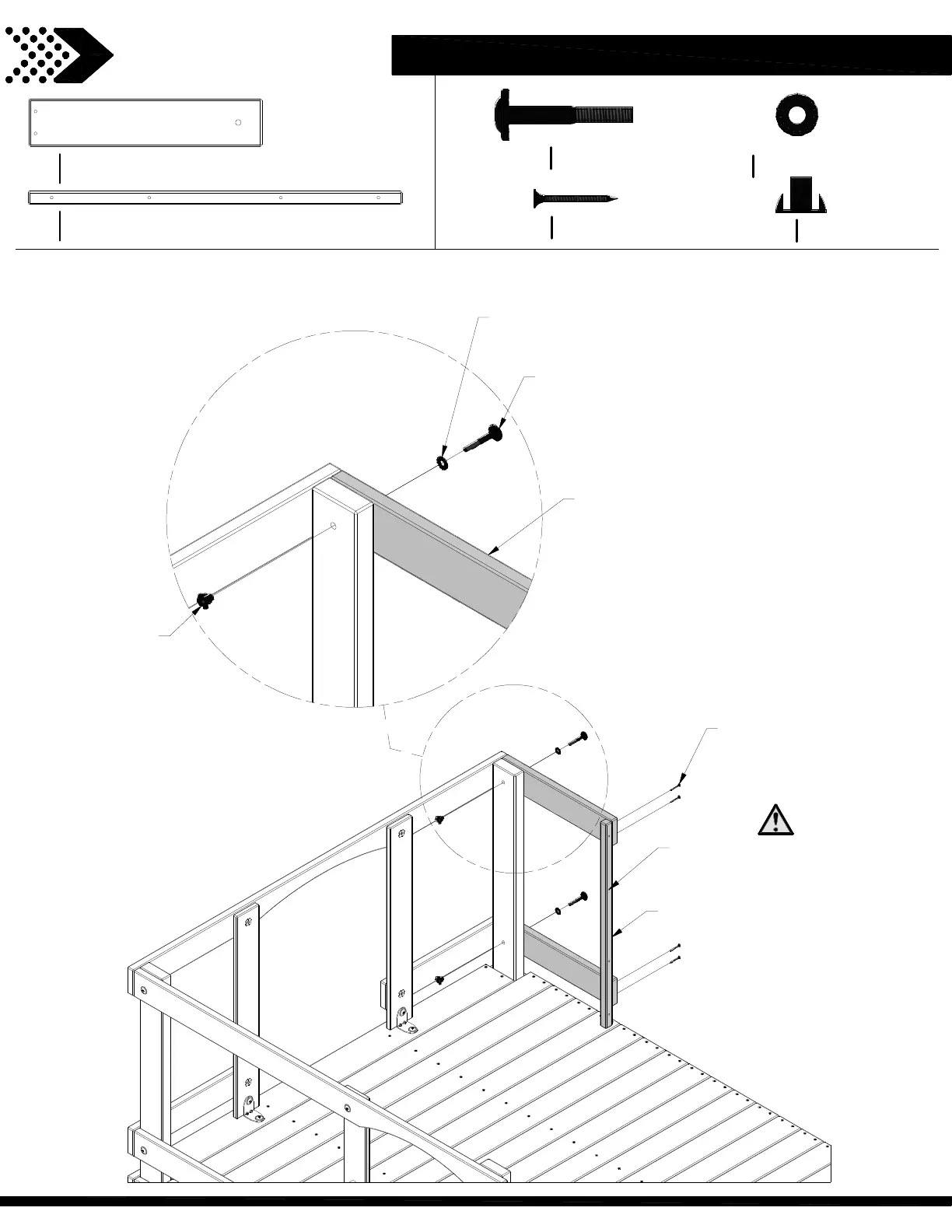

DECK ASSEMBLY
STEP 12
NOTE HOLE LOCATION FOR
PROPER INSTALLATION.
WALL RAIL - W4L14896
1"x3 3/8"x16 5/8" (24x86x423)
H9
(x2)
RAIL BOARD - W4L14920
1"x1"x26 3/4" (24x24x679)
S1
(x1)
SCREW PFH BLK
8x1 1/2
(x4)
H100200
BOLT WH BLK
5/16x2-1/4
(x2)
H100205
WASHER LOCK EXT BLK
8x19
(x2)
H100198
T-NUT BLK
5/16
(x2)
H100379
205 (x2)
BOLT - 2 1/4"
198 (x2)
WASHER - 8x19
379 (x2)
T-NUT - 5/16"
200 (x4)
SCREW - 1 1/2"
S1 (x1)
H9 (x2)
