Backyard Discovery Echo Heights - Page 78

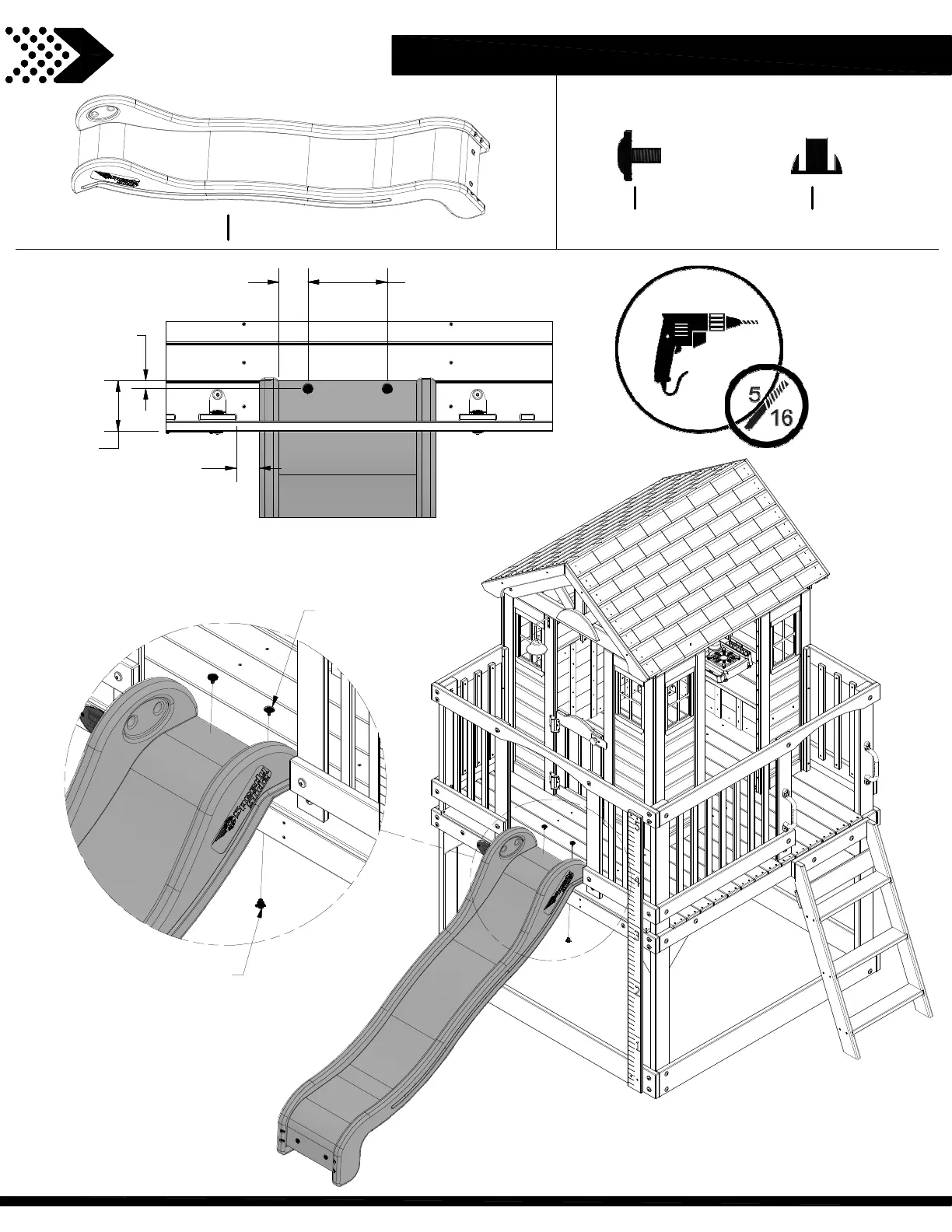

FINAL ASSEMBLY
STEP 5
1 in
[
25 mm]
2 5/8 in
[66 mm]
7 1/8 in
[180 mm]
2 in
[52 mm]
DRILLING LOCATIONS
3.5 in
[89mm]
396 (x2)
BOLT - 1/2"
379 (x2)
T-NUT - 5/16"
6 FT SPEEDY SLIDE
(x1)
9208032
BOLT WH BLK
5/16x1/2
(x2)
H100396
T-NUT BLK
5/16
(x2)
H100379
78
