STEP 6
NOTE:
TIP:
FAILURE TO USE GROUND
S
TAKES CAN VOID WARRANTY
& CAUSE INJURY!

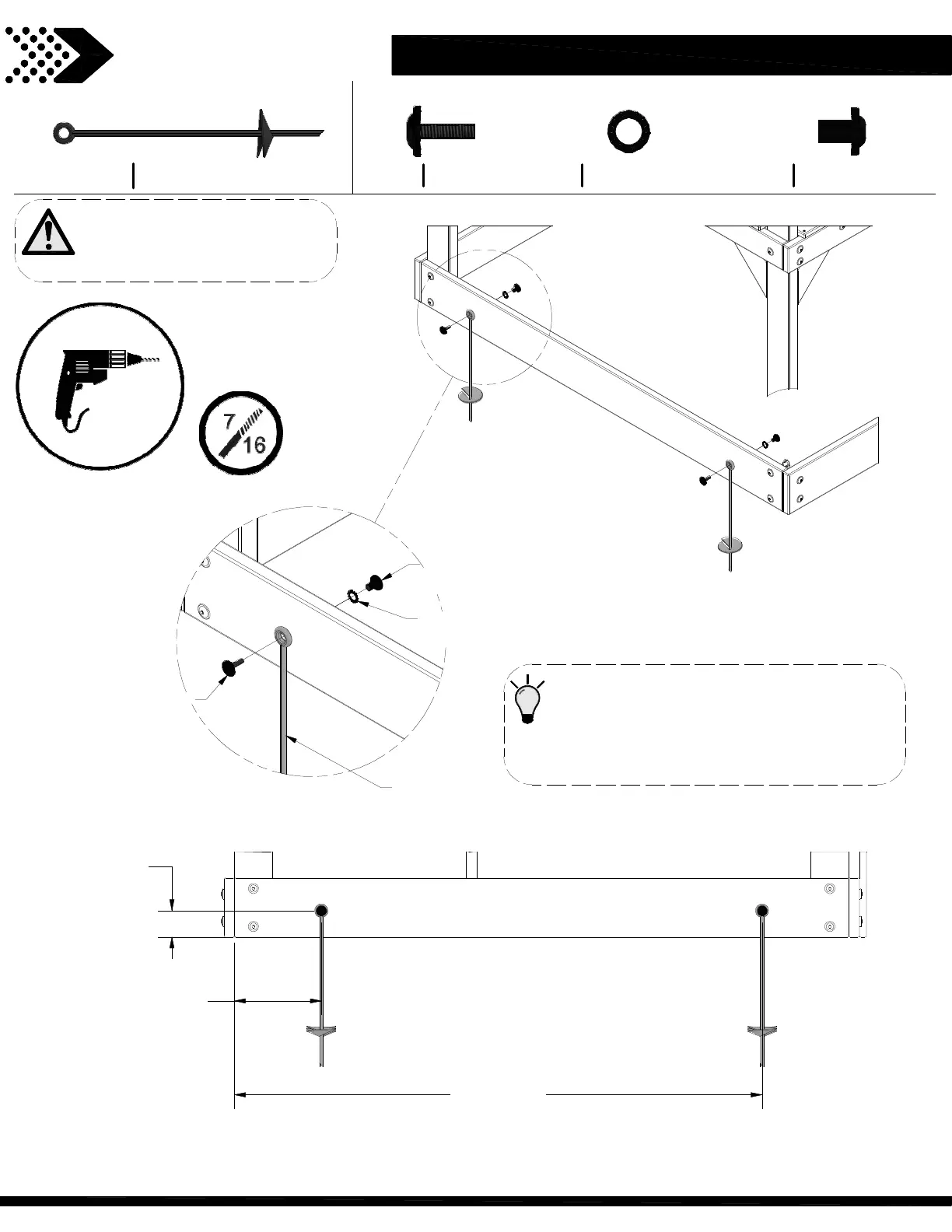

TWIST GROUND STAKES INTO GROUND IN
LOCATIONS SHOWN.
USING GROUND STAKE AS A GUIDE, DRILL
7/16" HOLE FOR HARDWARE.
FINAL ASSEMBLY
47 1/8 in
[
1197 mm]
7 3/4 in
[197 mm]
2 3/8 in
[60 mm]
AUGER GROUND STAKE
(x4)
A100178
469 (x4)
NUT BARREL - 5/8
199 (x4)
WASHER - 12x19
468 (x4)
BOLT - 1"
178 (x4)
AUGER GROUND STAKE
FRONT
L
EFT
LEFT
NUT BARREL WH BLK
5/16x5/8
(x4)
H100469
BOLT WH BLK
5/16x1
(x4)
H100468
WASHER LOCK EXT BLK
12x19
(x4)
H100199
***PERFORM THE SAME ASSEMBLY PROCESS FOR THE RIGHT SIDE.***
DRILLING LOCATIONS
