Backyard Discovery OAKMONT - Page 34

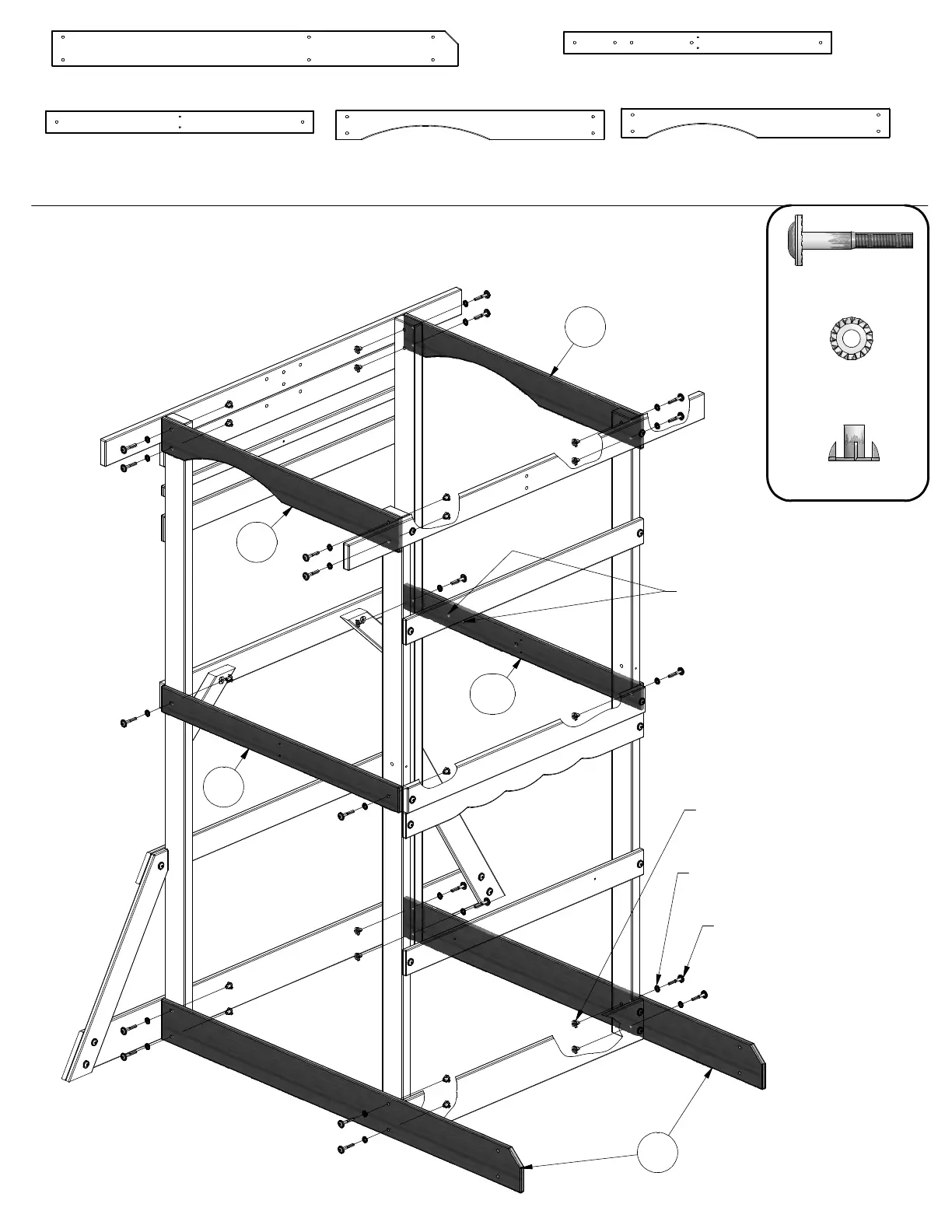

STEP 6
T-NUT 5/16 (20)
WASHER
LOCK EXT
8x19
(20)
K2
M6
M18
L2
L1
BOLT WH 5/16x2
(20 PLCS)
WASHER LOCK EXT 8x19
(20 PLCS)
T-NUT 5/16
(20 PLCS)
BOLT WH
5/16x2
(20)
L1 - ARCHED ROOF BOARD - W4L04775
5/8"x4 3/8"x40" (16x112x1016)
(1)
L2 - ARCHED ROOF BOARD - W4L04774
5/8"x4 3/8"x40" (16x112x1016)
(1)
M6 - FLOOR SUPPORT - W4L04691
5/8"x3 3/8"x40" (16x86x1016)
(1)
K2 - GROUND BOARD - W4L04685
5/8"x5 1/4"x60 1/2" (16x134x1538)
(2)
M18 - FLOOR SUPPORT - W4L04810
5/8"x3 3/8"x40" (16x86x1016)
(1)
NOTE HOLE LOCATIONS
