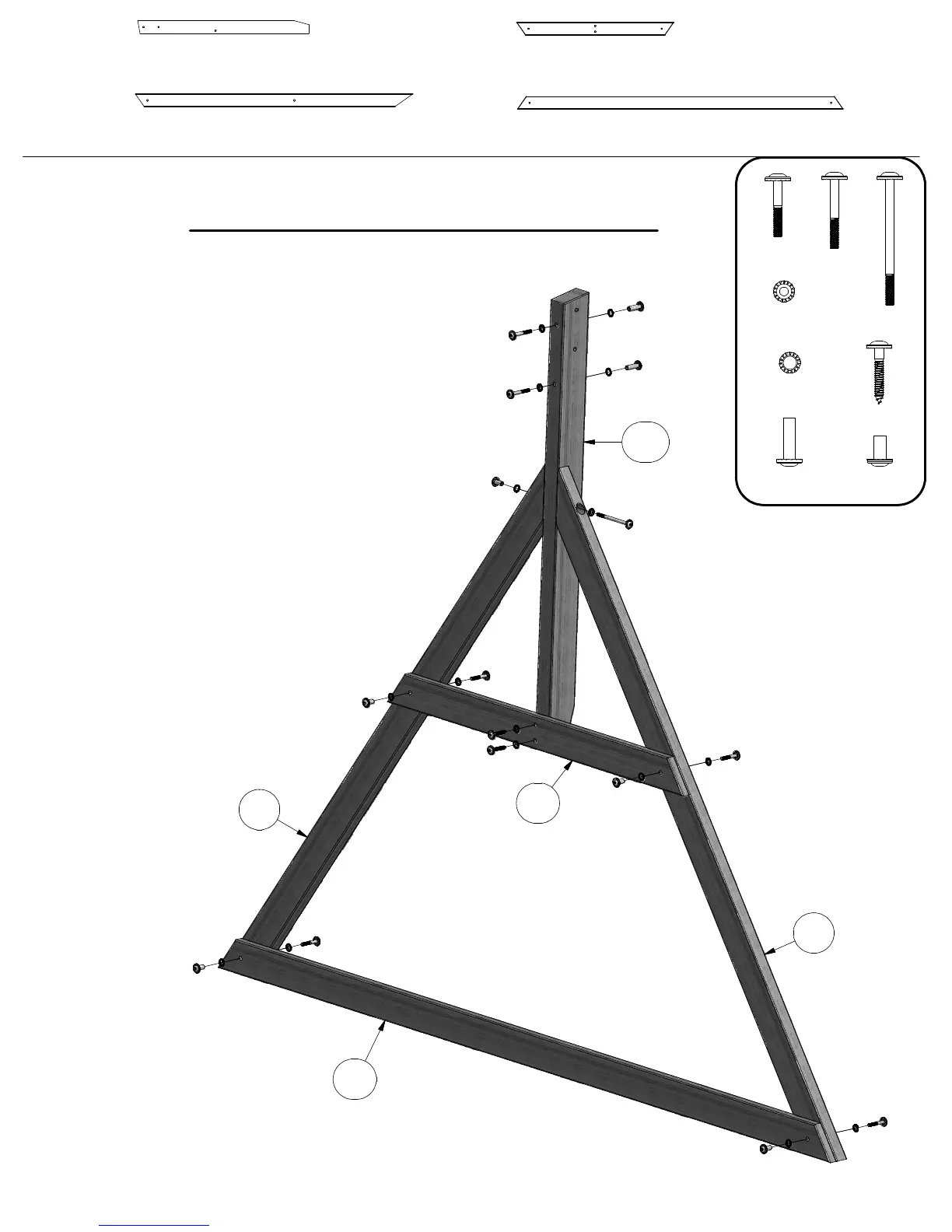

SWING BEAM ASSEMBLY
STEP 2
INSERT (2) 2-1/2" BOLTS, LOCK WASHERS
AND 1-1/2" BARREL NUTS INTO TOP EDGE OF
W71 SWING BEAM SUPPORT, AS SHOWN.
ATTACH E77 ANGLE BRACES TO W71 SWING
BEAM SUPPORT USING 4- 1/2" BOLTS, LOCK
WASHERS AND 7/8" BARREL NUTS.
ATTACH H79 END SUPPORT TO E77 A
NGLE BRACES USING 2" BOLTS, LOCK WAS
HERS AND 7/8" BARREL NUTS. NOW ATTACH
H79 END SUPPORT TO W71 SWING
BEAM SUPPORT USING 2" LAG SCREWS AND
LOCK WASHERS.
ATTACH H80 GROUND BOARD TO E77 A
NGLE BRACES USING 2" BOLTS, LOCK WAS
HERS AND 7/8" BARREL NUTS.
W71
H79
E77
E77
H80
BOLT WH
5/16x4-1/2
BOLT WH
5/16x2-1/2
BOLT WH
5/16x2
WASHER
LOCK EXT
8x19
WASHER
LOCK EXT
12x19
LAG SCREW
WH 5/16x2
NUT BARREL
WH 5/16x1-1/2
NUT BARREL
WH 5/16x7/8
W71 - SWING BEAM SUPPORT - W102349
2"x3 3/8"x47 3/8" (50x86x1204)
(1)
E77 - ANGLE BRACE - W100991
1 3/8"x3 3/8"x74 3/8" (36x86x1890)
(2)
H79 - END SUPPORT - W100992
1"x3 1/2"x42" (24x86x1072)
(1)
H80 - GROUND BOARD - W100990
1"x3 3/8"x87 3/8" (24x86x2218)
(1)
