Backyard Discovery Weston 65113 - M10097 - Sheet 1

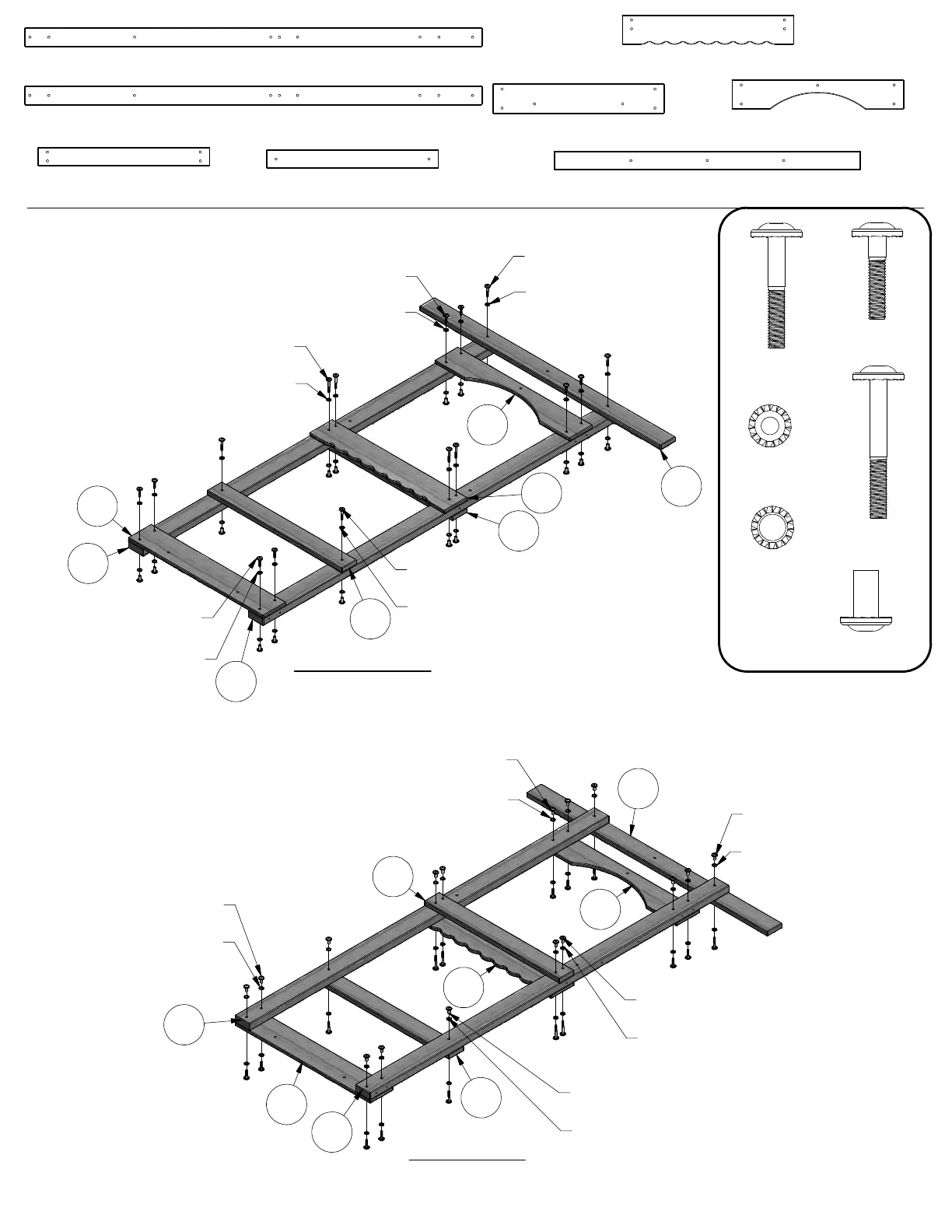

STEP 1
BOLT WH 5/16x1-1/2
(4 PLCS)
WASHER LOCK EXT 8x19
(4 PLCS)
BOLT WH 5/16x2
(2 PLCS)
WASHER LOCK EXT 8x19
(2 PLCS)
BOLT WH 5/16x2-1/2
(4 PLCS)
WASHER LOCK EXT 8x19
(4 PLCS)
BOLT WH 5/16x1-1/2
(4 PLCS)
WASHER LOCK EXT 8x19
(4 PLCS)
BOLT WH 5/16x2
(2 PLCS)
WASHER LOCK EXT 8x19
(2 PLCS)
NUT BARREL WH 5/16x7/8
(4 PLCS)
WASHER LOCK EXT 12x19
(4 PLCS)
NUT BARREL WH 5/16x7/8
(2 PLCS)
WASHER LOCK EXT 12x19
(2 PLCS)
NUT BARREL WH 5/16x7/8
(4 PLCS)
WASHER LOCK EXT 12x19
(4 PLCS)
NUT BARREL WH 5/16x7/8
(4 PLCS)
WASHER LOCK EXT 12x19
(4 PLCS)
NUT BARREL WH 5/16x7/8
(2 PLCS)
WASHER LOCK EXT 12x19
(2 PLCS)
H8
K5
H1
K6
H3
K3
E3
E1
K3
E1
E3
H3
H1
K6
K5
H8
OUTSIDE VIEW
INSIDE VIEW
BOLT WH
5/16x2
(4)
BOLT WH
5/16x1-1/2
(8)
WASHER
LOCK EXT
8x19
(16)
BOLT WH
5/16x2-1/2
(4)
WASHER
LOCK EXT
12x19
(16)
NUT BARREL
WH 5/16x7/8
(16)
E1 - UPRIGHT - W103800
1
3/8"x3 3/8"x81 3/4" (36x86x2076)
(1)
E3 - UPRIGHT - W103809
1 3/8"x3 3/8"x81 3/4" (36x86x2076)
(1)
H1 - FLOOR RAIL - W103804
1"x3 3/8"x30 3/4" (24x86x780)
(1)
H3 - WALL RAIL - W103815
1"x3 3/8"x30 3/4" (24x86x780)
(1)
K5 - WINDOW ARCH BOARD - W103811
5/8"x5 1/4"x30 3/4" (16x134x780)
(1)
K3 - GROUND BOARD - W103801
5/8"x5 1/4"x30 3/4" (16x134x780)
(1)
H8 - HORIZONTAL TARP SUPPORT - W103816
1"x3 3/8"x54 3/4" (24x86x1392)
(1)
K6 - DECORATIVE WALL BOARD - W103829
5/8"x5 1/4"x30 3/4" (16x134x780)
(1)
29
