Backyard Discovery Weston 65113 - M10097 - Sheet 9

STEP 9

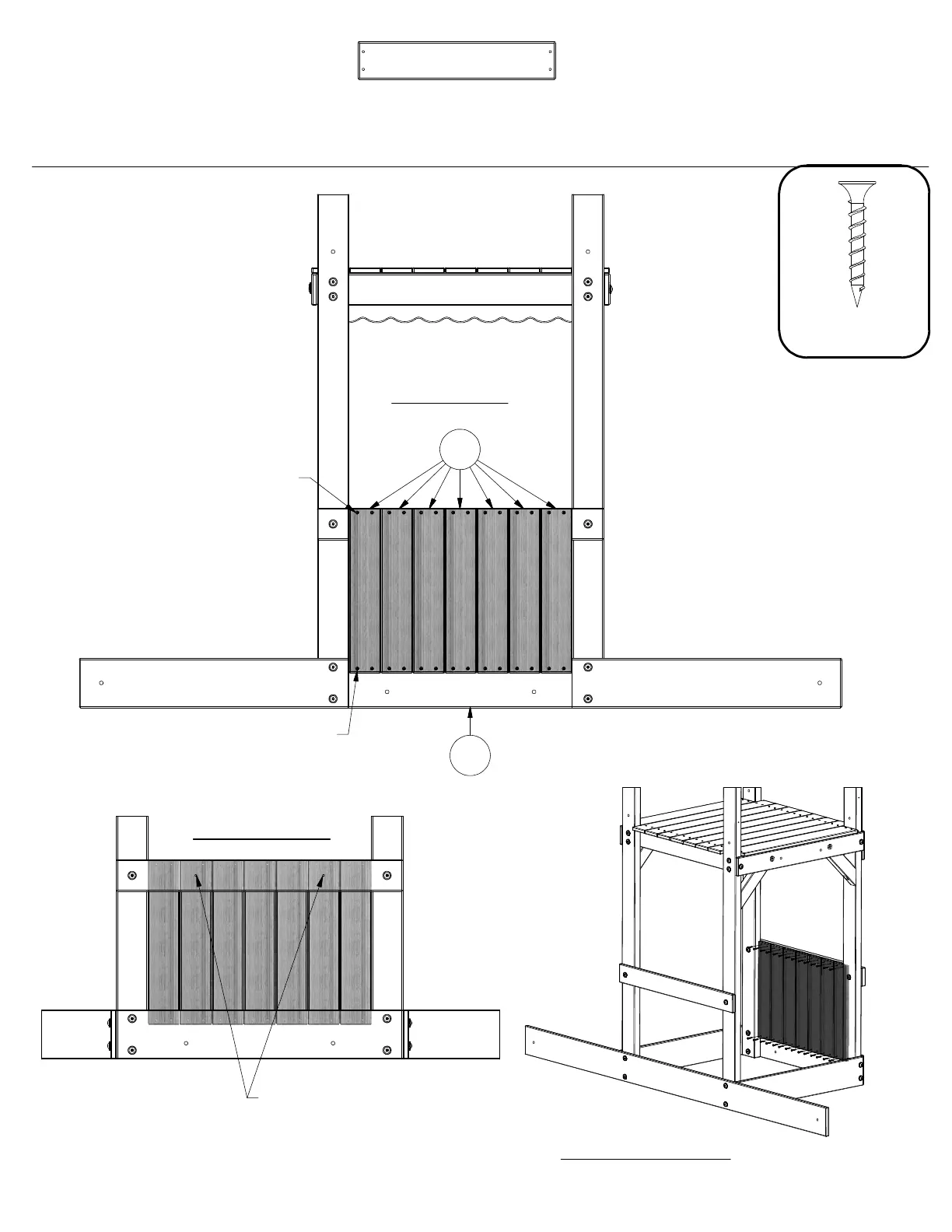

REFERENCE VIEW
SCREW PFH 8x1-1/8
(14 PLCS)
SCREW PFH 8x1-1/8
(14 PLCS)
SCREW PFH
8
x1-1/8
(28)
M3
K3
M3 - FLOOR BOARD - W103824
5
/8"x3 3/8"x17 5/8" (16x86x448)
(7)
USING A 1/8" DRILL BIT,
DRILL DESIGNATED HOLES
THROUGH 'M3' BOARDS.
OUTSIDE VIEW
INSIDE VIEW
