Backyard 1705012 - Page 25

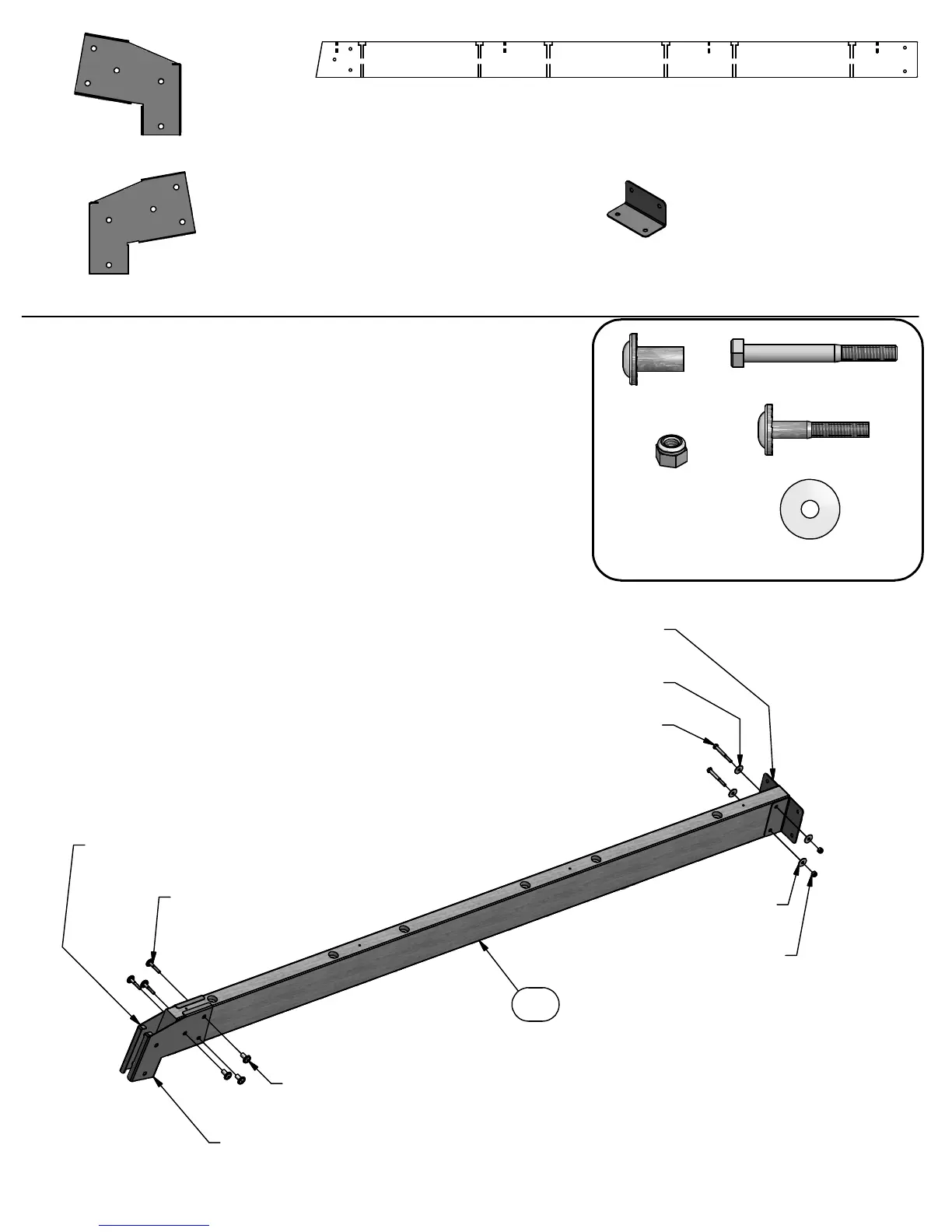

SWING BEAM ASSEMBLY
STEP 1
NUT BARREL WH 5/16x7/8
(3 PLCS)
SWING BEAM EXTENSION BRACKET-RIGHT
(1 PLC)
SWING BEAM EXTENSION BRACKET-LEFT
(1 PLC)
BOLT WH 5/16x1 3/4
(3 PLCS)
NUT LOCK 5/16
(2 PLCS)
WASHER FLAT 8x27
(2 PLCS)
BOLT HEX 5/16x2-3/4
(2 PLCS)
WASHER FLAT 8x27
(2 PLCS)
L BRACKET 66x66x127
(2 PLCS)
SB74
SB74 - SWING BEAM EXTENDED - W4L06961
2"x5 1/4"x89 1/2" (50x134x2274)
(1)
GD - L BRACKET 66x66x127 - A100140
(2)
TB - SWING BEAM EXTENSION BRACKET-LEFT - A100325
(1)
TC - SWING BEAM EXTENSION BRACKET-RIGHT - A100326
(1)
BOLT HEX
5/16x2-3/4
(2)
WASHER
FLAT 8x27
(4)
NUT LOCK
5/16
(2)
BOLT WH
5/16x1 3/4
(3)
NUT BARREL
WH 5/16x7/8
(3)
23
