Backyard 1705012 - Page 26

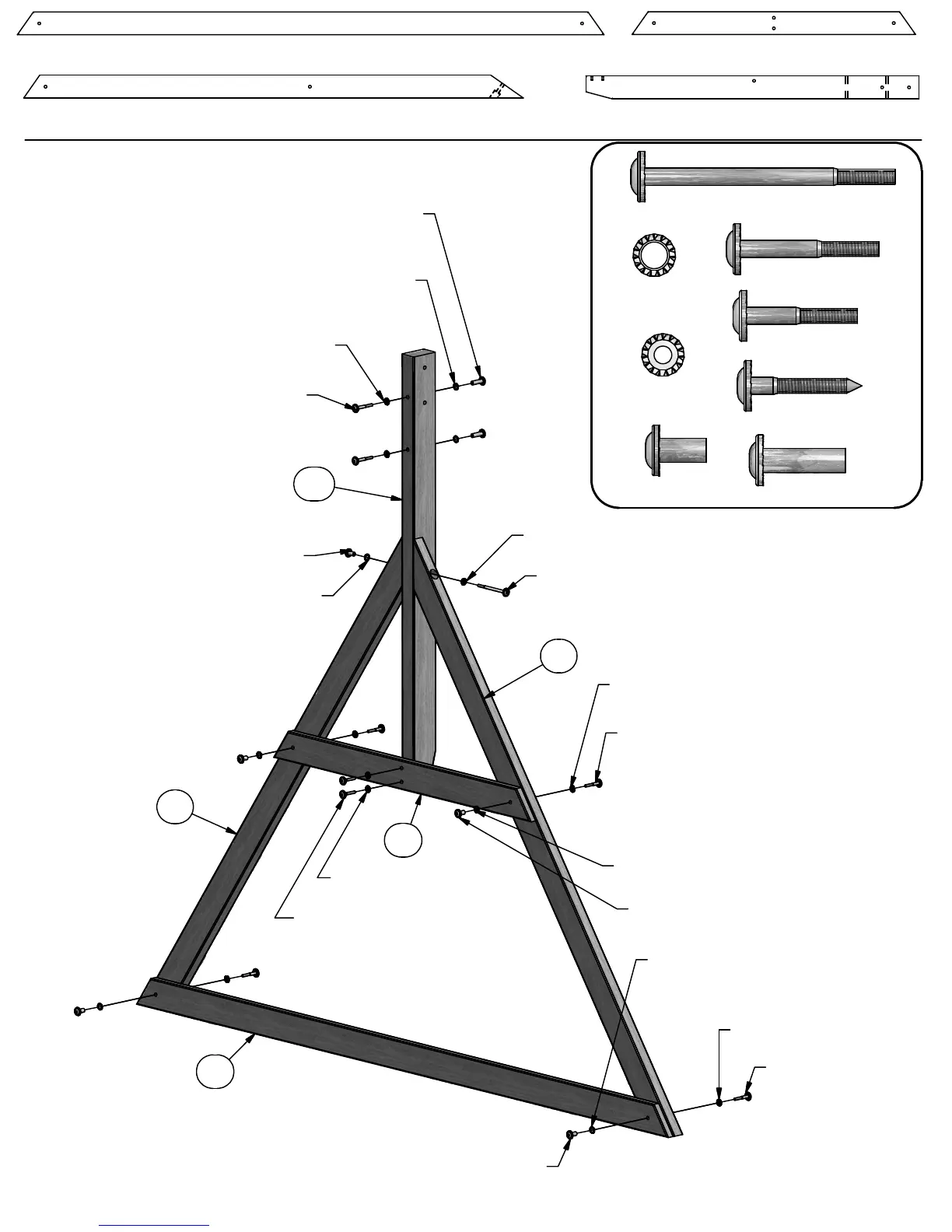

SWING BEAM ASSEMBLY
STEP 2
BOLT WH 5/16x2
(2 PLCS)
WASHER LOCK EXT 8x19
(2 PLCS)
WASHER LOCK EXT 12x19
(2 PLCS)
NUT BARREL WH 5/16x7/8
(2 PLCS)
BOLT WH 5/16x2
(2 PLCS)
WASHER LOCK EXT 8x19
(2 PLCS)
WASHER LOCK EXT 12x19
(2 PLCS)
NUT BARREL WH 5/16x7/8
(2 PLCS)
LAG SCREW WH 5/16x2
(2 PLCS)
WASHER LOCK EXT 8x19
(2 PLCS)
BOLT WH 5/16x4 1/2
(1 PLC)
WASHER LOCK EXT 8x19
(1 PLC)
NUT BARREL WH 5/16x7/8
(1 PLC)
WASHER LOCK EXT 12x19
(1 PLC)
NUT BARREL WH 5/16x1 1/2
(2 PLCS)
WASHER LOCK EXT 12x19
(2 PLCS)
WASHER LOCK EXT 8x19
(2 PLCS)
BOLT WH 5/16x2 1/2
(2 PLCS)
H80 - GROUND BOARD - W4L07155
1"x3 3/8"x87 3/8" (24x86x2218)
(1)
E77 - ANGLE BRACE - W4L07154
1 3/8"x3 3/8"x74 3/8" (36x86x1890)
(2)
H79 - END SUPPORT - W4L06923
1"x3 1/2"x42" (24x86x1072)
(1)
W71 - SWING BEAM SUPPORT - W4L06963
2"x3 3/8"x49 5/8" (50x86x1260)
(1)
NUT BARREL
WH 5/16x7/8
(5)
WASHER
LOCK EXT
12x19
(7)
BOLT WH
5/16x2
(4)
WASHER
LOCK EXT
8x19
(9)
LAG SCREW
WH 5/16x2
(2)
BOLT WH
5/16x4 1/2
(1)
BOLT WH
5/16x2 1/2
(2)
NUT BARREL
WH 5/16x1 1/2
(2)
W71
E77
H79
E77
H80
