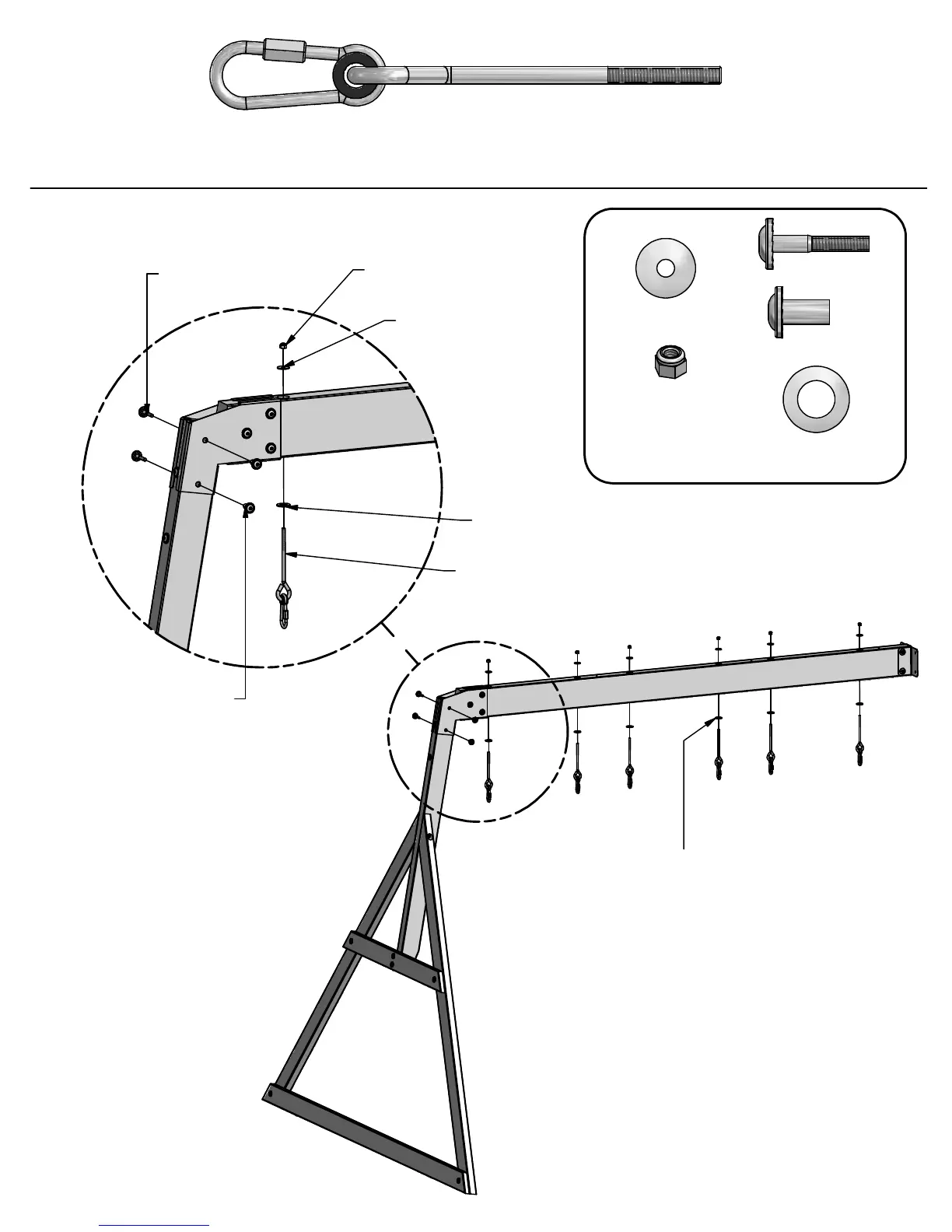

SWING BEAM ASSEMBLY
STEP 3
NUT LOCK 5/16
(6 PLCS)
WASHER FLAT 8x27
(6 PLCS)
WASHER SAFETY 17x30
(6 PLCS)
9 1/2" SWING HANGER QUICK LINK
(6 PLCS)
NUT BARREL WH 5/16x7/8
(2 PLCS)
BOLT WH 5/16x1 3/4
(2 PLCS)
WASHER
FLAT 8x27
(6)
NUT LOCK
5/16
(6)
BZ - 9 1/2" SWING HANGER QUICK LINK - H100099
(6)
WASHER
SAFETY
17x30
(6)
NUT BARREL
WH 5/16x7/8
(2)
BOLT WH
5/16x1 3/4
(2)
NOTE: AS YOU TIGHTEN MAKE SURE SAFETY WASHERS
GET WEDGED BETWEEN THE BOARD AND SWING HANGER.
