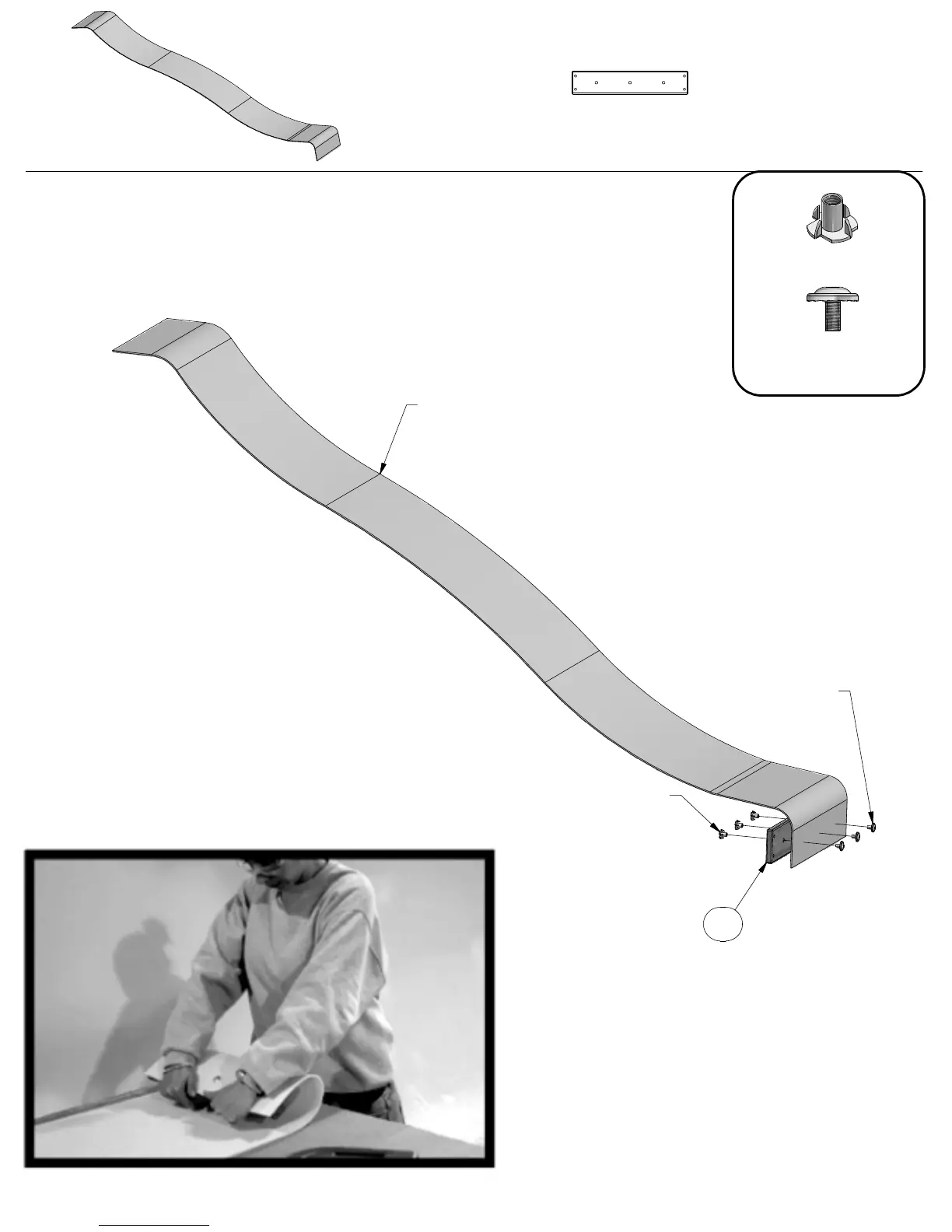

SLIDE ASSEMBLY
STEP 1
TIP: PREBENDING THE ENDS WILL EASE ASSEMBLY.
BOLT WH
5
/16x1/2
(3)
EM - SLIDE BED 8' YELLOW - A100056
(1)
M77 - SLIDE BRACE - W100544
5
/8"x3 3/8"x17 1/4" (16x86x438)
(1)
USE 'M77' SLIDE BRACE AS A
T
EMPLATE AND USE A 3/8" DRILL BIT
FOR DRILLING BOTTOM HOLE PATTERN
IN SLIDE BED. BE SURE TO PLACE
SLIDE BRACE UP 1/4" FROM BOTTOM
EDGE OF SLIDE BED BEFORE MARKING
HOLE PATTERN.
M77
SLIDE BED 8' YELLOW
(1 PLC)
T-NUT 5/16
(3 PLCS)
BOLT WH 5/16x1/2
(3 PLCS)
T-NUT 5/16
(3)
