Backyard 1705012 - Page 48

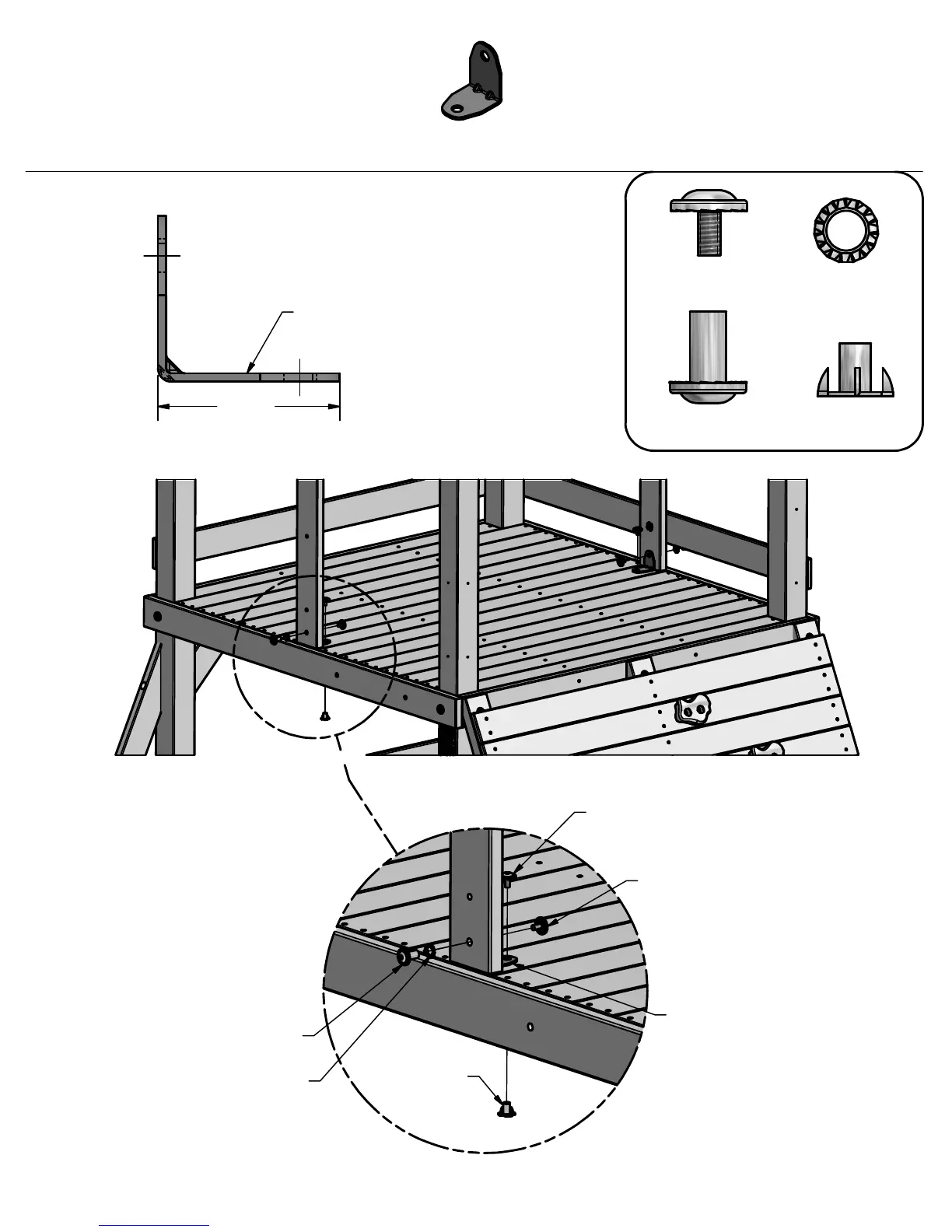

STEP 19
T-NUT 5/16 (2)
NUT BARREL WH 5/16x7/8
(2 PLCS)
WASHER LOCK EXT 12x19
(2 PLCS)
T-NUT 5/16
(2 PLCS)
BOLT WH 5/16x1/2
(2 PLCS)
BOLT WH 5/16x1/2
(2 PLCS)
L BRACKET 2.5x38x50x55
(2 PLCS)
TZ - L BRACKET 2.5x38x50x55 - A100340
(2)
NUT BARREL
W
H 5/16x7/8
(2)
BOLT WH
5/16x1/2
(4)
WASHER
LOCK EXT
12x19
(2)
2 3/16
S
H
O
R
T
S
I
D
E
LONG SIDE
LONG SIDE TO THE
FLOOR BOARD.
46
