BAD BOY TRACTOR
The brake pedal’s play increases as it is
used for an extended period of time. If its
play is excessive, adjust it.
<Adjustment>
①
Unscrew the lock nut and turn the ad-
justing nut to adjust the play(left and
right).
②
Turning it counterclockwise increases
the play while turning it clockwise de-
creases the play.
③
After adjustment, tighten the lock nut
rmly.
Check and adjust the fan belt’s tension
periodically.
①
Unscrew the alternator mounting bolt
slightly and move the alternator to ad-
just the tension.
②
Check the belt’s tension. Press the
middle of the belt with 13.2 ~ 15.4 Ib
(6 ~ 7 kg) of force. It is okay when the
belt is deected for 0.28 ~ 0.35 in. (7 ~
9 mm).
▶

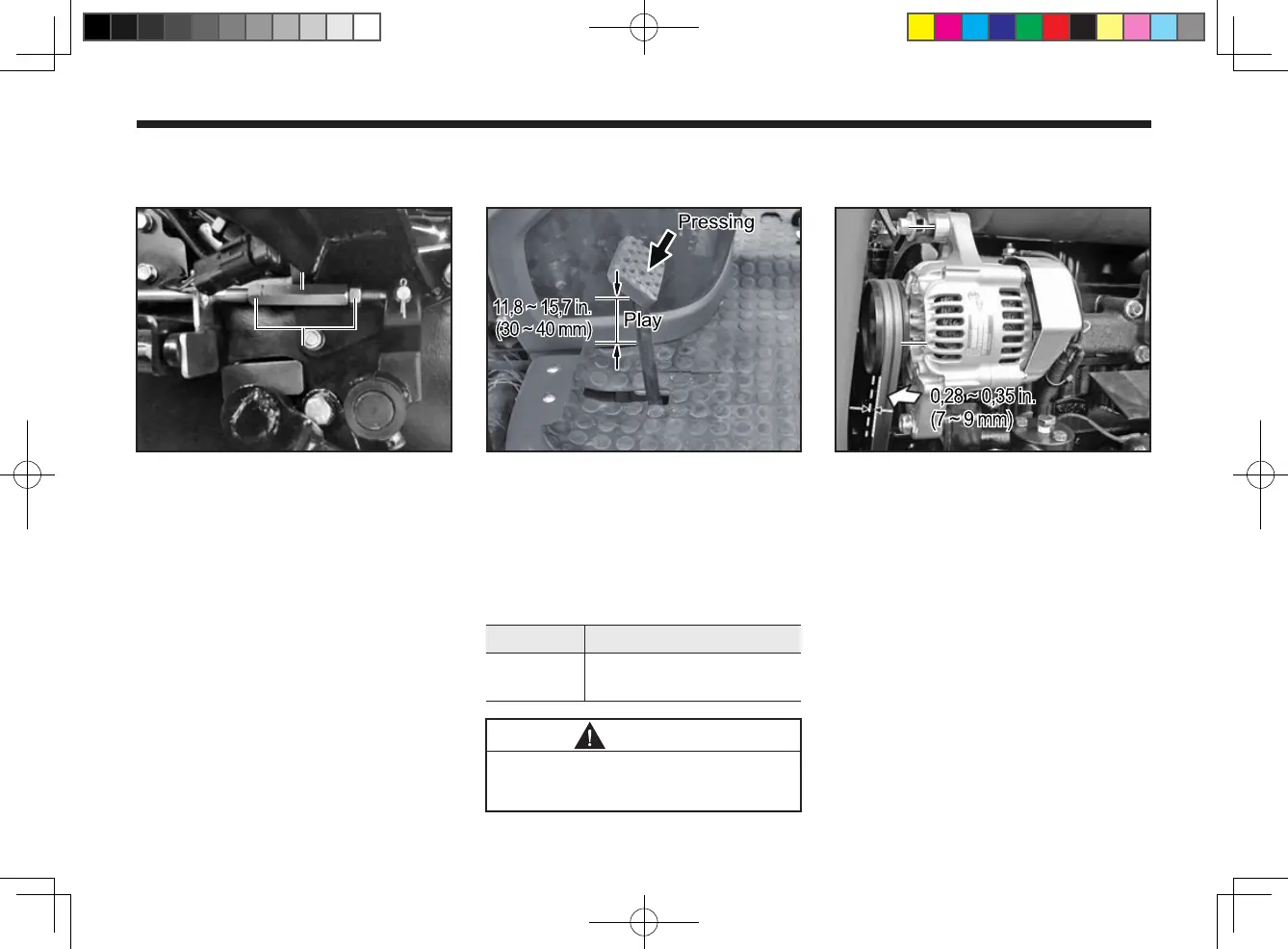

Brake pedal play
Depress the pedal lightly with a hand
to check its play.
DIVISION SPECIFIED VALUE
Play
11.8 ~ 15.7 in.
(30 ~ 40 mm)
CHECK AND ADJUST EACH PART
BRAKE PEDAL FAN BELT
(1) Turn Buckle (2) Lock Nut (1) Mounting Bolt (2) Fan Belt
1
1
2
2
WARNING

After adjustment, conrm the op-
erating state.
1
1
2
2
BB1022H.indb 20BB1022H.indb 20 2021-06-28 오후 5:53:292021-06-28 오후 5:53:29
