BAD BOY TRACTOR
•
To prevent the locker shaft
from unexpected movement,
turn "OFF" the traction (draft)
control before attaching the
implement to the hitch.
WARNING
4. Detach the center link from the x-
ing bracket.
5. Attach the center link to the top
mast of the implement.
6. Adjust the length of the center link
and lower link if required.

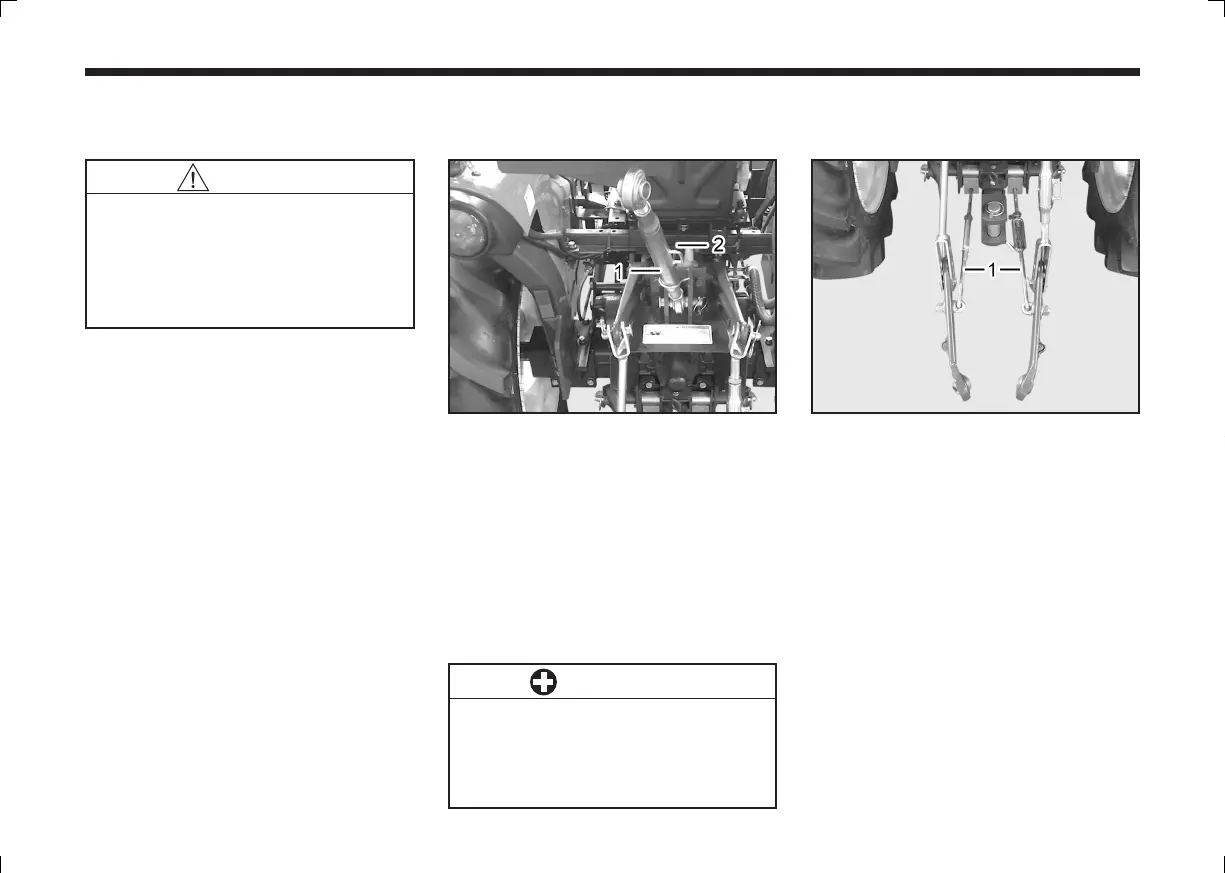

(1) Center link (2) Fixing bracket
IMPORTANT
•
Do not extend the center link
excessively out of the lim-
it. The center link's body or
thread can be damaged.
ADJUSTMENT OF CHECK BAR
1. For implements such as a plow
and disc harrow, adjust the length
so that it can be moved for 5 - 6
cm sideways.
2. For implements such as a rotary
tiller and mower, adjust the length
so that it cannot be swayed side-
ways.
(1) Check bar
