Bad Boy 3026H 2021 - Preheat Indicator; Fuel Gauge; Tachometer;Hour Meter

4
-
11
OPERATION DESCRIPTION
4

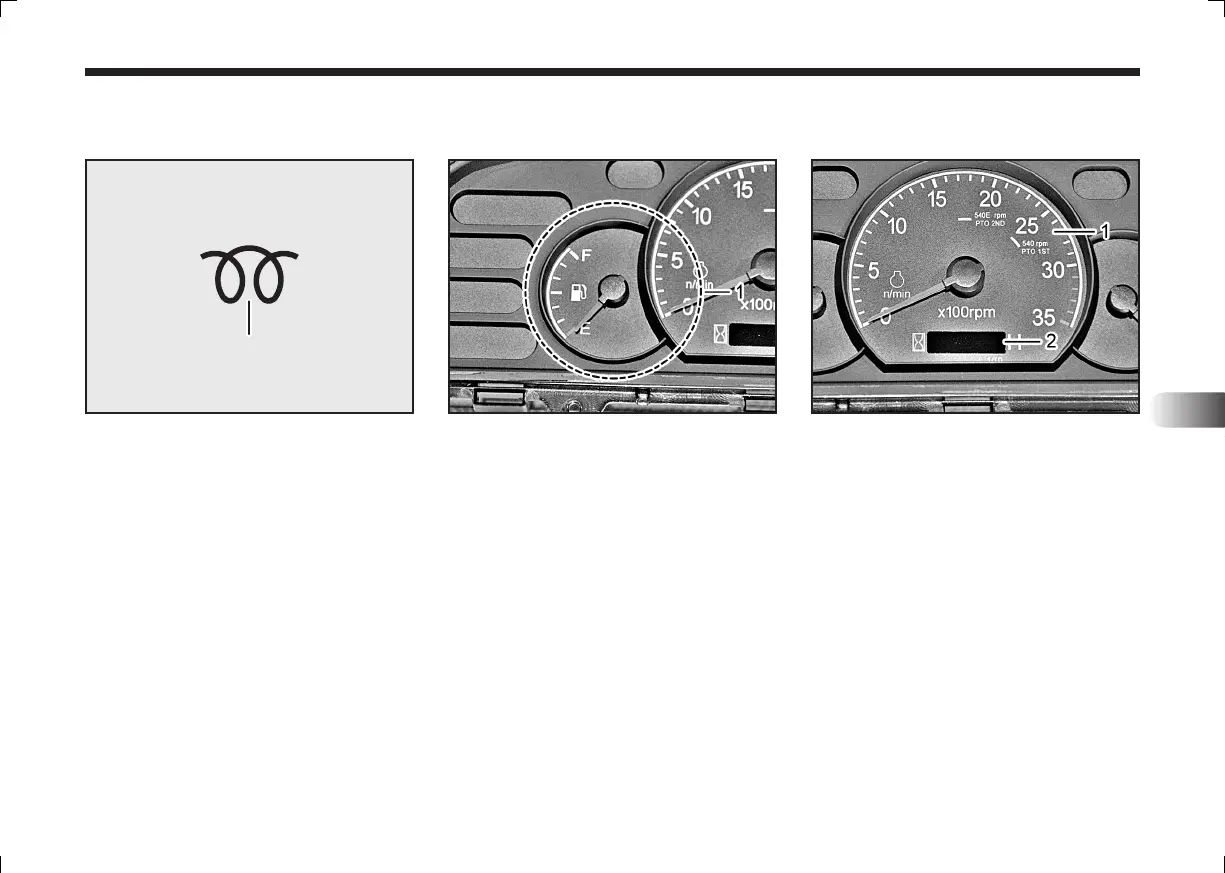

TACHOMETER/HOUR METER
The tachometer indicates the engine
rpm and the hour meter indicates the
total run hour of the tractor.
(1) Tachometer (2) Hour Meter
PREHEAT INDICATOR
The 4WD indicator comes on when the
4WD lever is placed in "ON" position.
(1) Preheat Indicator
FUEL GAUGE
This indicates the remaining fuel level.
Immediately ll the fuel tank if the nee-
dle reads the red area.
(1) Fuel Gauge
1
1
1
