Bad Boy 550cc - Jack-Up Point

Periodic Service
10
-4

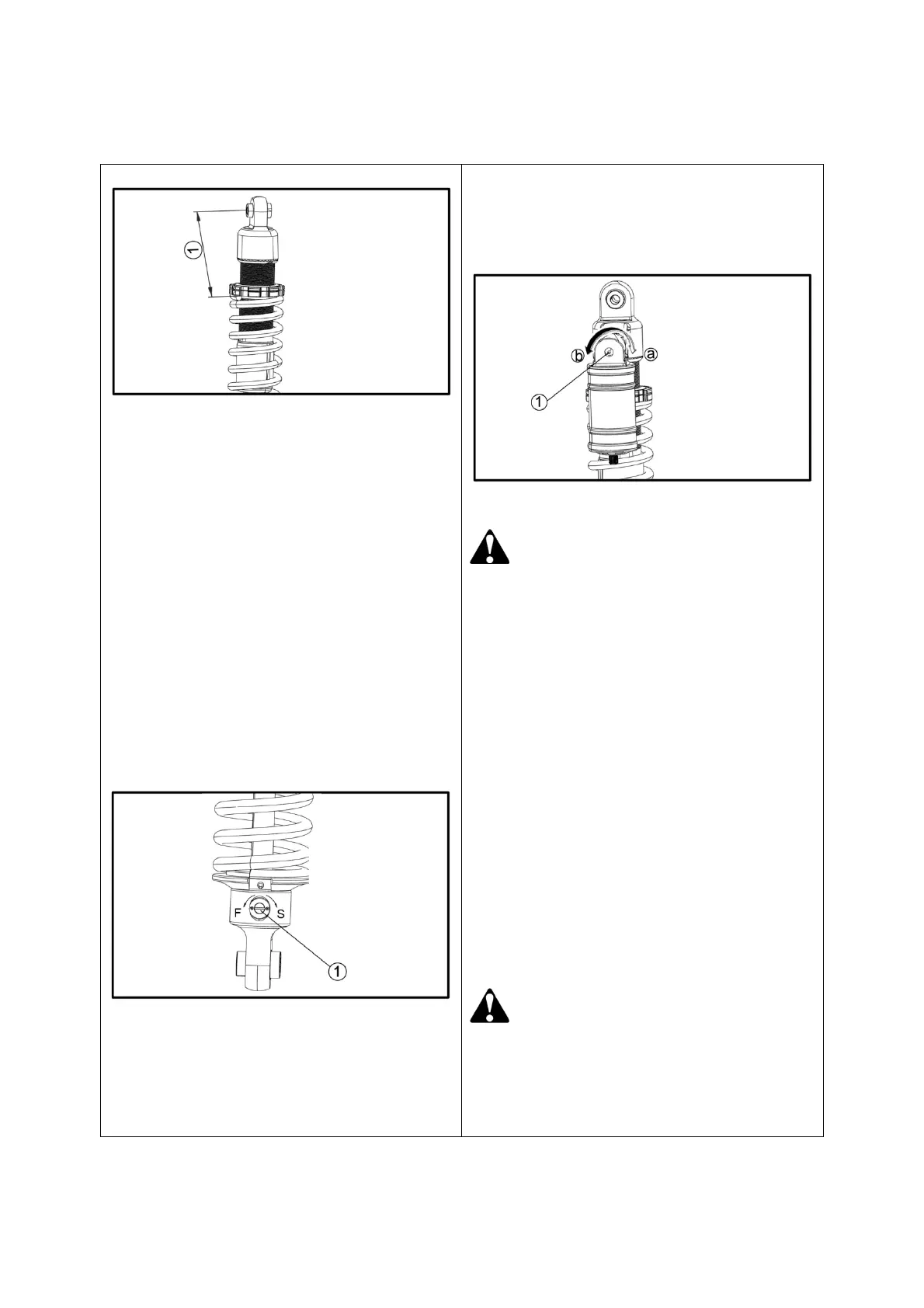

1.
Distance A
3. Tighten the locknut.
NOTE
Alway
s tighten the locknut against the
adjusting nut, and then tighten it to the
specified torque.
■
Rebound Damping Force
T
urn the rebound damping force adjusting
screw in direction S to increase the rebound
dampin
g force and thereby harden the
damping, and in direction F to decrease the
rebound damping force and thereby soften the
damping
.
1.Rebound damping force adjusting screw
■
Compression Damping Force
T
urn the compression damping force adjusting
screw (use 3.0 allen wrench) in direction ⓐ to
increase the compression damping force and
thereby harden the damping, and in direction
ⓑ to decrease the compression damping force
and thereby soften the damping
.
①
Compression damping force adjusting screw
① Compression damping force adjusting screw
WARNING
 Suspension components become hot
during operation. Never touch the
compression damping force adjusting
screw, the rebound damping force
adjusting screw or the oil reservoir
with your bare hand or skin
until
suspension
components have cooled
.
 Al
ways adjust the shock absorber
assemblies on the left and right side to
the same setting. Uneven adjustment
can cause poor handling and loss of
stability, which could lead to an
accident.
JACK-UP POINT
WARNING
To avoid personal injury, death or vehicle
damage:
 Do not work under the vehicle unless it
is secured by safe stands or suitable blocking.
