Bad Boy RENEGADE Series User Manual

Parts List
ITEM QTY PART NUMBER DESCRIPTION
1 2 013-5201-00
3/8" Flange Nut
2 14 013-6014-00 3/8" Hex Nut
3 1 013-7021-00 5/8 Std NC Nylock Nut
4 4 013-8049-00
5/16" Nylon Flange Nut
5 12 013-8050-00
1/2-13 Nylon Flange Nut
6 1 014-5052-00 2019 61" Outlaw Gen2 Pulley Cover Left
7
1 014-5053-00 2019 61" Outlaw Gen2 Pulley Cover Right
8 1 018-0046-00
1/2-13 x 8 Hex Bolt Grade 5
9 2 018-2007-00 5/16-18 x 1 GR 5 Hex Bolt Zinc
10 3 018-2018-00 1/2 x 3 1/2 Flange Bolt Grade 8
11 1 018-4707-00
4" 3/8-16 Eye Bolt
12 4 018-5019-00 1/2" x 4" Bolt (Grade 8)
13 12 018-5040-00 3/8" x 1 1/4" Hex Bolt
14 2 018-5250-00
3/8" x 3/4" Hex Bolt
15 3 018-6019-00
1/2"-20 x 1 1/2 - Grade 5 Fine Thread Bolt
16 3 018-6020-00 5/8" x 1 1/2" Grade 8 Hex Bolt (Fine)
17 1 018-6059-00 5/8" x 2 1/2" Grade 5 Hex Bolt (Coarse)
18 4 018-7050-00
1/2" x 4 1/2" Bolt
19 2 018-8066-00 5/16" x 7/8" Carriage Bolt
20 3 019-5007-00 1/2" Lock Washer
21 12 019-5037-00
3/8" Lock Washer
22 3 019-5038-00 5/8'' Flat Washer
Parts List
ITEM QTY PART NUMBER DESCRIPTION
23 3 019-6020-00
1/2" Belleville Washer
24 4 019-6050-00 .360 ID Plastic Washer-Black
25 6 022-1001-00 2019 Deck Wheel
26 2 025-5338-00
.502 ID X .750 OD X 1.500 Long Spacer
27 1 025-5339-00
1 3/4" Pulley Spacer
28 1 025-7020-00 5/8" x 1/" Collar W/One Set Screw
29 1 029-7036-00 REVISED TRIM BUMPER_20180226
30 3 030-0050-00
5/16 Set Screw
31 3 033-6004-00 6 1/4" Drive Pulley
32 3 033-7201-25 5-3/4 Idler Pulley
33 1 034-2030-00
2019 Outlaw Gen2 Deck Spring
34 3 037-4000-00 OUTLAW SPINDLE ASSEMBLY
35 3 038-6080-00 61 inch Fusion Blade
36 1 039-0144-00 2019 Deck Eye Bolt Tab
37 4 039-2125-17 Deck Hangar Assembly
38 1 039-6946-17 2019 Renegade Deck Idler
39 1 041-0222-00 Deck Belt for 61" Renegade
40 3 042-6030-00
1/4" x 1" Key
41 4 045-6043-00 5/16" Knob
42 2 048-7000-00 Turnbuckle
43 1 060-6151-19
2019 Sloped 61" Deck
44 1 210-7000-98 2019 Outlaw Gen2 Chute Assembly

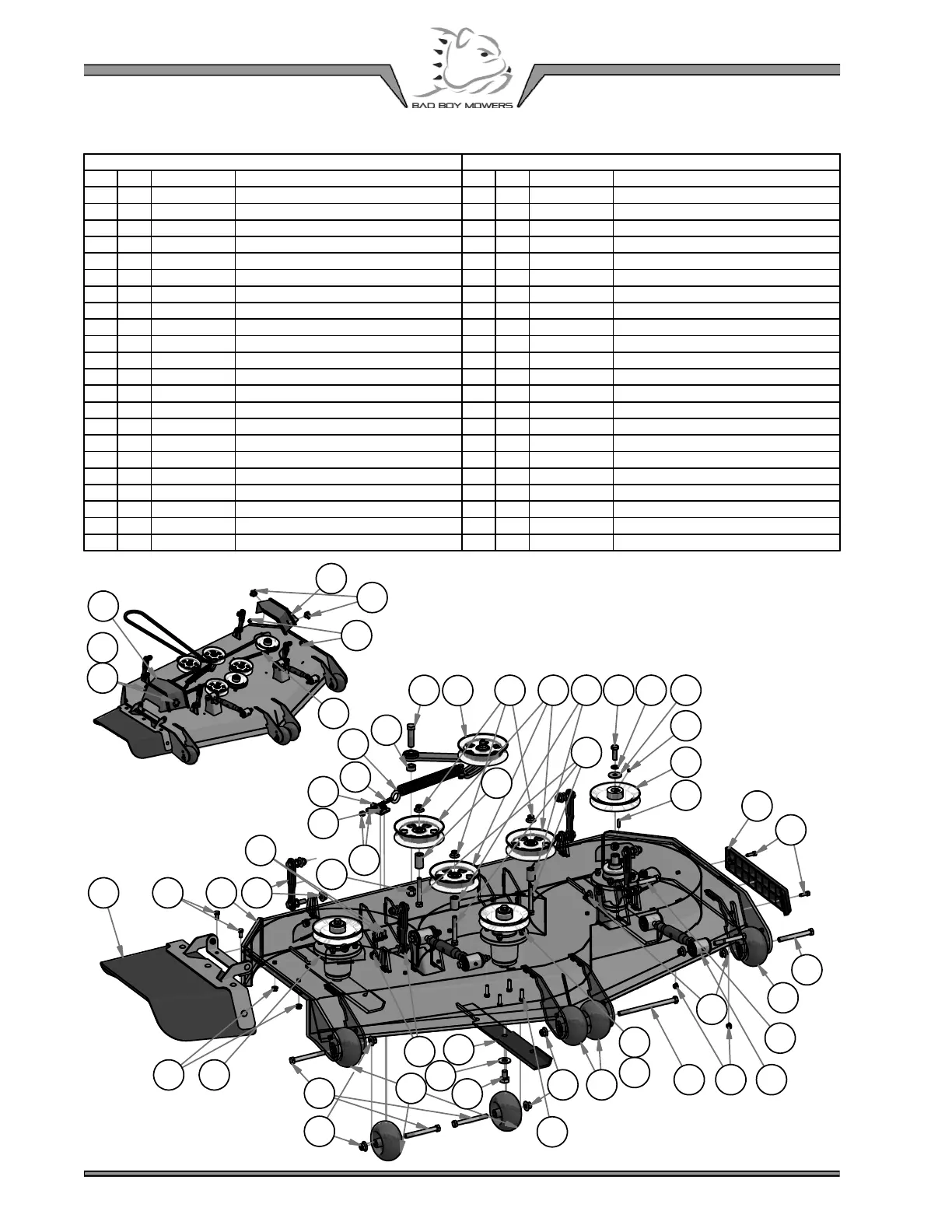

PARTS SECTION: 61" DECK ASSEMBLY
PAGE 32
44 14
1
43 37
34
18
25
5
16
22
35
13
8
4
42
12
5
29
9
18
25
40
31
30
2320
155
32 26
10
27
17
38
28
33
11
2
4
3
19
37
21
2
36
5
25
6
39
41
7
41
24
24

Bad Boy RENEGADE Series Specifications

General

Spindle Material	Cast Iron
Horsepower	37 HP
Cutting Width	72 inches
Transmission	Hydro-Gear ZT-4400
Cutting Height	1.5 - 5 inches
