Bad Boy RENEGADE Series User Manual

Parts List
ITEM QTY PART NUMBER DESCRIPTION
13 2 013-5202-00
3/8" Nylock Flange Nut
14 3 013-5300-00 1/2" Flange Nut
16 1 013-7018-00 1/2" Hex Nut
21 9 013-8050-00
1/2-13 Nylon Flange Nut
23 2 013-9001-00
1/4-20 Hex Flange Nuts Zinc w/Serrations
24 2 013-9002-00 5/16" Flange Nut
46
4
017-9075-00
Pillow Block Assembly
46.1 4 017-9000-00
Two Piece Pillow Block (Male)
46.2 4 017-9050-00 Two Piece Pillow Block (Female)
46.3 4 017-9025-00 Two Piece Pillow Block Strap
53 1 018-0043-00
1/2 x 2-1/2 Carriage Bolt
71 1 018-2050-00 10mm Damper Ball Stud-Steering
72 1 018-2055-00 10mm Damper Ball Stud-XP Linkage
73 4 018-3001-00
5/8'' x 5/8'' Shoulder Bolt
75 4 018-4010-00
1/2" Nylcock Nut (1/2 Jam)
76 1 018-4702-00 1/4-20 x 1-1/4 GR 5 Hex Bolt
79 8 018-5019-00 1/2" x 4" Bolt (Grade 8)
81 2 018-5043-00
3/8" x 1 1/4" Carriage Bolt
101 1 019-0007-00 .517 Square Hole Round Washer
108 6 019-6017-00 .630 ID Plastic Washer
115 3 019-8054-00
.505 Nylon Spacer
127 1 025-0002-00 5/8" Split Collar
Parts List
ITEM QTY PART NUMBER DESCRIPTION
129 1 025-0025-00
MZ Deck Idler Spacer
136 1 026-0026-00 Knurled Pedal
141 1 028-0008-00 Dial Rod Plunger
142 1 028-0015-19
2019 Outlaw Gen2 Deck Height Dial Rod Assy
142.1 1 028-0015-00
2019 Outlaw Gen2 Dial Rod
142.2 1 026-1101-00 2019 Deck Height Cam
142.3 1 019-5029-00 3/8" Flat Washer
142.4 1 018-4011-00
3/8-24 Nylon Insert jam locknut
143 1 028-0026-00 2019 Outlaw Actuator - Front
144 1 028-0027-00 2019 Outlaw Actuator - Rear
147 1 028-6075-00 2019 Actuator Linkage - Right
148 1 028-6076-00 2019 Actuator Linkage - Left
158 1 031-0120-00 Foot Lift Upright Lever
159 1 031-0125-00
2019 Outlaw Deck Travel Lock
166 4 032-5052-00
Bronze Bushing - SF - 2024-8
173 1 034-1025-00 Brake Spring
187 1 044-4000-00 Seat Braket Pin
188 1 045-6044-00
Foot Pedal Knob 1/2-13
225 1 069-4011-00 Travel Lock Rubber Grip
230 1 070-5374-19 2019 Horizontal Diesel Frame
255 1 087-6100-00
250lb Gas Spring - 61" Deck
PARTS SECTION:
PAGE 35
79
75
144
143
46.3
46.1
46.2
75
46
108
148
73
166
108
147
21
13
188
136
158
81
21
24
72
79
79
142.1142
108
142.2
142.3
142.4
21
14
159
115
76
23
129
14
23
79
141
16
108
127
173
187
225
255
101
53
21
71
24

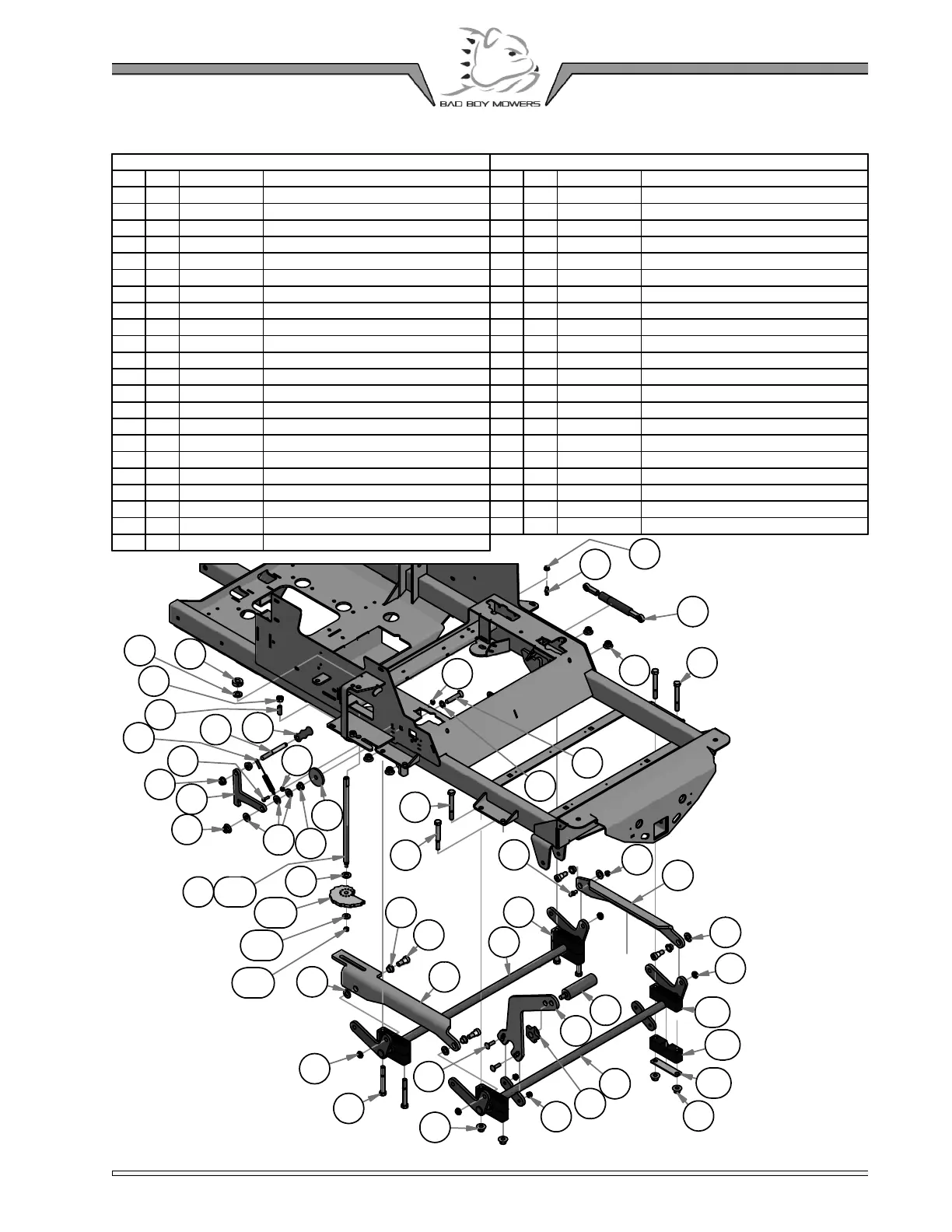

ACTUATORS & TRAVEL LOCK

Bad Boy RENEGADE Series Specifications

General

Spindle Material	Cast Iron
Horsepower	37 HP
Cutting Width	72 inches
Transmission	Hydro-Gear ZT-4400
Cutting Height	1.5 - 5 inches
