Bad Boy RENEGADE Series User Manual

Parts List
ITEM QTY PART NUMBER DESCRIPTION
3 8 010-1050-00
Caster Bearing 2016 - 1641 Bearing
21 2 013-8050-00 1/2-13 Nylon Flange Nut
25 4 013-9004-00 1" Fine Thread 1/2 Nylock Nut
28 2 014-2025-00
2017 Bearing Cover
51 4 018-0026-00
1-14 x 5.5 Hex Bolt Grade 8 Zinc Yellow
59 2 018-1055-00 1/2" x 3/4" Hex Bolt
65 2 018-2009-00 1/2-13 x 1" Stud
92 2 018-7010-00
1/2" x 9" GR 5 Hex Bolt
107 2 019-5702-00 1/2" Washer (Grade 8)
119 2 022-0003-00 2019 15x6.00-6 Non Pneumatic Black Front Assembly
119.3 4 022-7010-00
1-3/4" Bearing-Large Bore Front Rim
Parts List
ITEM QTY PART NUMBER DESCRIPTION
121 2 023-0004-00 2019 Rebel, Rogue, Renegade Front Fork
128 4 025-0003-00 2016 Front Bearing Spacer
133 2 025-5202-00 Front Wheel Spanner
151 1 029-8000-00 2017 XP Bumper
154 2 030-7039-00
1/4" x 1 1/2" Self Tapping Screw
155 4 030-7042-00 5/16 x 3/4 washer head type F screw
169 2 032-9002-00
Vibration Mount- Red Dot
207 6 058-1000-00
Spacer, 1x1.375x.25
230 1 070-5374-19 2019 Horizontal Diesel Frame
267 1 250-0032-00 2019 Front I-Beam Left
268 1 250-0033-00 2019 Front I-Beam Right
PARTS SECTION:
PAGE 34
51
119
21
92
119.3
119.3
267
65
169
155
155
151
154
3
121
207
3
128
268
65
128
3
25
51
207
230
107
59
169
3
25
28

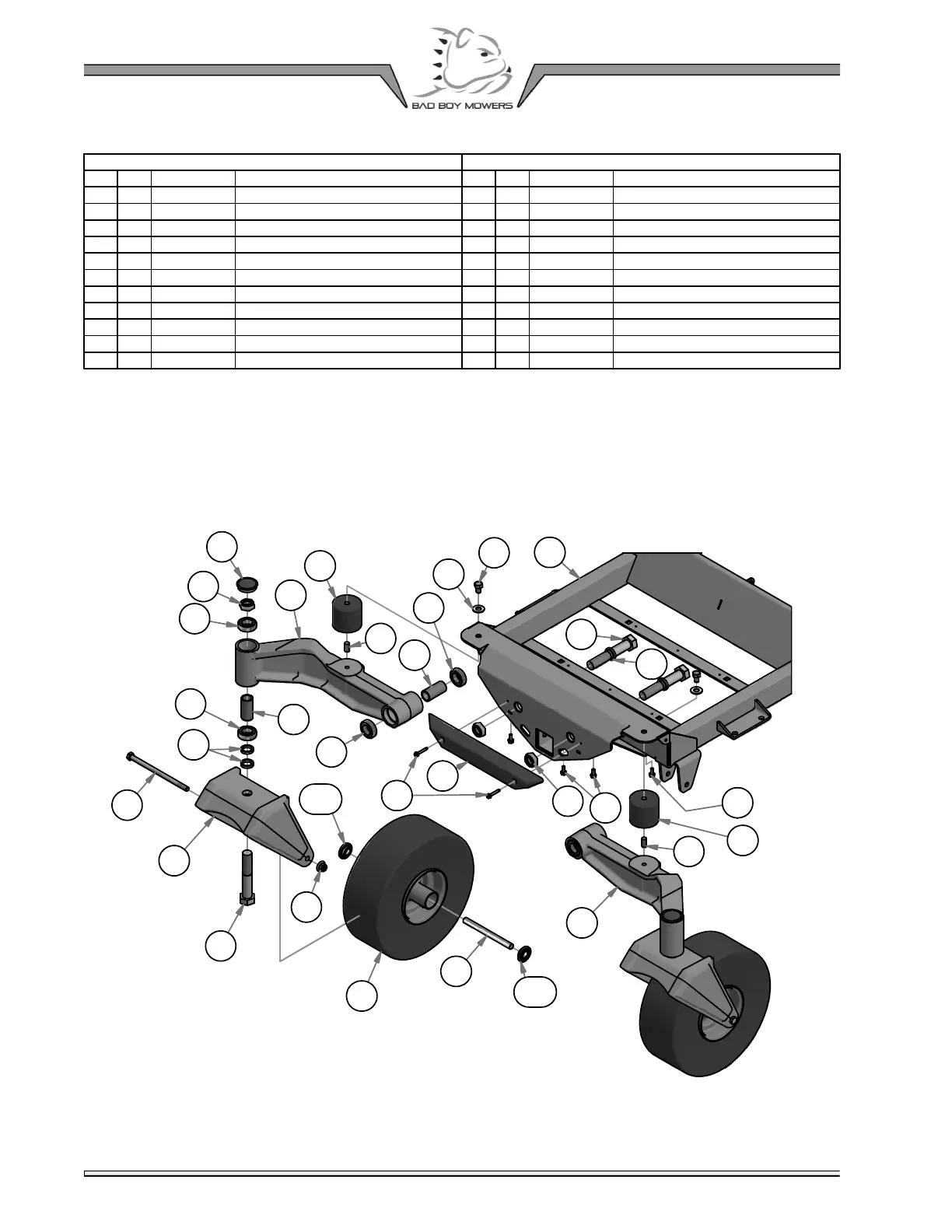

FRONT END
133
