037-4000-00
OUTLAW SPINDLE ASSEMBLY
039-2125-17
Deck Hangar Assembly
039-6946-17
2019 Renegade Deck Idler
048-7000-00
Turnbuckle
210-7000-98
2019 Outlaw Gen2 Chute Assembly
037-4000-00 Parts List
DESCRIPTIONPART NUMBERQTYITEM
4000 Series Spindle Housing
037-4000-0111
4000 Series Spindle Spacer037-4002-0012
Locking Collar w/ 1/4"-20 Set Screw037-9050-0013
Spindle Dust Cap
037-8002-0024
Spindle Shaft
037-6026-0015
Bearing - 6206037-6023-0046
039-2125-17 Parts List
DESCRIPTIONPART NUMBERQTYITEM
1/2" Flange Nut
013-5300-0027
1/2-13 Nylon Flange Nut
013-8050-0028
1/2-13X 2-1/4 GR Hex Bolts 018-6037-0029
.505 Nylon Spacer019-8054-00
4
10
Deck_Hanging_Tab039-2125-00111
048-7000-00 Parts List
DESCRIPTIONPART NUMBERQTYITEM
Hex Nut, 11/16-12
013-0007-00119
Hex Nut, 11/16-12 Left Handed013-0008-00120
1/4" Press in Grease Fitting024-6034-00221
Bushing032-2000-00422
Sleeve
032-2001-00223
2015 Outlaw Turnbuckle Body048-7020-00124
Turnbuckle End Right-Handed Thread
048-7021-00125
Turnbuckle End Left-Handed Thread
048-7022-00126
210-7000-98 Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
5/16" Nylon Flange Nut013-8049-00
7
27
5/16" x 1 1/4" Carriage Bolt018-4703-00
5
28
5/16" x 7/8" Carriage Bolt
018-8066-00229
.360 ID Plastic Washer019-6042-00230
2019 Upper Chute Bracket039-4893-00131
2019 Lower Chute Bracket
039-4894-00132
2019 Chute Hanger
206-6018-00133
2019 Belted Chute with Logo210-6025-00134
039-6946-17 Parts List
DESCRIPTIONPART NUMBERQTYITEM
2019 Deck Tensioner039-6946-00112
1/2-13 Nylon Flange Nut013-8050-00113
3/8" Flange Nut013-5201-00214
3/8 x 1.5" Bolt
018-6012-00115
1/2" x 2 3/4" Hex Bolt
018-6036-00116
Spacer 3/4 OD x 1/2 ID x 3\4 Length025-5203-00117
5" Idler Pully
033-8050-00118

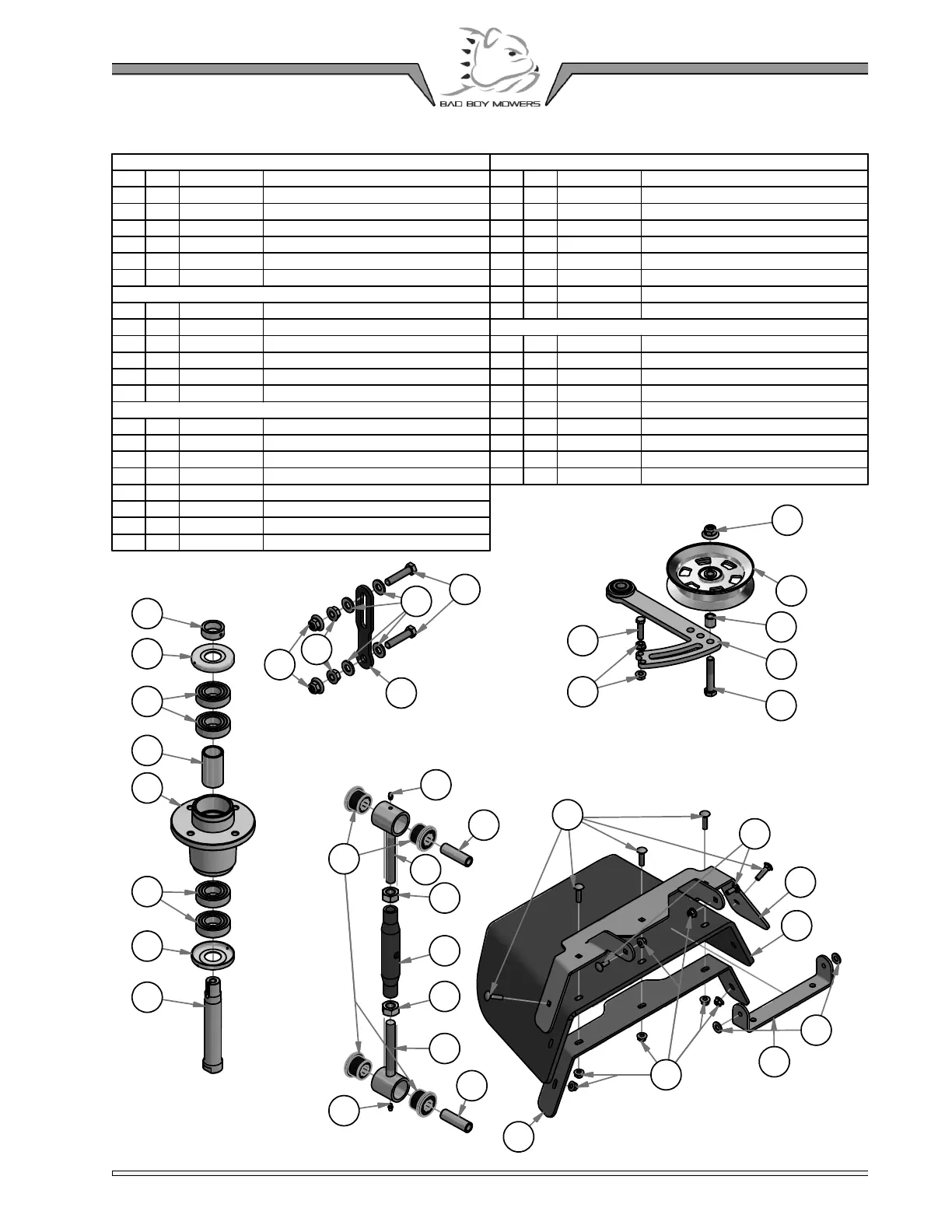

PARTS SECTION: DECK SUB-ASSEMBLIES
PAGE 33
3
4
6
2
1
6
4
5
10
9
7
8
11
18
12
22
21
23
19
25
24
20
21
23
34
32
33
30
27
31
28
29
26
13
17
16
14
15
